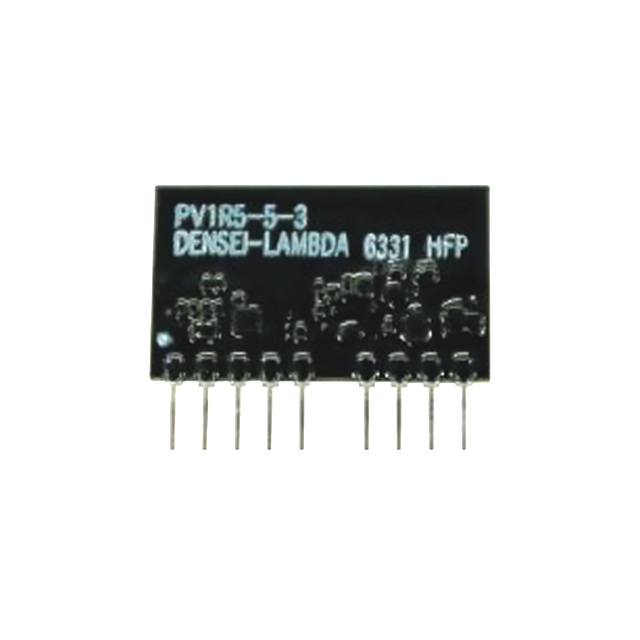

PV1R5 Series

Catalog

ISOLATED THROUGH HOLE DC/DC CONVERTER, 1.3 W, 1 OUTPUT, 3.3 V, 400 MA

Part	Applications	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Package / Case	Mounting Type	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Number of Outputs	Voltage - Output 1	Type	Features
TDK Corporation PV1R5-48-3.3	ITE (Commercial)	72 V	1.12 in	8.5 mm	18 mm	0.71 in	0.33 "	28.5 mm	500 V	-20 ░C	70 °C	77 %	10-SIP Module 9 Leads	Through Hole	36 V	400 mA	1	3.3 V	Isolated Module	OCP
TDK Corporation PV1R5-5-3.3	ITE (Commercial)	9 V	1.12 in	8.5 mm	18 mm	0.71 in	0.33 "	28.5 mm	500 V	-20 ░C	70 °C	77 %	10-SIP Module 9 Leads	Through Hole	4.5 V	400 mA	1	3.3 V	Isolated Module	OCP
