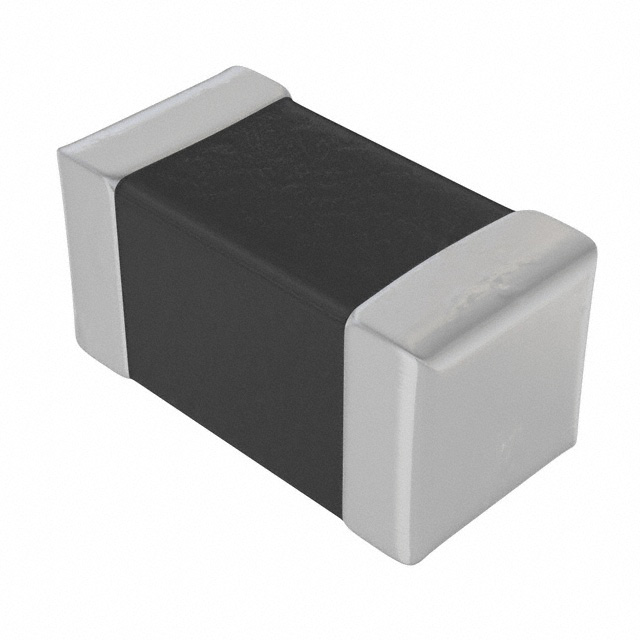

AIML-0603 Series

Catalog

RF INDUCTORS - SMD IND 2.20 UH 0.015 A 1150.00 MOHM

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR)	Mounting Type	Package / Case	Package / Case	Frequency - Self Resonant	Shielding	Type	Tolerance	Q @ Freq	Inductance	Material - Core	Inductance Frequency - Test	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	DC Resistance (DCR) [Max]	Q @ Freq [custom]	Q @ Freq [custom]
Abracon LLC AIML-0603-2R2K-T	0.95 mm	0.037 in	0603 (1608 Metric)	-55 C	125 °C	1.15 Ohm	Surface Mount	1608 Metric	0603	90 MHz	Shielded	Multilayer	10 %	10 MHz 35	2.2 µH	Ferrite	10 MHz	0.015 A	0.031 in	1.6 mm	0.8 mm	0.063 "
Abracon LLC AIML-0603-R10K-T	0.95 mm	0.037 in	0603 (1608 Metric)	-55 C	125 °C		Surface Mount	1608 Metric	0603	400 MHz	Shielded	Multilayer	10 %	15 25 MHz	100 nH	Ferrite	25 MHz	50 mA	0.031 in	1.6 mm	0.8 mm	0.063 "	500 mOhm
Abracon LLC AIML-0603-6R8K-T	0.95 mm	0.037 in	0603 (1608 Metric)	-55 C	125 °C		Surface Mount	1608 Metric	0603	40 MHz	Shielded	Multilayer	10 %		6.8 µH	Ferrite	4 MHz	5 mA	0.031 in	1.6 mm	0.8 mm	0.063 "	1.7 Ohm	35	4 MHz
