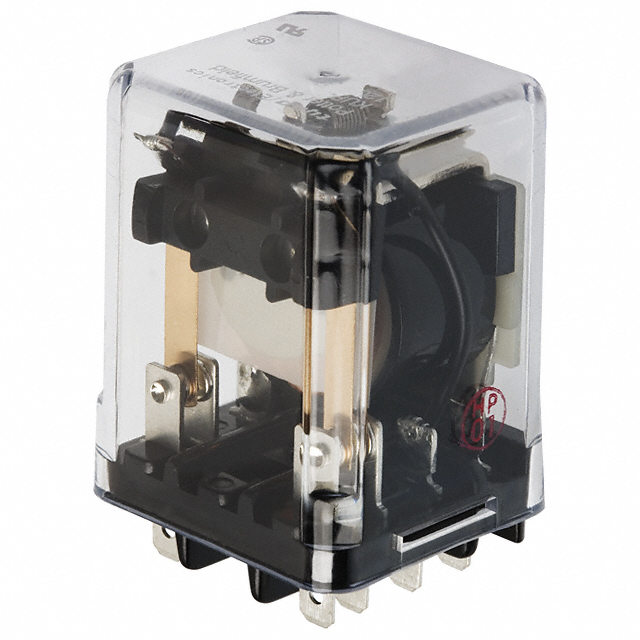

KUEP-11 Series
Manufacturer: TE Connectivity Potter & Brumfield Relays
Catalog
RELAY GEN PURPOSE DPDT 10A 120V
| Part | Contact Material | Operating Temperature [Max] [custom] | Operating Temperature [Min] [custom] | Coil Resistance | Switching Voltage | Coil Type | Approval Agency | Relay Type | Release Time | Coil Voltage | Mounting Type | Coil Current | Operate Time | Coil Insulation | Must Operate Voltage | Contact Rating (Current) | Load - Max Switching | Contact Form | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

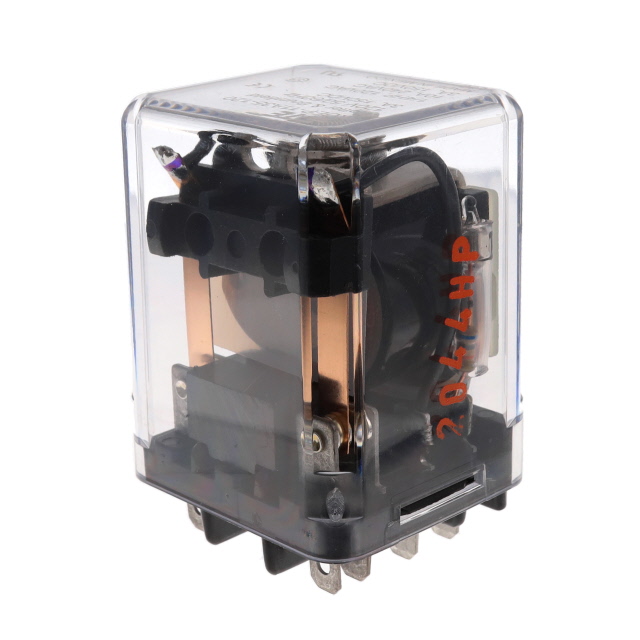

TE Connectivity Potter & Brumfield Relays | Silver Cadmium Oxide (AgCdO) | 45 °C | -45 °C | 1.7 kOhms | 150 VDC | Non Latching | CSA UR | General Purpose | 10 ms | 120 VAC | Chassis Mount | 70.6 mA | 15 ms | Class B | 102 VAC | 10 A | 1500 VA | DPDT (2 Form C) | Quick Connect - 0.187" (4.7mm) | ||

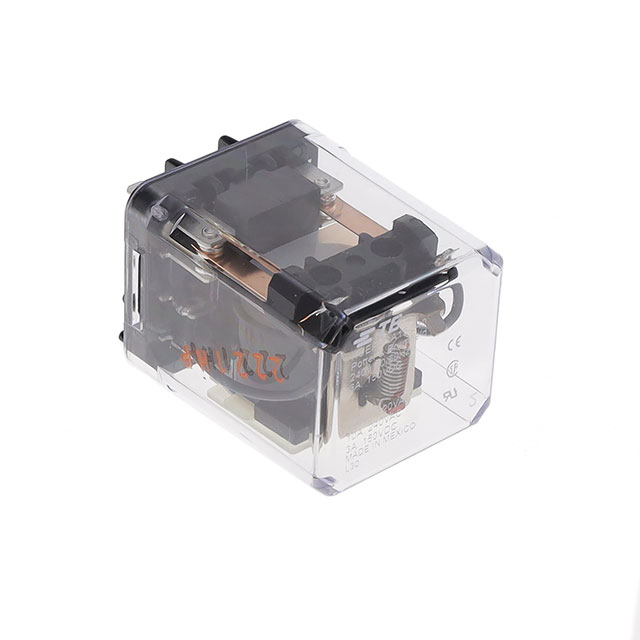

 TE Connectivity Potter & Brumfield Relays | Silver Cadmium Oxide (AgCdO) | 45 °C | -45 °C | 7.2 kOhms | 150 VDC | Non Latching | CSA UR | General Purpose | 10 ms | 240 VAC | Socketable | 12 mA | 15 ms | Class B | 204 VAC | 10 A | 1500 VA | DPDT (2 Form C) | Plug In Quick Connect - 0.187" (4.7mm) | ||
 TE Connectivity Potter & Brumfield Relays | Silver Cadmium Oxide (AgCdO) | 1250 Ohms | 150 VDC | Non Latching | CSA UR | General Purpose | 10 ms | 48 VDC | Socketable | 38 mA | 15 ms | Class B | 36 VDC | 10 A | 1500 VA | DPDT (2 Form C) | Plug In Quick Connect - 0.187" (4.7mm) | -45 °C | 70 °C | ||
 TE Connectivity Potter & Brumfield Relays | Silver Cadmium Oxide (AgCdO) | 45 °C | -45 °C | 1.7 kOhms | 150 VDC | Non Latching | CSA UR | General Purpose | 10 ms | 120 VAC | Socketable | 24 mA | 15 ms | Class B | 102 VAC | 10 A | 1500 VA | DPDT (2 Form C) | Plug In Quick Connect - 0.187" (4.7mm) | ||
 TE Connectivity Potter & Brumfield Relays | Silver Cadmium Oxide (AgCdO) | 45 °C | -45 °C | 1.7 kOhms | 150 VDC | Non Latching | CSA UR | General Purpose | 10 ms | 120 VAC | Socketable | 24 mA | 15 ms | Class B | 102 VAC | 10 A | 1500 VA | DPDT (2 Form C) | Plug In Quick Connect - 0.187" (4.7mm) | ||

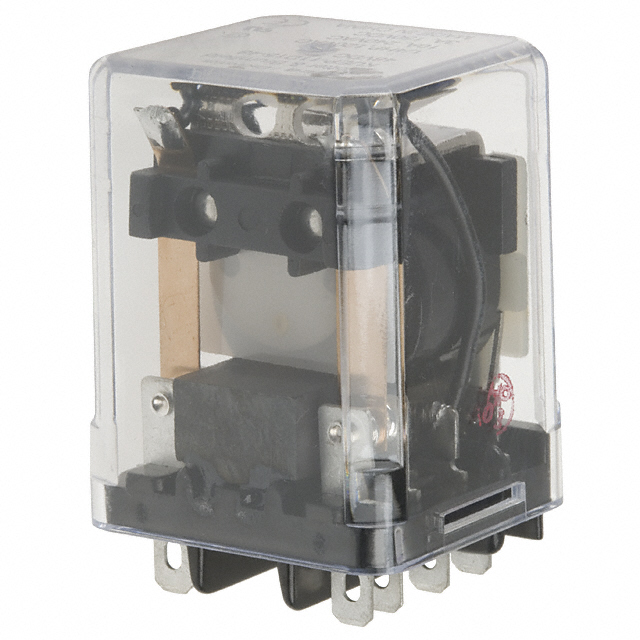

TE Connectivity Potter & Brumfield Relays | Silver Cadmium Oxide (AgCdO) | 1250 Ohms | 150 VDC | Non Latching | CSA UR | General Purpose | 10 ms | 48 VDC | Through Hole | 38 mA | 15 ms | Class B | 36 VDC | 10 A | 1500 VA | DPDT (2 Form C) | PC Pin | -45 °C | 70 °C |
