2285P Series
Manufacturer: Belden Inc.
Beta
⌘K

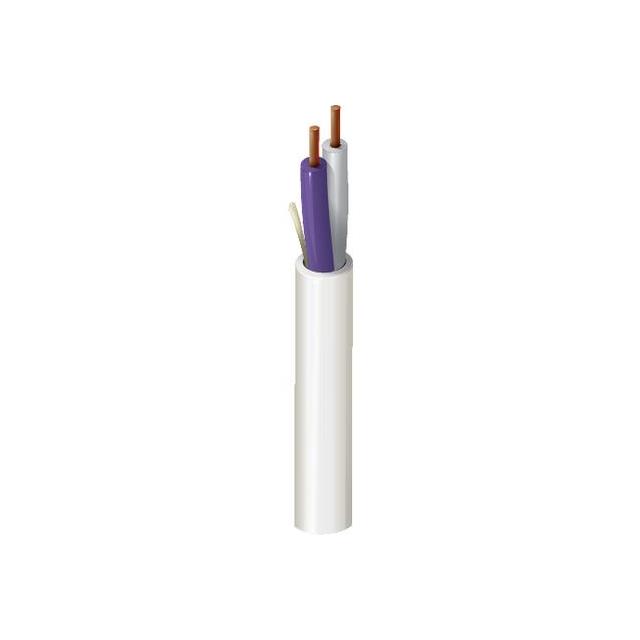

CABLE 2COND 18AWG WHITE
| Part | Length | Length | Conductor Insulation | Number of Conductors | Ratings | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Jacket Color | Conductor Strand | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Jacket (Insulation) Material | Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Features | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 304.8 m | 1000 ft | Low Smoke Poly-Vinyl Chloride (LSPVC) | 2 | UL Style CMP | 0.381 mm | 0.015 in | White | Solid | 3.73 mm | 0.147 " | Copper Bare | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 300 VDC | 75 ░C | 0 °C | 18 AWG | Rip Cord | Multi-Conductor |
Belden Inc. | 152.4 m | 500 ft | Low Smoke Poly-Vinyl Chloride (LSPVC) | 2 | UL Style CMP | 0.381 mm | 0.015 in | White | Solid | 3.73 mm | 0.147 " | Copper Bare | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 300 VDC | 75 ░C | 0 °C | 18 AWG | Rip Cord | Multi-Conductor |
