FLCBS Series
Manufacturer: Essentra Components
Beta
⌘K

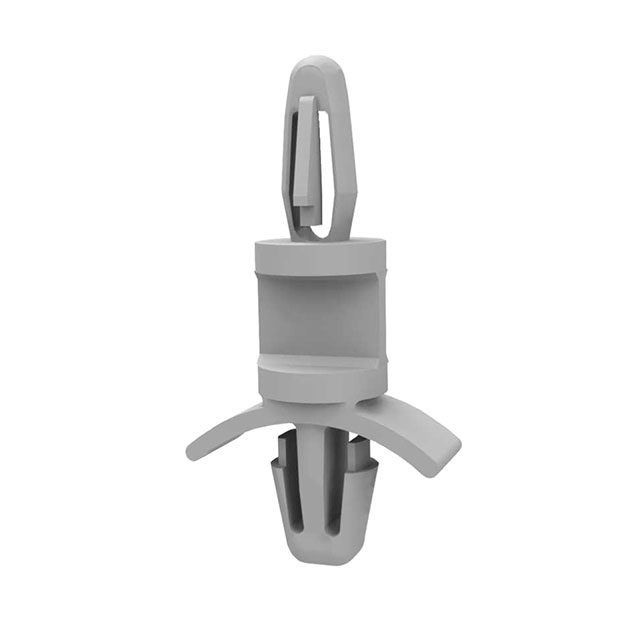

PCB MOUNTING, ROUND NYLON 7.1MMX9.5MM
| Part | Material | Mounting Panel Thickness | Mounting Panel Thickness | Mounting Panel Thickness | Length - Overall [x] | Length - Overall [x] | Support Hole Diameter | Support Hole Diameter | Support Hole Diameter | Mounting Type | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Support Panel Thickness | Support Panel Thickness | Support Panel Thickness | Between Board Height | Between Board Height | Between Board Height | Holding Type | Features | Length - Overall | Length - Overall | Between Board Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Essentra Components | Nylon | 0.062 " | 0.0625 " | 1.57 mm | 1.108 in | 28.14 mm | 3.96 mm | 5 32" | 0.156 in | Snap Lock | 0.1875 in | 0.187 in | 4.75 mm | 1.57 mm | 0.062 in | 0.0625 in | 0.375 in | 9.53 mm | 0.375 " | Snap Lock | Flexible Winged | |||
Essentra Components | Nylon | 0.062 " | 0.0625 " | 1.57 mm | 1.857 in | 47.18 mm | 3.96 mm | 5 32" | 0.156 in | Snap Lock | 0.1875 in | 0.187 in | 4.75 mm | 1.57 mm | 0.062 in | 0.0625 in | 1.125 in | 28.58 mm | Snap Lock | Flexible Winged | ||||
Essentra Components | Nylon | 0.062 " | 0.0625 " | 1.57 mm | 3.96 mm | 5 32" | 0.156 in | Snap Lock | 0.1875 in | 0.187 in | 4.75 mm | 1.57 mm | 0.062 in | 0.0625 in | 0.625 in | 15.88 mm | 5 8 | Snap Lock | Flexible Winged | 34.42 mm | 1.355 in | |||
Essentra Components | Nylon | 0.062 " | 0.0625 " | 1.57 mm | 1.732 in | 44 mm | 3.96 mm | 5 32" | 0.156 in | Snap Lock | 0.1875 in | 0.187 in | 4.75 mm | 1.57 mm | 0.062 in | 0.0625 in | 1 in | 25.4 mm | Snap Lock | Flexible Winged | ||||
Essentra Components | Nylon | 0.062 " | 0.0625 " | 1.57 mm | 3.96 mm | 5 32" | 0.156 in | Snap Lock | 0.1875 in | 0.187 in | 4.75 mm | 1.57 mm | 0.062 in | 0.0625 in | 1.375 in | 34.93 mm | Snap Lock | Flexible Winged | 1 3/8 | |||||
Essentra Components | Nylon | 0.062 " | 0.0625 " | 1.57 mm | 1.48 in | 37.6 mm | 3.96 mm | 5 32" | 0.156 in | Snap Lock | 0.1875 in | 0.187 in | 4.75 mm | 1.57 mm | 0.062 in | 0.0625 in | 0.75 " | 19.05 mm | 0.75 " | Snap Lock | Flexible Winged | |||
Essentra Components | Nylon | 0.062 " | 0.0625 " | 1.57 mm | 1.169 in | 29.7 mm | 3.96 mm | 5 32" | 0.156 in | Snap Lock | 0.1875 in | 0.187 in | 4.75 mm | 1.57 mm | 0.062 in | 0.0625 in | 0.438 in | 11.13 mm | 0.4375 " | Snap Lock | Flexible Winged |
