845-142 Series
Manufacturer: EDAC Inc.
Beta
⌘K

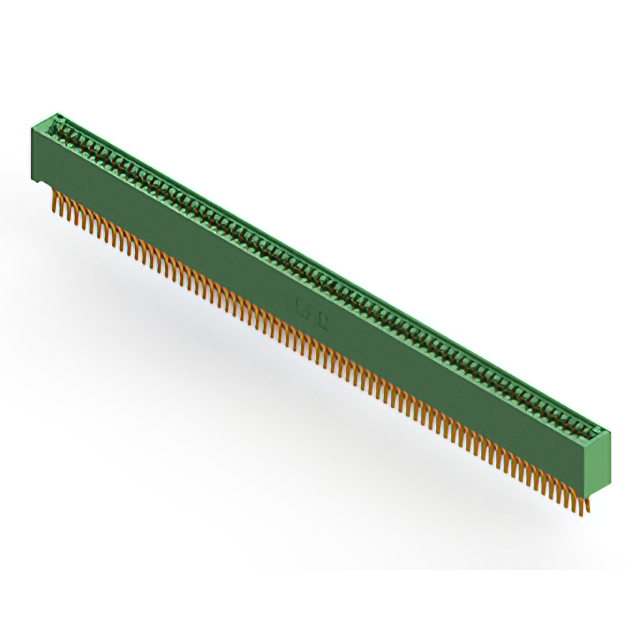

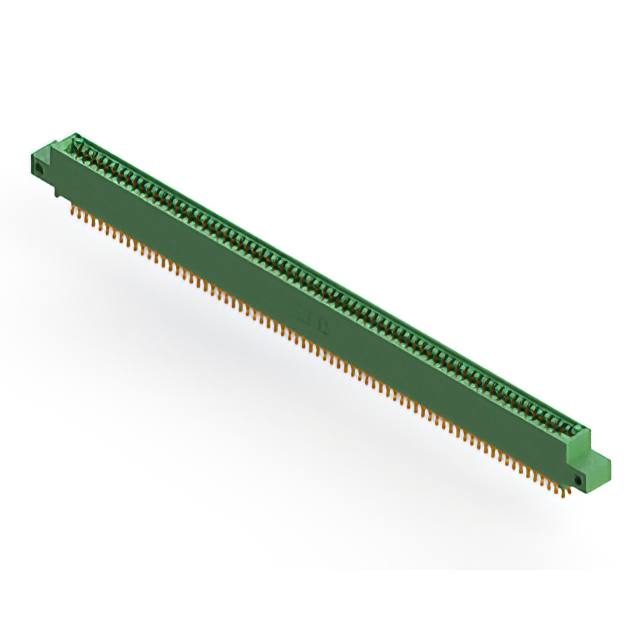

CONN EDGE DUAL FML 142POS 0.100
| Part | Number of Positions/Bay/Row | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Termination | Number of Rows [custom] | Termination Rows [custom] | Material - Insulation | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions | Card Thickness [Max] | Card Thickness [Min] | Gender | Contact Material | Pitch | Pitch | Card Type | Color | Read Out | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 71 | Through Hole | 125 °C | -40 C | Gold | Solder Eyelet(s) | 2 | 2 | Diallyl Phthalate (DAP) | Cantilever | 0.25 Ám | 10 Áin | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | 142 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Copper Alloy | 0.1 " | 2.54 mm | Non Specified - Dual Edge | Green | Dual | |
 EDAC Inc. | 71 | Through Hole | 125 °C | -40 C | Gold | Solder | 2 | 2 | Diallyl Phthalate (DAP) | Cantilever | 0.25 Ám | 10 Áin | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 142 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Copper Alloy | 0.1 " | 2.54 mm | Non Specified - Dual Edge | Green | Dual | |
 EDAC Inc. | 71 | Through Hole | 125 °C | -40 C | Gold | Wire Wrap | 2 | 2 | Diallyl Phthalate (DAP) | Cantilever | 0.25 Ám | 10 Áin | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 142 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Copper Alloy | 0.1 " | 2.54 mm | Non Specified - Dual Edge | Green | Dual | |
 EDAC Inc. | 71 | Through Hole | 125 °C | -40 C | Gold | Solder | 2 | 2 | Diallyl Phthalate (DAP) | Cantilever | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | 142 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Copper Alloy | 0.1 " | 2.54 mm | Non Specified - Dual Edge | Green | Dual | |
 EDAC Inc. | 71 | Board Edge Straddle Mount | 125 °C | -40 C | Gold | Solder | 2 | 2 | Diallyl Phthalate (DAP) | Cantilever | 0.25 Ám | 10 Áin | 4-40 Threaded Insert Top Mount Opening | 142 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Copper Alloy | 0.1 " | 2.54 mm | Non Specified - Dual Edge | Green | Dual | Card Extender | ||
 EDAC Inc. | 71 | Board Edge Straddle Mount | 125 °C | -40 C | Gold | Solder | 2 | 2 | Diallyl Phthalate (DAP) | Cantilever | 0.25 Ám | 10 Áin | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 142 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Copper Alloy | 0.1 " | 2.54 mm | Non Specified - Dual Edge | Green | Dual | Card Extender |
 EDAC Inc. | 71 | Right Angle Through Hole | 125 °C | -40 C | Gold | Solder | 2 | 2 | Diallyl Phthalate (DAP) | Cantilever | 0.25 Ám | 10 Áin | M3 Threaded Insert Top Mount Opening | 142 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Copper Alloy | 0.1 " | 2.54 mm | Non Specified - Dual Edge | Green | Dual | |||
EDAC Inc. | 71 | Through Hole | 125 °C | -40 C | Gold | Solder Eyelet(s) | 2 | 2 | Diallyl Phthalate (DAP) | Cantilever | 0.25 Ám | 10 Áin | 0.128 " | 3.25 mm | 142 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Copper Alloy | 0.1 " | 2.54 mm | Non Specified - Dual Edge | Green | Dual | ||
 EDAC Inc. | 71 | Board Edge Straddle Mount | 125 °C | -40 C | Gold | Solder | 2 | 2 | Diallyl Phthalate (DAP) | Cantilever | 0.25 Ám | 10 Áin | 142 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Copper Alloy | 0.1 " | 2.54 mm | Non Specified - Dual Edge | Green | Dual | Card Extender | |||
 EDAC Inc. | 71 | Through Hole | 125 °C | -40 C | Gold | Wire Wrap | 2 | 2 | Diallyl Phthalate (DAP) | Cantilever | 0.25 Ám | 10 Áin | 142 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Copper Alloy | 0.1 " | 2.54 mm | Non Specified - Dual Edge | Green | Dual |
