DDB6U50 Series

Manufacturer: INFINEON

Catalog

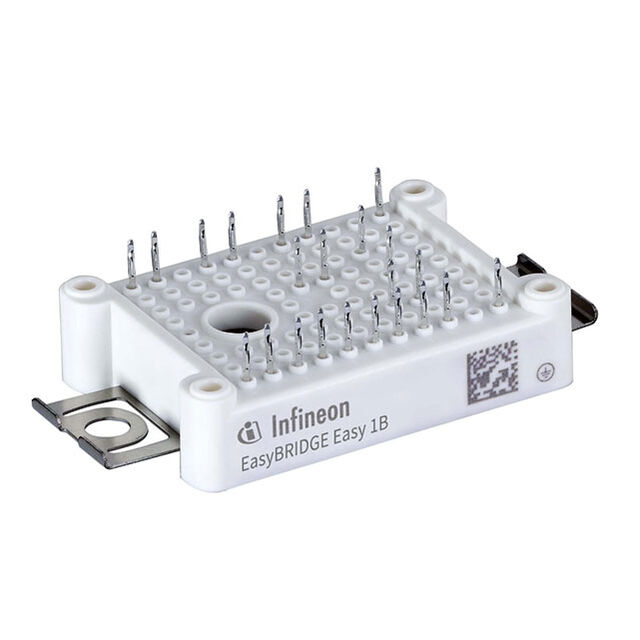

THE DDB6U50N16W1RP_B11 IS A 1200 V, 50 A, DIODE BRIDGE MODULE

Part	Current - Collector Cutoff (Max) [Max]	Input Capacitance (Cies) @ Vce	Operating Temperature [Max]	Operating Temperature [Min]	Vce(on) (Max) @ Vge, Ic [Max]	NTC Thermistor	Voltage - Collector Emitter Breakdown (Max) [Max]	Supplier Device Package	Input	Package / Case	IGBT Type	Current - Collector (Ic) (Max) [Max]	Mounting Type	Configuration
INFINEON DDB6U50N16W1RPB11BPSA1	6.2 µA	11100 pF	175 °C	-40 °C	1.5 V		1200 V	AG-EASY1B	Three Phase Bridge Rectifier	Module	Trench Field Stop	50 A	Chassis Mount	Single Chopper
INFINEON DDB6U50N16W1RBPSA1	6.2 µA	11100 pF	175 °C	-40 °C	1.5 V		1200 V	AG-EASY1B	Three Phase Bridge Rectifier	Module	Trench Field Stop	50 A	Chassis Mount	Single Chopper
