DAC7654 Series

Catalog

16 BIT, QUAD VOLTAGE OUTPUT DIGITAL TO ANALOG CONVERTER

Part	Data Interface	Package / Case	Reference Type	Voltage - Supply, Digital	Settling Time	INL/DNL (LSB) [Min]	INL/DNL (LSB) [Max]	INL/DNL (LSB)	Supplier Device Package	Output Type	Number of D/A Converters	Voltage - Supply, Analog	Architecture	Operating Temperature [Max]	Operating Temperature [Min]	Number of Bits	Mounting Type	INL/DNL (LSB)	INL/DNL (LSB)	Utilized IC / Part	Supplied Contents	Number of DAC's	DAC Type
Texas Instruments DAC7654YCT	SPI	64-LQFP	Internal	5 V	15 µs	-1 LSB	2 LSB	2 LSB	64-LQFP (10x10)	Voltage - Buffered	4	5 V	R-2R	85 °C	-40 °C	16	Surface Mount
Texas Instruments DAC7654YR	SPI	64-LQFP	Internal	5 V	15 µs			2 LSB 3 LSB	64-LQFP (10x10)	Voltage - Buffered	4	5 V	R-2R	85 °C	-40 °C	16	Surface Mount
Texas Instruments DAC7654YCTG4	SPI	64-LQFP	Internal	5 V	15 µs	-1 LSB	2 LSB	2 LSB	64-LQFP (10x10)	Voltage - Buffered	4	5 V	R-2R	85 °C	-40 °C	16	Surface Mount
Texas Instruments DAC7654YBR	SPI	64-LQFP	Internal	5 V	15 µs				64-LQFP (10x10)	Voltage - Buffered	4	5 V	R-2R	85 °C	-40 °C	16	Surface Mount	1 LSB	2 LSB
Texas Instruments DAC7654YCR	SPI	64-LQFP	Internal	5 V	15 µs	-1 LSB	2 LSB	2 LSB	64-LQFP (10x10)	Voltage - Buffered	4	5 V	R-2R	85 °C	-40 °C	16	Surface Mount
Texas Instruments DAC7654YBT	SPI	64-LQFP	Internal	5 V	15 µs				64-LQFP (10x10)	Voltage - Buffered	4	5 V	R-2R	85 °C	-40 °C	16	Surface Mount	1 LSB	2 LSB
Texas Instruments DAC7654YT	SPI	64-LQFP	Internal	5 V	15 µs			2 LSB 3 LSB	64-LQFP (10x10)	Voltage - Buffered	4	5 V	R-2R	85 °C	-40 °C	16	Surface Mount

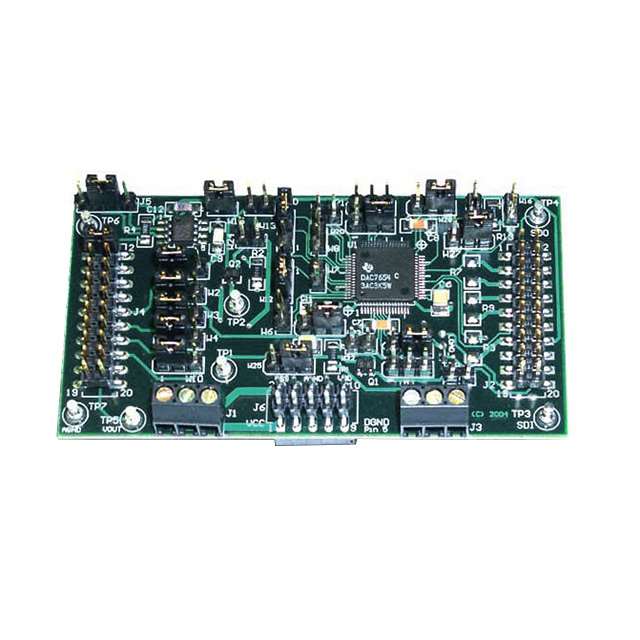

Texas Instruments DAC7654EVM	Serial				12 µs											16				DAC7654	Board(s)	4	Voltage
