M5010 Series

Catalog

FAN AXIAL 50X10MM 12VDC WIRE

Part	Material - Blade	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Air Flow	Voltage - Rated	Size / Dimension [x]	Size / Dimension [z]	Approval Agency	Static Pressure	Static Pressure	Weight	Weight	Fan Type	RPM	Bearing Type	Noise	Termination	Width [y]
Mechatronics Fan Group M5010M12C-RSR	Polybutylene Terephthalate (PBT)	60 mA	13.8 VDC	7 V	6.4 CFM	0.179 mł/min	12 VDC	50 mm	50 mm	cUL TUV UL	0.07 in H2O	17.4 Pa	20.87 g	0.046 lb	Tubeaxial	4000 RPM	Sleeve	24 dB	2 Wire Leads	10 mm

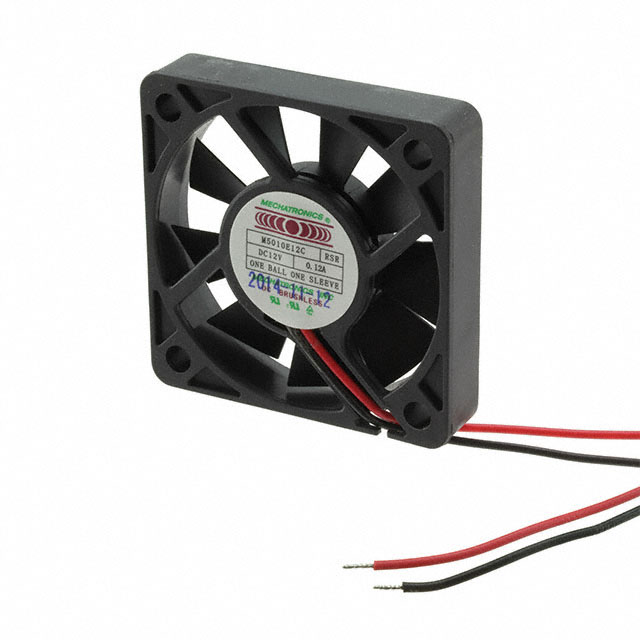

Mechatronics Fan Group M5010E12C-RSR	Polybutylene Terephthalate (PBT)	120 mA	13.8 VDC	7 V	9.9 CFM	0.277 m³/min	12 VDC	50 mm	50 mm	cUL TUV UL	0.14 in H2O	34.9 Pa	20.87 g	0.046 lb	Tubeaxial	6000 RPM	1 Ball 1 Sleeve	28 dB	2 Wire Leads	10 mm

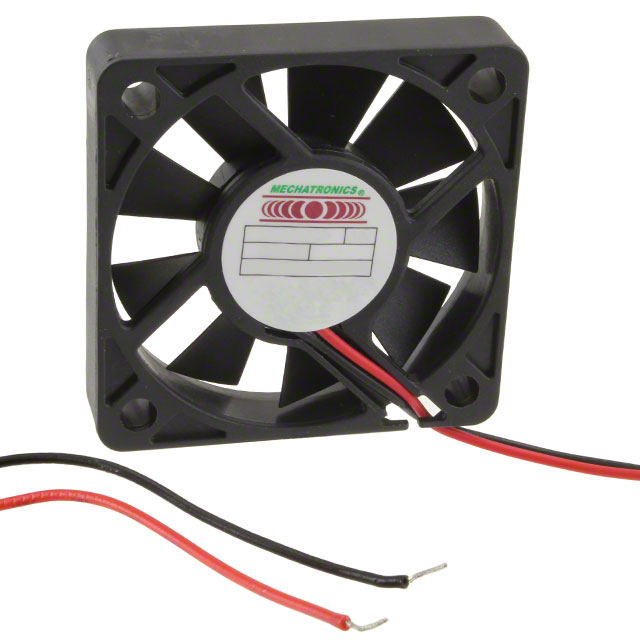

Mechatronics Fan Group M5010E05C-RSR	Polybutylene Terephthalate (PBT)	150 mA	6 VDC	3 V	9.9 CFM	0.277 m³/min	5 V	50 mm	50 mm	cUL TUV UL	0.14 in H2O	34.9 Pa	20.87 g	0.046 lb	Tubeaxial	6000 RPM	1 Ball 1 Sleeve	28 dB	2 Wire Leads	10 mm
Mechatronics Fan Group M5010M12C-RS	Polybutylene Terephthalate (PBT)	60 mA			6.3 CFM	0.176 m³/min	12 VDC	50 mm	50 mm	cUL TUV UL	0.07 in H2O	17.4 Pa	20.87 g	0.046 lb	Tubeaxial	4000 RPM	1 Ball 1 Sleeve	24 dB	2 Wire Leads	10 mm
