CAT10 Series
Manufacturer: Bourns Inc.
Beta
⌘K

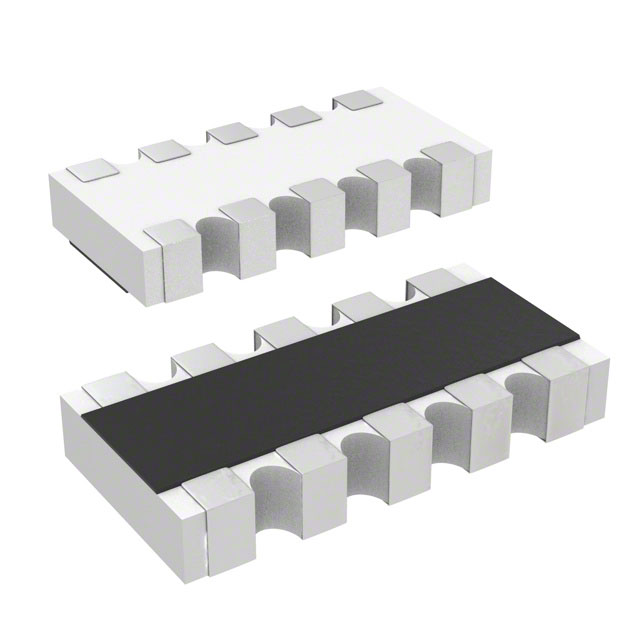

RES ARRAY 4 RES 75 OHM 0804
| Part | Temperature Coefficient | Number of Resistors | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Resistance (Ohms) | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | Mounting Type | Supplier Device Package | Package / Case | Number of Pins | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Circuit Type | Power Per Element | Resistance (Ohms) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 200 ppm/°C 250 ppm/°C | 4 | 0.039 in | 1 mm | 0.079 in | 2 mm | 75 Ohms | -55 C | 125 °C | 5 % | Surface Mount | 0804 | 0804 Concave Long Side Terminals | 8 | 0.55 mm | 0.022 in | Isolated | 62.5 mW | |
Bourns Inc. | 200 ppm/°C 250 ppm/°C | 4 | 0.039 in | 1 mm | 0.079 in | 2 mm | 470 Ohms | -55 C | 125 °C | 5 % | Surface Mount | 0804 | 0804 Concave Long Side Terminals | 8 | 0.55 mm | 0.022 in | Isolated | 62.5 mW | |
 Bourns Inc. | 200 ppm/°C | 4 | 0.039 in | 1 mm | 0.079 in | 2 mm | 39 kOhms | -55 C | 125 °C | 5 % | Surface Mount | 0804 | 0804 Concave Long Side Terminals | 8 | 0.55 mm | 0.022 in | Isolated | 62.5 mW | |
Bourns Inc. | 200 ppm/°C 250 ppm/°C | 4 | 0.039 in | 1 mm | 0.079 in | 2 mm | -55 C | 125 °C | 5 % | Surface Mount | 0804 | 0804 Concave Long Side Terminals | 8 | 0.55 mm | 0.022 in | Isolated | 62.5 mW | 56 Ohms | |
 Bourns Inc. | 200 ppm/°C | 4 | 0.039 in | 1 mm | 0.079 in | 2 mm | 33 Ohms | -55 C | 125 °C | 5 % | Surface Mount | 0804 | 0804 Concave Long Side Terminals | 8 | 0.55 mm | 0.022 in | Isolated | 62.5 mW | |
Bourns Inc. | 200 ppm/°C 250 ppm/°C | 4 | 0.039 in | 1 mm | 0.079 in | 2 mm | -55 C | 125 °C | 5 % | Surface Mount | 0804 | 0804 Concave Long Side Terminals | 8 | 0.55 mm | 0.022 in | Isolated | 62.5 mW | 43 Ohms | |
Bourns Inc. | 200 ppm/°C | 4 | 0.039 in | 1 mm | 0.079 in | 2 mm | 51 Ohms | -55 C | 125 °C | 5 % | Surface Mount | 0804 | 0804 Concave Long Side Terminals | 8 | 0.55 mm | 0.022 in | Isolated | 62.5 mW | |
Bourns Inc. | 200 ppm/°C | 4 | 0.039 in | 1 mm | 0.079 in | 2 mm | 30 Ohms | -55 C | 125 °C | 5 % | Surface Mount | 0804 | 0804 Concave Long Side Terminals | 8 | 0.55 mm | 0.022 in | Isolated | 62.5 mW | |
Bourns Inc. | 200 ppm/°C 250 ppm/°C | 4 | 0.039 in | 1 mm | 0.079 in | 2 mm | -55 C | 125 °C | 5 % | Surface Mount | 0804 | 0804 Concave Long Side Terminals | 8 | 0.55 mm | 0.022 in | Isolated | 62.5 mW | 510 Ohms | |
Bourns Inc. | 200 ppm/°C | 4 | 0.039 in | 1 mm | 0.079 in | 2 mm | -55 C | 125 °C | 5 % | Surface Mount | 0804 | 0804 Concave Long Side Terminals | 8 | 0.55 mm | 0.022 in | Isolated | 62.5 mW |
