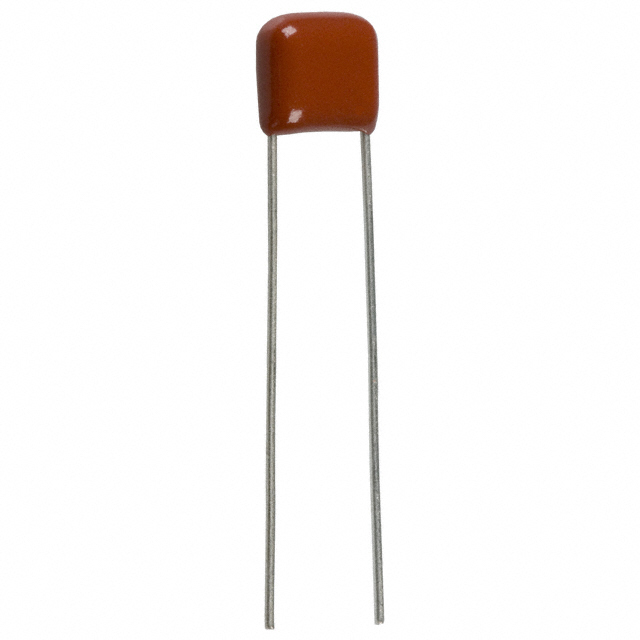

ECQ-V1183 Series

Catalog

CAP FILM 0.018UF 5% 100VDC RAD

Part	Dielectric Material	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Termination	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Applications	Mounting Type	Lead Spacing	Lead Spacing	Capacitance	Tolerance	Voltage Rating - DC
Panasonic Industrial Automation Sales ECQ-V1183JM	Polyester Metallized - Stacked	8 mm	0.315 in	PC Pins	7.5 mm	0.295 in	3.2 mm	0.126 "	-40 °C	105 ░C	Radial	General Purpose	Through Hole	5 mm	0.197 in	0.018 µF	5 %	100 V
Panasonic Industrial Automation Sales ECQ-V1183JM2	Polyester Metallized - Stacked	8 mm	0.315 in	PC Pins	7.5 mm	0.295 in	3.2 mm	0.126 "	-40 °C	105 ░C	Radial	General Purpose	Through Hole	5 mm	0.197 in	0.018 µF	5 %	100 V
Panasonic Industrial Automation Sales ECQ-V1183JM5	Polyester Metallized - Stacked	8 mm	0.315 in	PC Pins	7.5 mm	0.295 in	3.2 mm	0.126 "	-40 °C	105 ░C	Radial	General Purpose	Through Hole	5 mm	0.197 in	0.018 µF	5 %	100 V
