173R Series

Manufacturer: Serpac

Catalog

BOX ABS ALMOND 6.88"L X 4.88"W

Part	Weight	Weight	Container Type	Color	Design	Thickness	Thickness	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Area (L x W)	Area (L x W)	Material Flammability Rating	Height [z]	Height [z]	Features	Ratings	Material

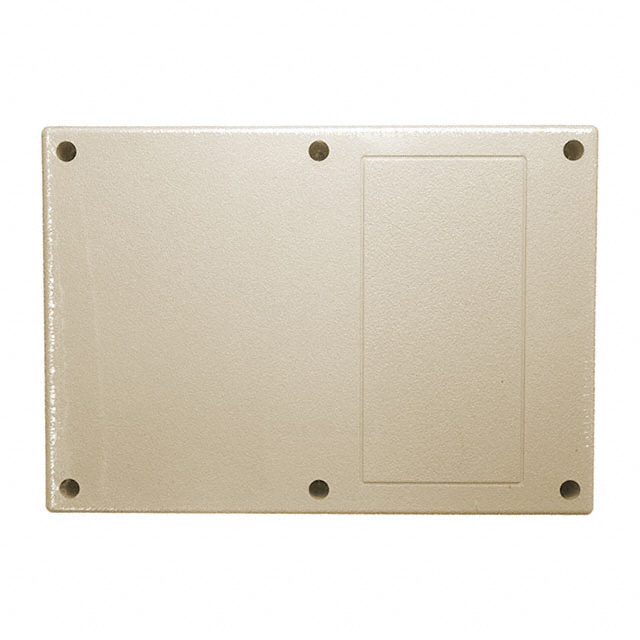

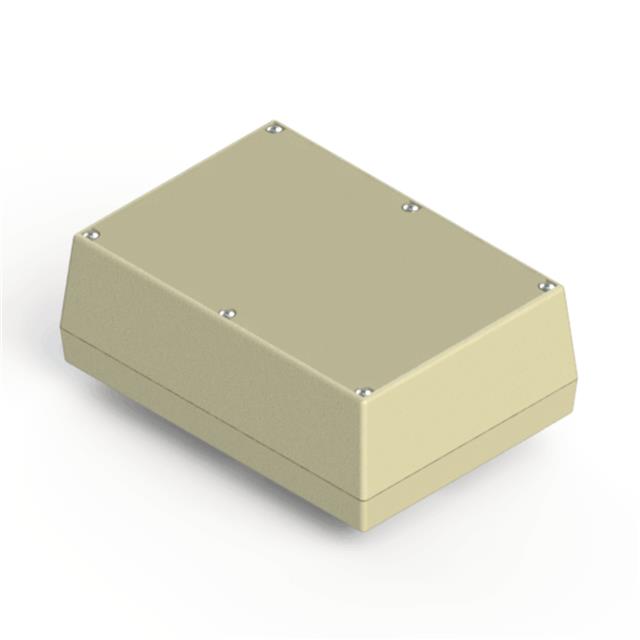

Serpac 173RI,AL	226.8 g	0.5 lb	Box	Almond	Hand Held Split Sides	2.54 mm	0.1 in	6.88 in	123.95 mm	174.75 mm	4.88 in	217 cm²	33.6 in²	UL94 HB	2.5 in	63.5 mm	Front Access PCB Supports	IP40 NEMA 1	ABS Plastic

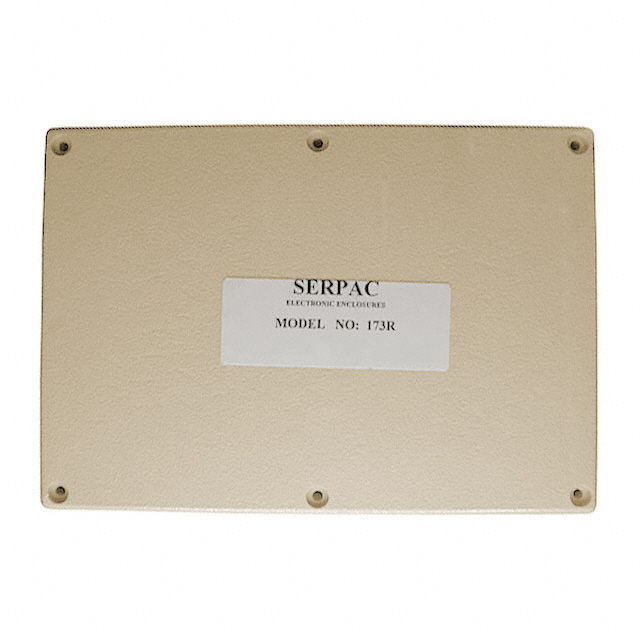

Serpac 173R,AL	226.8 g	0.5 lb	Box	Almond	Hand Held Split Sides	2.54 mm	0.1 in	6.88 in	123.95 mm	174.75 mm	4.88 in	217 cm²	33.6 in²	UL94 HB	2.5 in	63.5 mm	Front Access PCB Supports	IP40 NEMA 1	ABS Plastic
Serpac 173RI,BK	226.8 g	0.5 lb	Box	Black	Hand Held Split Sides	2.54 mm	0.1 in	6.88 in	123.95 mm	174.75 mm	4.88 in	217 cm²	33.6 in²	UL94 HB	2.5 in	63.5 mm	Front Access PCB Supports	IP40 NEMA 1	ABS Plastic

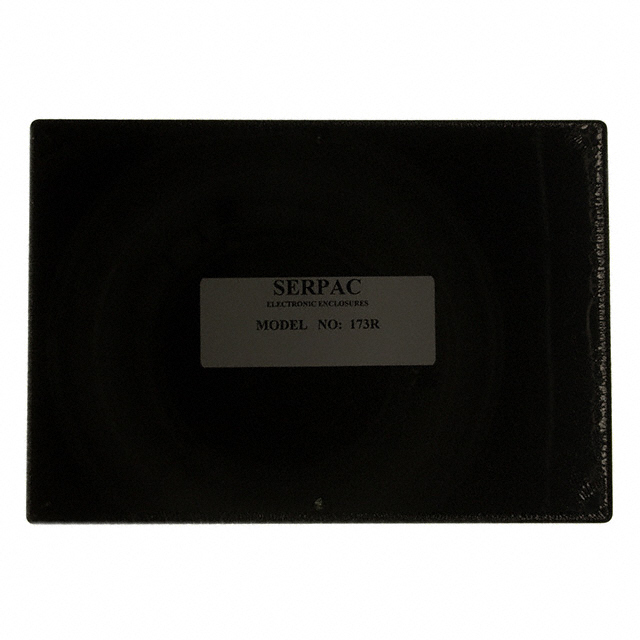

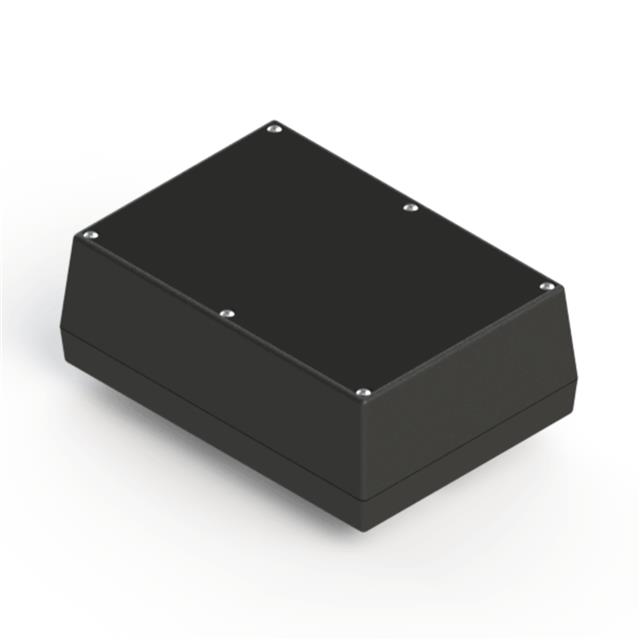

Serpac 173R,BK	226.8 g	0.5 lb	Box	Black	Hand Held Split Sides	2.54 mm	0.1 in	6.88 in	123.95 mm	174.75 mm	4.88 in	217 cm²	33.6 in²	UL94 HB	2.5 in	63.5 mm	Front Access PCB Supports	IP40 NEMA 1	ABS Plastic

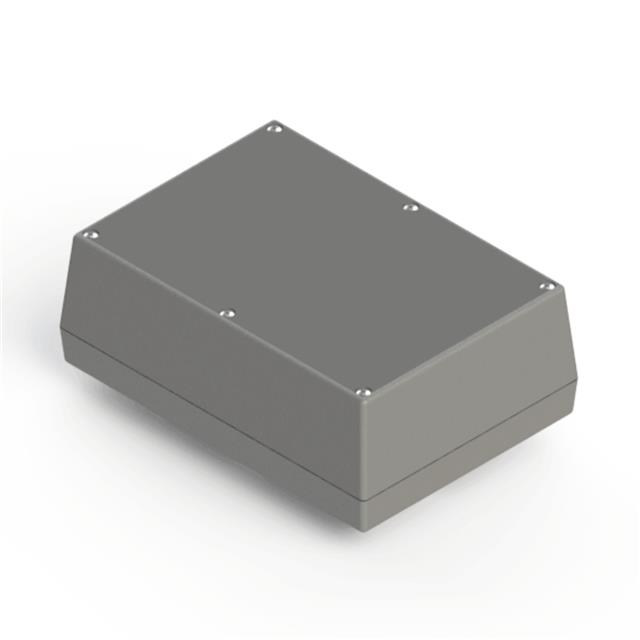

Serpac 173R,GY	226.8 g	0.5 lb	Box	Gray	Hand Held Split Sides	2.54 mm	0.1 in	6.88 in	123.95 mm	174.75 mm	4.88 in	217 cm²	33.6 in²	UL94 HB	2.5 in	63.5 mm	Front Access PCB Supports	IP40 NEMA 1	ABS Plastic

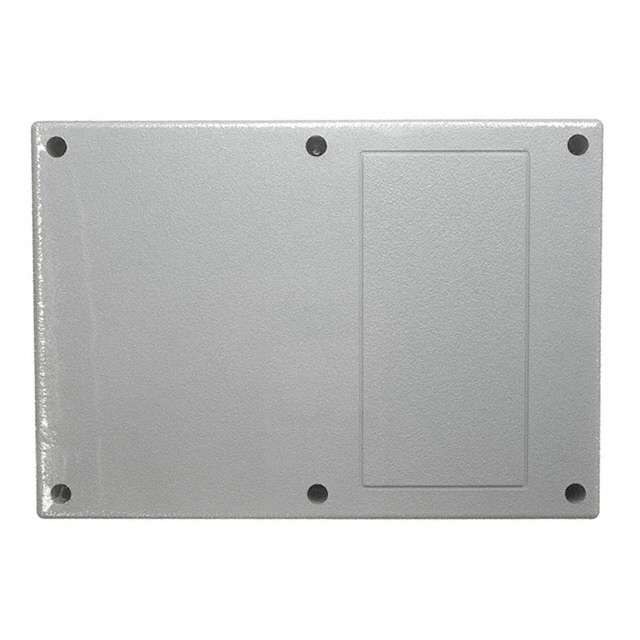

Serpac 173RI,GY	226.8 g	0.5 lb	Box	Gray	Hand Held Split Sides	2.54 mm	0.1 in	6.88 in	123.95 mm	174.75 mm	4.88 in	217 cm²	33.6 in²	UL94 HB	2.5 in	63.5 mm	Front Access PCB Supports	IP40 NEMA 1	ABS Plastic
