5690103 Series

Manufacturer: DIALIGHT

Catalog

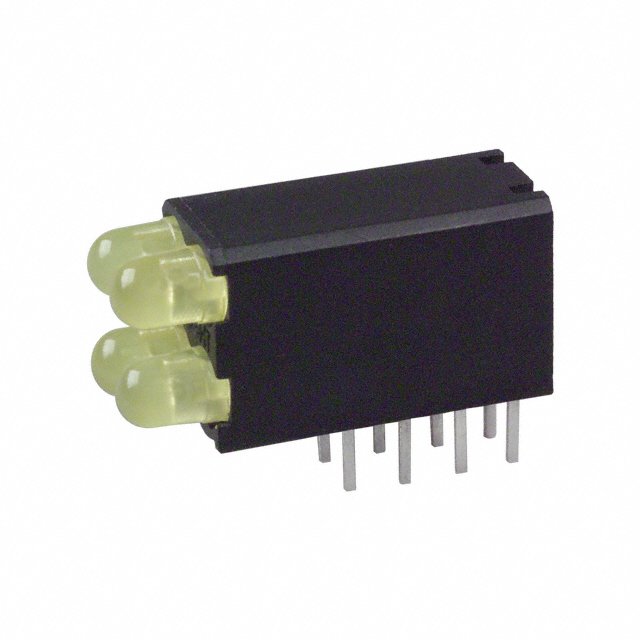

LED CBI 3MM 2X2 YLW RA PCMNT

Part	Current	Color	Millicandela Rating	Lens Size [diameter]	Viewing Angle	Wavelength - Peak	Lens Type	Voltage Rating	Lens Style	Mounting Type	Configuration [y]	Configuration [z]	Viewing Angle [custom]	Viewing Angle [custom]	Viewing Angle [custom]	Lens Size	Lens Size	Millicandela Rating [custom]	Millicandela Rating [custom]
DIALIGHT 5690103333F	20 mA	Yellow	10 mcd	3 mm	60 °	585 nm	Diffused Tinted	2.1 V	Round with Domed Top	Right Angle Through Hole	2	2
DIALIGHT 5690103970F		Blank (x 1) Blue (x 1) Orange (x 1) Yellow (x 1)	7 mcd 10 mcd 12.5 mcd			428 nm 585 nm 600 nm		2.1 V 2.2 V 3.5 V	Round with Domed Top	Right Angle Through Hole	2	2	60 °	70 °	60 °	3 mm	T-1
DIALIGHT 5690103272F		Green (x 2) Orange (x 1) Yellow (x 1)	7 mcd 10 mcd 12.6 mcd		60 °	565 nm 585 nm 600 nm		2.1 V 2.1 V 2.2 V	Round with Domed Top	Right Angle Through Hole	2	2				3 mm	T-1
DIALIGHT 5690103237F		Green Orange Yellow	7 mcd 10 mcd 12.6 mcd		60 °	565 nm 585 nm 600 nm		2.1 V 2.1 V 2.2 V	Round with Domed Top	Right Angle Through Hole	2	2				3 mm	T-1
DIALIGHT 5690103312F		Green (x 1) Red (x 1) Yellow (x 2)	10 mcd 10 mcd 12.6 mcd		60 °	565 nm 585 nm 635 nm		2 V 2.1 V 2.1 V	Round with Domed Top	Right Angle Through Hole	2	2				3 mm	T-1
DIALIGHT 5690103212F		Green (x 2) Red (x 1) Yellow (x 1)	10 mcd 10 mcd 12.6 mcd		60 °	565 nm 585 nm 635 nm		2 V 2.1 V 2.1 V	Round with Domed Top	Right Angle Through Hole	2	2				3 mm	T-1
DIALIGHT 5690103222F	10 mA	Green (x 3) Yellow (x 1)			60 °	565 nm 635 nm		2.1 V	Round with Domed Top	Right Angle Through Hole	2	2				3 mm	T-1	12.6 mcd	10 mcd
