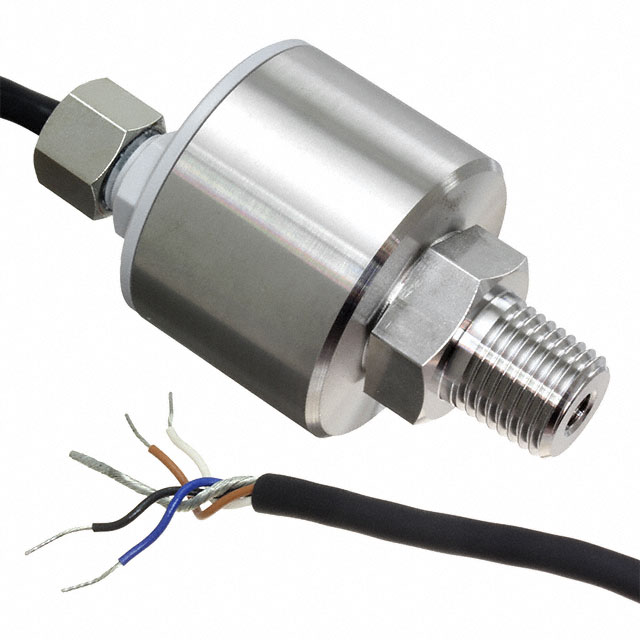

PA-850 Series

Manufacturer: Nidec Components Corporation

Catalog

PRESSURE TRANSDUCERS WITH AMP.

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Features	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Max]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Port Style	Port Size	Package / Case	Maximum Pressure	Maximum Pressure	Termination Style	Accuracy	Pressure Type	Output Type	Operating Pressure	Operating Pressure	Maximum Pressure [Max]	Maximum Pressure [Max]
Nidec Components Corporation PA-850-102R-PG2	30 VDC	10.8 VDC	Temperature Compensated	-14.5 PSI	100 kPa	-1 bar	14.5 PSI	Industrial Automation	80 °C	-20 ░C	Threaded	Female M5	Cylinder	29.01 PSI	200 kPa	M12	3 %	Compound	PNP - Open Collector
Nidec Components Corporation PA-850-102G-NGF	30 VDC	10.8 VDC	Temperature Compensated					Industrial Automation	80 °C	-20 ░C	Threaded		Cylinder	29.01 PSI	200 kPa	M12	3 %	Gauge	NPN - Open Collector	1 bar	14.5 PSI
Nidec Components Corporation PA-850-103G-PR2	30 VDC	10.8 VDC	Temperature Compensated					Industrial Automation	80 °C	-20 ░C	Threaded	Female M5	Cylinder			M12	3 %	Gauge	PNP - Open Collector	10 bar	145.04 PSI	290.08 PSI	2000 kPa
Nidec Components Corporation PA-850-102V-PR2	30 VDC	10.8 VDC	Temperature Compensated					Industrial Automation	80 °C	-20 ░C	Threaded	Female M5	Cylinder	29.01 PSI	200 kPa	M12	3 %	Vented Gauge	PNP - Open Collector	1 bar	14.5 PSI
Nidec Components Corporation PA-850-102G-NR2	30 VDC	10.8 VDC	Temperature Compensated					Industrial Automation	80 °C	-20 ░C	Threaded	Female M5	Cylinder	29.01 PSI	200 kPa	M12	3 %	Gauge	NPN - Open Collector	1 bar	14.5 PSI
Nidec Components Corporation PA-850-103G-NR2	30 VDC	10.8 VDC	Temperature Compensated					Industrial Automation	80 °C	-20 ░C	Threaded	Female M5	Cylinder			M12	3 %	Gauge	NPN - Open Collector	10 bar	145.04 PSI	290.08 PSI	2000 kPa
Nidec Components Corporation PA-850-102A-PG2	30 VDC	10.8 VDC	Temperature Compensated					Industrial Automation	80 °C	-20 ░C	Threaded	Female M5	Cylinder	29.01 PSI	200 kPa	M12	3 %		PNP - Open Collector	1 bar	14.5 PSI
Nidec Components Corporation PA-850-102A-PR2	30 VDC	10.8 VDC	Temperature Compensated					Industrial Automation	80 °C	-20 ░C	Threaded	Female M5	Cylinder	29.01 PSI	200 kPa	M12	3 %		PNP - Open Collector	1 bar	14.5 PSI
Nidec Components Corporation PA-850-103G-PGF	30 VDC	10.8 VDC	Temperature Compensated					Industrial Automation	80 °C	-20 ░C	Threaded		Cylinder			M12	3 %	Gauge	PNP - Open Collector	10 bar	145.04 PSI	290.08 PSI	2000 kPa
Nidec Components Corporation PA-850-352G-PGF	30 VDC	10.8 VDC	Temperature Compensated					Industrial Automation	80 °C	-20 ░C	Threaded		Cylinder			M12	3 %	Gauge	PNP - Open Collector	3.5 bar	50.76 PSI	101.53 PSI	700 kPa
