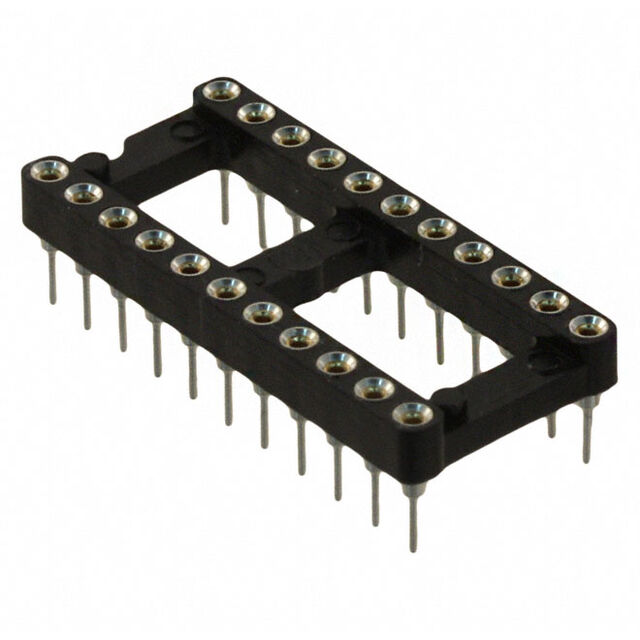

110-43 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

Catalog

CONN IC DIP SOCKET 14POS GOLD

...

Part	Termination Post Length	Termination Post Length	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Post	Pitch - Post	Contact Material - Post	Contact Finish - Post	Mounting Type	Contact Material - Mating	Contact Finish - Mating	Number of Positions or Pins (Grid)	Housing Material	Features	Type	Type	Type	Pitch - Mating	Pitch - Mating	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Contact Resistance	Type [custom]	Type [custom]	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 110-43-314-10-001000	0.125 in	3.18 mm	3 A	0.76 Ám	30 Áin	-55 C	125 °C	0.1 in	2.54 mm	Brass Alloy	Tin	Through Hole	Beryllium Copper	Gold	4 14	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	7.62 mm	0.3 in	DIP	0.1 "	2.54 mm	Solder	200 µin	5.08 µm
Mill-Max Manufacturing Corp. 110-43-624-61-105000	0.125 in	3.18 mm	3 A	0.76 Ám	30 Áin	-55 C	125 °C	0.1 in	2.54 mm	Brass Alloy	Tin	Surface Mount	Beryllium Copper	Gold	24	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame			DIP	0.1 "	2.54 mm	Solder	200 µin	5.08 µm	UL94 V-0	10 mOhm	15.24 mm	0.6 in	12	2

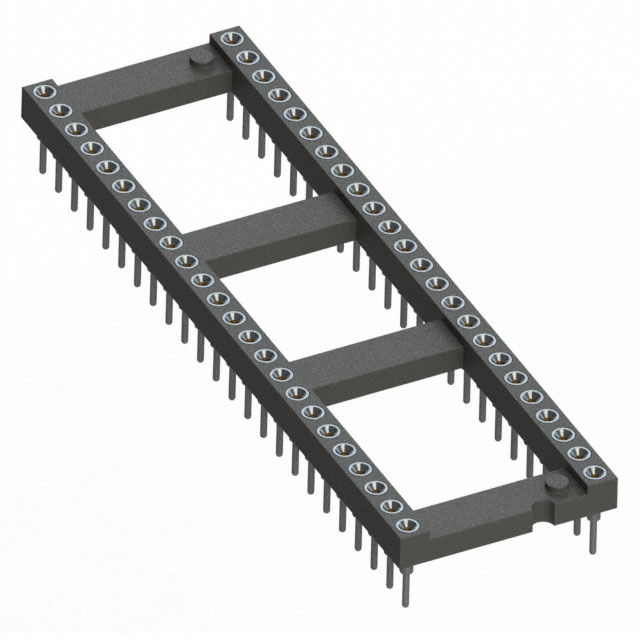

Mill-Max Manufacturing Corp. 110-43-648-41-001000	0.125 in	3.18 mm	3 A	0.76 Ám	30 Áin	-55 C	125 °C	0.1 in	2.54 mm	Brass Alloy	Tin	Through Hole	Beryllium Copper	Gold		Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame			DIP	0.1 "	2.54 mm	Solder	200 µin	5.08 µm			15.24 mm	0.6 in	24	2	48
Mill-Max Manufacturing Corp. 110-43-422-41-001000	0.125 in	3.18 mm	3 A	0.76 Ám	30 Áin	-55 C	125 °C	0.1 in	2.54 mm	Brass Alloy	Tin	Through Hole	Beryllium Copper	Gold	22	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame		0.4 in	DIP	0.1 "	2.54 mm	Solder	200 µin	5.08 µm					2	11
Mill-Max Manufacturing Corp. 110-43-636-61-001000	0.125 in	3.18 mm	3 A	0.76 Ám	30 Áin	-55 C	125 °C	0.1 in	2.54 mm	Brass Alloy	Tin	Through Hole	Beryllium Copper	Gold	36	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester				DIP	0.1 "	2.54 mm	Solder	200 µin	5.08 µm	UL94 V-0	10 mOhm	15.24 mm	0.6 in
Mill-Max Manufacturing Corp. 110-43-304-41-105000	0.125 in	3.18 mm	3 A	0.76 Ám	30 Áin	-55 C	125 °C	0.1 in	2.54 mm	Brass Alloy	Tin	Surface Mount	Beryllium Copper	Gold	4 pins	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	7.62 mm	0.3 in	DIP	0.1 "	2.54 mm	Solder	200 µin	5.08 µm	UL94 V-0	10 mOhm						2 x 2
Mill-Max Manufacturing Corp. 110-43-640-41-801000	0.125 in	3.18 mm	3 A	0.76 Ám	30 Áin	-55 C	125 °C	0.1 in	2.54 mm	Brass Alloy	Tin	Through Hole	Beryllium Copper	Gold	40	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Decoupling Capacitor Open Frame			DIP	0.1 "	2.54 mm	Solder	200 µin	5.08 µm			15.24 mm	0.6 in
Mill-Max Manufacturing Corp. 110-43-210-61-001000	0.125 in	3.18 mm	3 A	0.76 Ám	30 Áin	-55 C	125 °C	0.1 in	2.54 mm	Brass Alloy	Tin	Through Hole	Beryllium Copper	Gold	10	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	5.08 mm		DIP	0.1 "	2.54 mm	Solder	200 µin	5.08 µm	UL94 V-0	10 mOhm			2	5
Mill-Max Manufacturing Corp. 110-43-636-61-105000	0.125 in	3.18 mm	3 A	0.76 Ám	30 Áin	-55 C	125 °C	0.1 in	2.54 mm	Brass Alloy	Tin	Surface Mount	Beryllium Copper	Gold	36	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame			DIP	0.1 "	2.54 mm	Solder	200 µin	5.08 µm	UL94 V-0	10 mOhm	15.24 mm	0.6 in

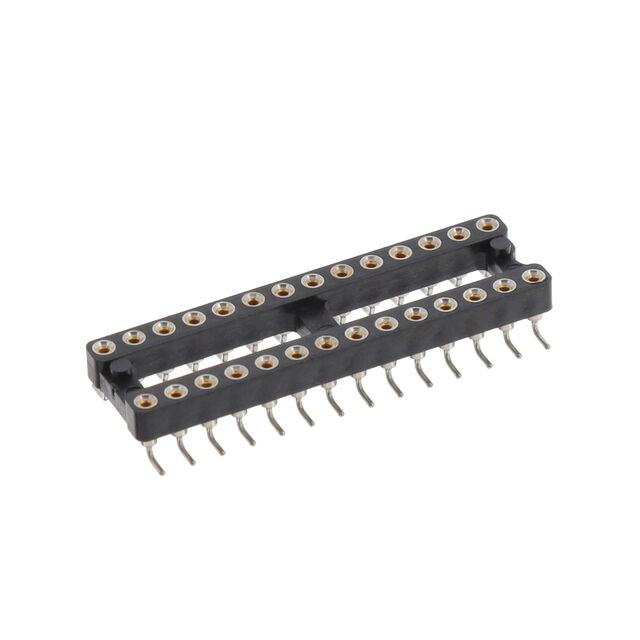

Mill-Max Manufacturing Corp. 110-43-328-41-105000	0.125 in	3.18 mm	3 A	0.76 Ám	30 Áin	-55 C	125 °C	0.1 in	2.54 mm	Brass Alloy	Tin	Surface Mount	Beryllium Copper	Gold	28	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Open Frame	7.62 mm	0.3 in	DIP	0.1 "	2.54 mm	Solder	200 µin	5.08 µm	UL94 V-0	10 mOhm
