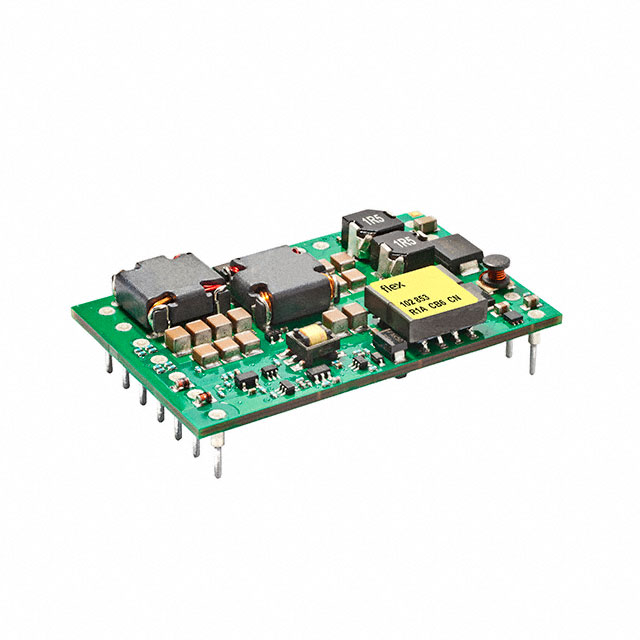

PIM432 Series

Catalog

DC DC CONVERTER 3.3V 5V 58W

Part	Mounting Type	Voltage - Input (Min) [Min]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Voltage - Isolation	Standard Number	Package / Case	Supplier Device Package	Applications	Voltage - Output 1	Voltage - Output 2	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Approval Agency	Efficiency	Current - Output (Max) [Max]	Type	Voltage - Input (Max) [Max]
Flex Power Modules PIM4328PD	Through Hole	36 V	Adjustable Output PMBus™	-40 °C	110 °C	2	2250 VDC	62368-1	Quarter Brick	Quarter Brick	ITE (Commercial)	3.3 V	5 V	2.28 "	57.9 mm	36.8 mm	0.42 "	10.7 mm	1.45 in	CB CSA IEC TUV UL	98.8 %	3.6 A 12 A	Isolated Module	75 V
Flex Power Modules PIM4328P	Through Hole	36 V	Adjustable Output PMBus™	-40 °C	100 °C	2	2250 VDC	62368-1	Quarter Brick	Quarter Brick	ITE (Commercial)	3.3 V	5 V	2.28 "	57.9 mm	36.8 mm	0.42 "	10.7 mm	1.45 in	CB CSA IEC TUV UL	99.1 %	3.6 A 12 A	Isolated Module	75 V
