4741 Series

Catalog

TEST LEAD, 0.64MM SQUARE PIN SOCKET TO 0.64MM SQUARE PIN SOCKET, RED, 45 VRMS, 3 A, 609.6 MM

Part	Material - Insulation	2nd Connector	2nd Connector	2nd Connector	Contents	1st Connector	1st Connector	1st Connector	Voltage - Rated	Current Rating (Amps)	Cable Length	Cable Length	Configuration	Wire Gauge	Temperature Range	Temperature Range
Pomona Electronics 4741-24-2	Poly-Vinyl Chloride (PVC)	Socket Square	0.025 in	0.64 mm	1 Lead Red	0.64 mm	Socket Square	0.025 "	45 VAC	3 A	24 in	609.6 mm	Socket to Socket	22 AWG	122 °F	50 °C

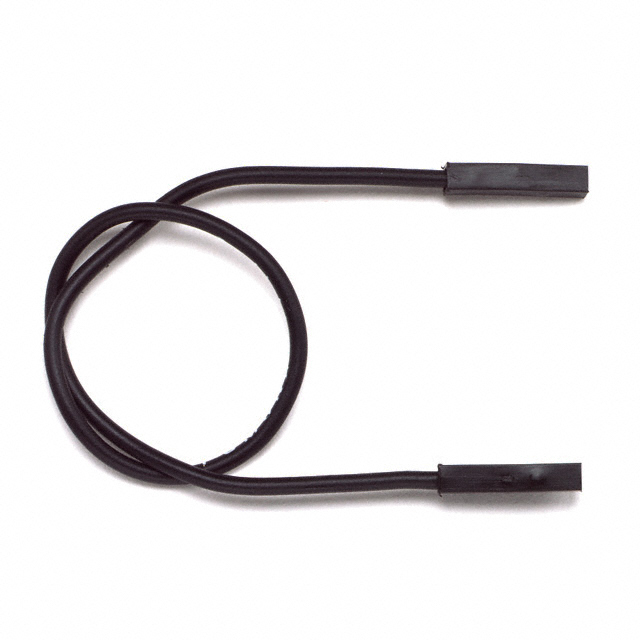

Pomona Electronics 4741-6-0	Poly-Vinyl Chloride (PVC)	Socket Square	0.025 in	0.64 mm	1 Lead Black	0.64 mm	Socket Square	0.025 "	45 VAC	3 A	6 in	152.4 mm	Socket to Socket	22 AWG	122 °F	50 °C

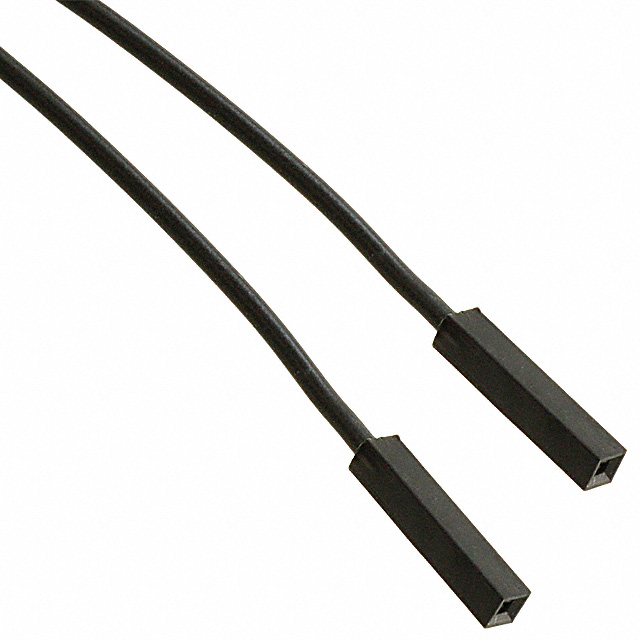

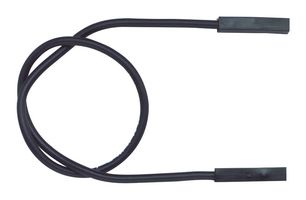

Pomona Electronics 4741-12-0	Poly-Vinyl Chloride (PVC)	Socket Square	0.025 in	0.64 mm	1 Lead Black	0.64 mm	Socket Square	0.025 "	45 VAC	3 A	12 in	304.8 mm	Socket to Socket	22 AWG	122 °F	50 °C
Pomona Electronics 4741-24-0	Poly-Vinyl Chloride (PVC)	Socket Square	0.025 in	0.64 mm	1 Lead Black	0.64 mm	Socket Square	0.025 "	45 VAC	3 A	24 in	609.6 mm	Socket to Socket	22 AWG	122 °F	50 °C
