55444 Series

Catalog

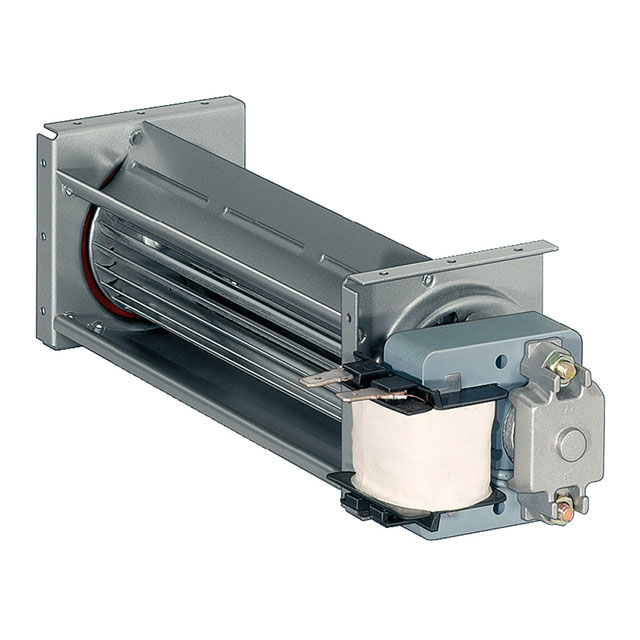

FAN BLOWER CF 300X74MM 115VAC

Part	Air Flow	Air Flow	Termination	Width	Static Pressure	Static Pressure	Fan Type	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [y]	RPM	Voltage - Rated	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Max]	Power (Watts)	Size / Dimension	Size / Dimension [z]
ebm-papst Inc. 55444.50000	81 CFM	2.27 m³/min	2	74 mm	15 Pa	0.06 in H2O	Blower Cross Flow	40 mm	338 mm	59 mm	2200 RPM	115 VAC	1.8 lbs	816.5 g	60 °C	60 °C	18 W
ebm-papst Inc. 55444.20000	29 CFM	0.812 mł/min	2	74 mm	13 Pa	0.052 in H2O	Blower Cross Flow	40 mm	226 mm		2100 RPM	115 VAC	1.1 lbs	499 g	60 °C	60 °C	12 W	Rectangular	59 mm
ebm-papst Inc. 55444.10000	19 CFM	0.532 m³/min	2	74 mm	13 Pa	0.052 in H2O	Blower Cross Flow	40 mm	176 mm	59 mm	2100 RPM	115 VAC	1 lbs	453.59 g	60 °C	60 °C	6 W
ebm-papst Inc. 55444.40000	54 CFM	1.51 m³/min	2	74 mm	15 Pa	0.06 in H2O	Blower Cross Flow	40 mm	332 mm	59 mm	2000 RPM	115 VAC	1.4 lbs	635 g	60 °C	60 °C	12 W
