BCP Series

Catalog

PLUGGABLE TERMINAL BLOCKS BCP-350-15 BK

Part	Number of Positions	Positions Per Level	Plug Wire Entry	Type	Voltage - UL	Contact Mating Finish	Current - IEC	Voltage - IEC	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Termination Style	Number of Levels	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Mounting Type	Color	Pitch	Pitch	Current - UL	Housing Material	Wire Strip Length	Insulation Height	Insulation Height	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Max]	Torque - Screw [Min]	Material Flammability Rating	Screw Size	Features	Insulation Height [custom]	Insulation Height [custom]
Phoenix Contact 5452189	15	15	180 °	Plug Female Sockets	300 V	Tin	8 A	320 V	1.5 mm²	0.2 mm²	Screw	1	14 AWG	30 AWG	Free Hanging (In-Line)	Black	3.5 mm	0.138 "	8 A

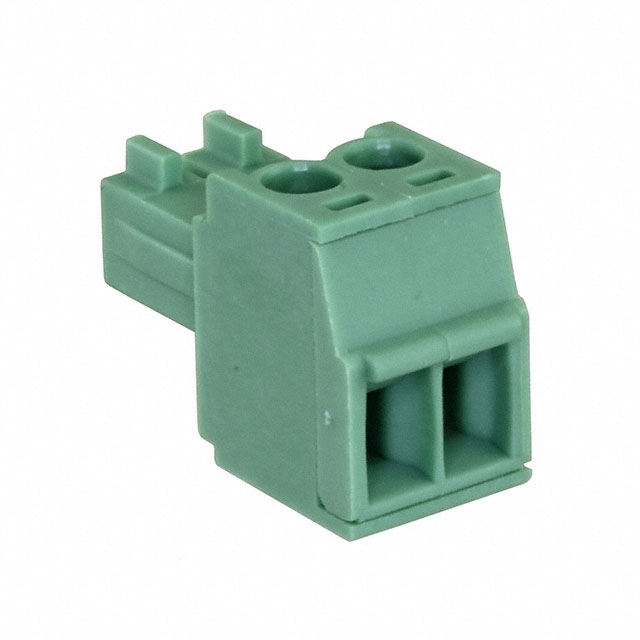

Phoenix Contact 5441207	2	2	180 °	Plug Female Sockets	300 V	Tin	8 A	320 V	1.5 mm²	0.2 mm²	Screw	1	14 AWG	30 AWG	Free Hanging (In-Line)	Green	3.5 mm	0.138 "	8 A	Polyamide (PA) Nylon	7 mm	11.1 mm	0.437 in	0.25 Nm	0.22 Nm	2.2 Lb-In	1.9 Lb-In	UL94 V-0	M2
Phoenix Contact 5448886	9	9	180 °	Plug Female Sockets	300 V	Tin	12 A	320 V	2.5 mm²	0.2 mm²	Screw	1	12 AWG	30 AWG	Free Hanging (In-Line)	Green	5.08 mm	0.2 in												Mating Flange
Phoenix Contact 5448394	20	20	180 °	Plug Female Sockets	300 V	Tin	12 A	630 V	2.5 mm²	0.2 mm²	Screw	1	12 AWG	30 AWG	Free Hanging (In-Line)	Green	5 mm	0.197 in		Polyamide (PA) Nylon	7 mm			0.5 Nm	0.4 Nm	4.4 Lb-In	3.5 Lb-In	UL94 V-0	M3		0.591 in	15 mm
Phoenix Contact 5452545		17	180 °	Plug Female Sockets	300 V	Tin	8 A	160 V			Screw	1	14 AWG	30 AWG	Free Hanging (In-Line)	Black	3.81 mm	0.15 in	8 A											Mating Flange
Phoenix Contact 5441977		3	180 °	Plug Female Sockets	300 V	Tin	12 A	630 V	2.5 mm²	0.2 mm²	Screw	1	12 AWG	30 AWG	Free Hanging (In-Line)	Green	5.08 mm	0.2 in
Phoenix Contact 5452565	18	18	180 °	Plug Female Sockets	300 V	Tin	12 A	630 V	2.5 mm²	0.2 mm²	Screw	1	12 AWG	30 AWG	Free Hanging (In-Line)	Black	5 mm	0.197 in												Mating Flange
Phoenix Contact 5441731		3	180 °	Plug Female Sockets	300 V	Tin	12 A	630 V	2.5 mm²	0.2 mm²	Screw	1	12 AWG	30 AWG	Free Hanging (In-Line)	Black	5 mm	0.197 in		Polyamide (PA) Nylon	7 mm			0.5 Nm	0.4 Nm	4.4 Lb-In	3.5 Lb-In	UL94 V-0	M3		0.591 in	15 mm
Phoenix Contact 5447832	18	18	180 °	Plug Female Sockets	300 V	Tin	8 A	160 V	1.5 mm²	0.2 mm²	Screw	1	14 AWG	30 AWG	Free Hanging (In-Line)	Green	3.5 mm	0.138 "	8 A			11.1 mm	0.437 in							Mating Flange

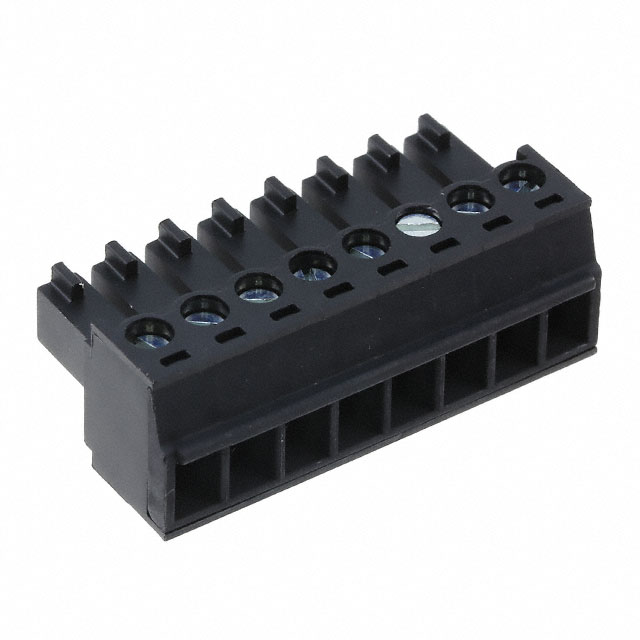

Phoenix Contact 5452201	8	8	180 °	Plug Female Sockets	300 V	Tin	8 A	320 V	1.5 mm²	0.2 mm²	Screw	1	14 AWG	30 AWG	Free Hanging (In-Line)	Black	3.81 mm	0.15 in	8 A	Polyamide (PA) Nylon	7 mm	11.1 mm	0.437 in	0.25 Nm	0.22 Nm	2.2 Lb-In	1.9 Lb-In	UL94 V-0	M2
