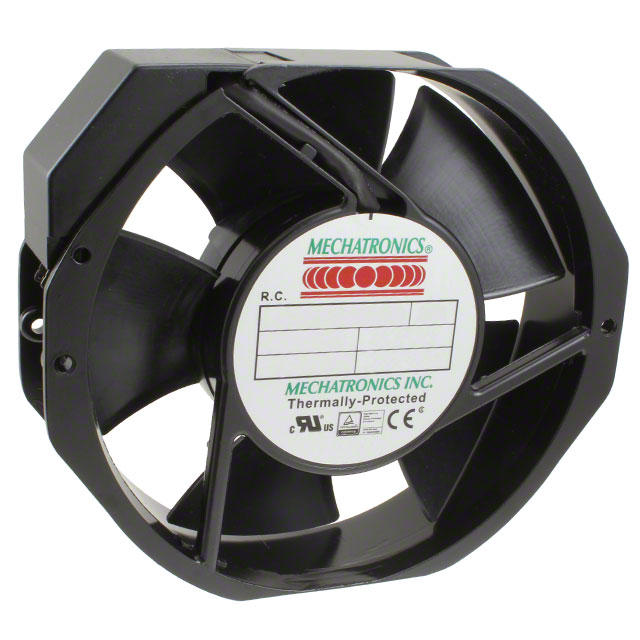

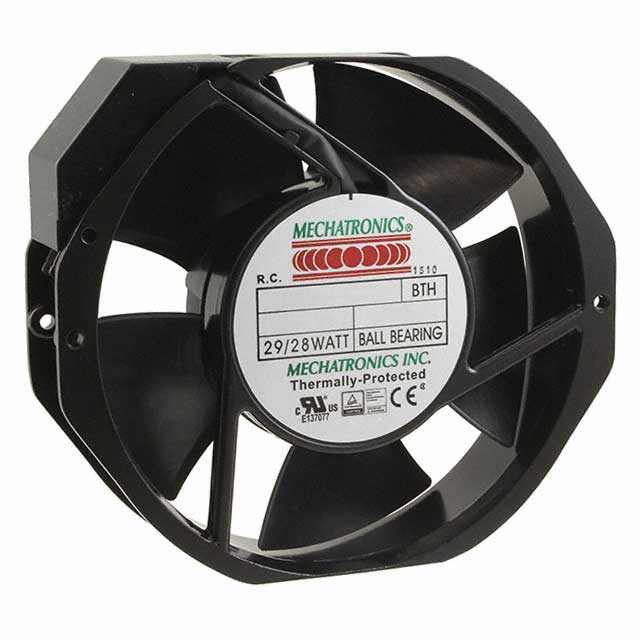

UF15A Series

Catalog

FAN AXIAL 172X150X38MM 115/230V

Part	Material - Blade	Material - Frame	RPM	Voltage - Rated [Max]	Voltage - Rated [Min]	Static Pressure	Static Pressure	Weight	Weight	Features	Power (Watts)	Air Flow	Air Flow	Termination	Approval Agency	Fan Type	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Bearing Type	Width [y]	Noise	Current Rating (Amps)	Voltage - Rated	Termination
Mechatronics Fan Group UF15AC12/23-BWHR	Polybutylene Terephthalate (PBT)	Aluminum	3400 RPM	230 VAC	115 VAC	0.75 in H2O	186.8 Pa	1.6 lbs	725.7 g	Dual Voltage Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	26 W 28 W	212 CFM	5.94 m³/min	2 Wire Leads	CE cUL TUV UL	Tubeaxial	Rectangular/Rounded	150 mm	172 mm	-40 C	70 °C	70 °C	-40 °C	Ball	38 mm	58 dB(A)
Mechatronics Fan Group UF15AC23-BTHR	Polybutylene Terephthalate (PBT)	Aluminum	3400 RPM			0.75 in H2O	186.8 Pa	1.6 lbs	725.7 g	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	26 W	212 CFM	5.94 m³/min		CE cUL TUV UL	Tubeaxial	Rectangular/Rounded	150 mm	172 mm	-40 C	70 °C	70 °C	-40 °C	Ball	38 mm	58 dB(A)	110 mA	230 VAC	2
Mechatronics Fan Group UF15AC23-BWHR-L36	Polybutylene Terephthalate (PBT)	Aluminum	3400 RPM			0.75 in H2O	186.8 Pa	1.6 lbs	725.7 g	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	26 W	212 CFM	5.94 m³/min	2 Wire Leads	CE cUL TUV UL	Tubeaxial	Rectangular/Rounded	150 mm	172 mm	-40 C	70 °C	70 °C	-40 °C	Ball	38 mm	58 dB(A)	110 mA	230 VAC
Mechatronics Fan Group UF15AC12-BTMR	Polybutylene Terephthalate (PBT)	Aluminum						1.6 lbs	725.7 g	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)					CE cUL TUV UL	Tubeaxial	Rectangular/Rounded	150 mm	172 mm	-40 C	70 °C	70 °C	-40 °C	Ball	38 mm			115 VAC	2
Mechatronics Fan Group UF15AC12-BTLR	Polybutylene Terephthalate (PBT)	Aluminum	1700 RPM			0.26 in H2O	64.8 Pa	1.6 lbs	725.7 g	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	28 W	103 CFM	2.88 mł/min		CE cUL TUV UL	Tubeaxial	Rectangular/Rounded	150 mm	172 mm	-40 C	70 °C	70 °C	-40 °C	Ball	38 mm	44 dB(A)	150 mA	115 VAC	2
Mechatronics Fan Group UF15AC12-BTHR	Polybutylene Terephthalate (PBT)	Aluminum	3400 RPM			0.75 in H2O	186.8 Pa	1.6 lbs	725.7 g	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	28 W	212 CFM	5.94 m³/min		CE cUL TUV UL	Tubeaxial	Rectangular/Rounded	150 mm	172 mm	-40 C	70 °C	70 °C	-40 °C	Ball	38 mm	58 dB(A)	0.23 A	115 VAC	2
Mechatronics Fan Group UF15AC23-BTLR	Polybutylene Terephthalate (PBT)	Aluminum	1700 RPM			0.26 in H2O	64.8 Pa	1.6 lbs	725.7 g	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	26 W	103 CFM	2.88 mł/min		CE cUL TUV UL	Tubeaxial	Rectangular/Rounded	150 mm	172 mm	-40 C	70 °C	70 °C	-40 °C	Ball	38 mm	44 dB(A)	70 mA	230 VAC	2
Mechatronics Fan Group UF15AC12-BWHR	Polybutylene Terephthalate (PBT)	Aluminum	3400 RPM			0.75 in H2O	186.8 Pa	1.6 lbs	725.7 g	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	28 W	212 CFM	5.94 m³/min	2 Wire Leads	CE cUL TUV UL	Tubeaxial	Rectangular/Rounded	150 mm	172 mm	-40 C	70 °C	70 °C	-40 °C	Ball	38 mm	58 dB(A)	0.23 A	115 VAC
Mechatronics Fan Group UF15AC23-BTMR	Polybutylene Terephthalate (PBT)	Aluminum						1.6 lbs	725.7 g	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)					CE cUL TUV UL	Tubeaxial	Rectangular/Rounded	150 mm	172 mm	-40 C	70 °C	70 °C	-40 °C	Ball	38 mm			230 VAC	2
Mechatronics Fan Group UF15AC12-BWHR-L36	Polybutylene Terephthalate (PBT)	Aluminum	3400 RPM			0.75 in H2O	186.8 Pa	1.6 lbs	725.7 g	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	28 W	212 CFM	5.94 m³/min	2 Wire Leads	CE cUL TUV UL	Tubeaxial	Rectangular/Rounded	150 mm	172 mm	-40 C	70 °C	70 °C	-40 °C	Ball	38 mm	58 dB(A)	0.23 A	115 VAC
