MB403 Series

Manufacturer: Visual Communications Company - VCC

Catalog

LED LAMP T-3 1/4 MIN BAYONET GRN

Part	Can Replace Lamps	Size / Dimension	Millicandela Rating	Wavelength	Configuration	Color	Base Type	Applications	Voltage - Forward (Vf) (Typ)

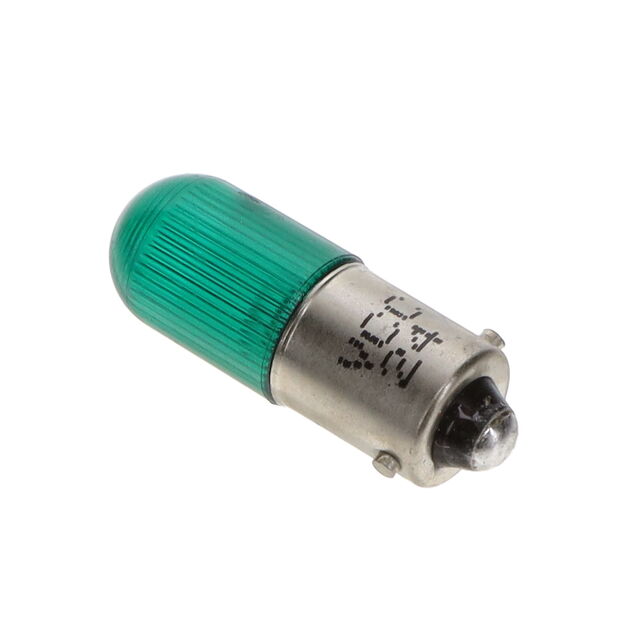

Visual Communications Company - VCC MB403-G24-CG	Multiple Miniature Bayonet Lamps	T - 3 1/4	2400 mcd	520 nm	Single	Green	Miniature Bayonet (BA9S)	General Purpose Lighting	24 V
Visual Communications Company - VCC MB403-R36-CR	Multiple Miniature Bayonet Lamps	T - 3 1/4			Single	Red	Miniature Bayonet (BA9S)	General Purpose Lighting	36 V
Visual Communications Company - VCC MB403-W60-CW-BP	Multiple Miniature Bayonet Lamps	T - 3 1/4	1560 mcd		Single	White	Miniature Bayonet (BA9S)	General Purpose Lighting	60 V
Visual Communications Company - VCC MB403-R6AC-CW	Multiple Miniature Bayonet Lamps	T - 3 1/4	2180 mcd	634 nm	Single	Red	Miniature Bayonet (BA9S)	General Purpose Lighting	6 V
Visual Communications Company - VCC MB403-B15-CB	Multiple Miniature Bayonet Lamps	T - 3 1/4	700 mcd	465 nm	Single	Blue	Miniature Bayonet (BA9S)	General Purpose Lighting	15 V
Visual Communications Company - VCC MB403-A28-CA	Multiple Miniature Bayonet Lamps	T - 3 1/4	2180 mcd	592 nm	Single	Amber	Miniature Bayonet (BA9S)	General Purpose Lighting	28 V
Visual Communications Company - VCC MB403-W28-CW-BP	Multiple Miniature Bayonet Lamps	T - 3 1/4	1560 mcd		Single	White	Miniature Bayonet (BA9S)	General Purpose Lighting	28 V
Visual Communications Company - VCC MB403-R24-CR	Multiple Miniature Bayonet Lamps	T - 3 1/4	2180 mcd	634 nm	Single	Red	Miniature Bayonet (BA9S)	General Purpose Lighting	24 V

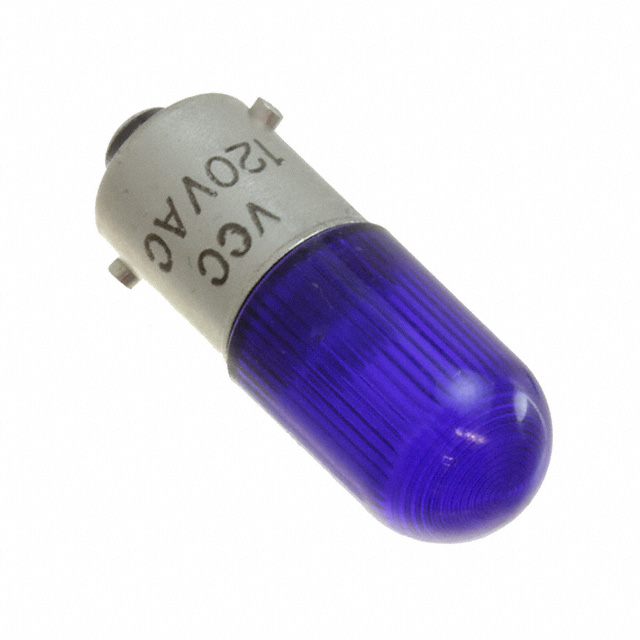

Visual Communications Company - VCC MB403-B120-CB	Multiple Miniature Bayonet Lamps	T - 3 1/4	700 mcd	465 nm	Single	Blue	Miniature Bayonet (BA9S)	General Purpose Lighting	120 VAC
Visual Communications Company - VCC MB403-R15-CR	Multiple Miniature Bayonet Lamps	T - 3 1/4	2180 mcd	634 nm	Single	Red	Miniature Bayonet (BA9S)	General Purpose Lighting	15 V
