WP7143 Series

Catalog

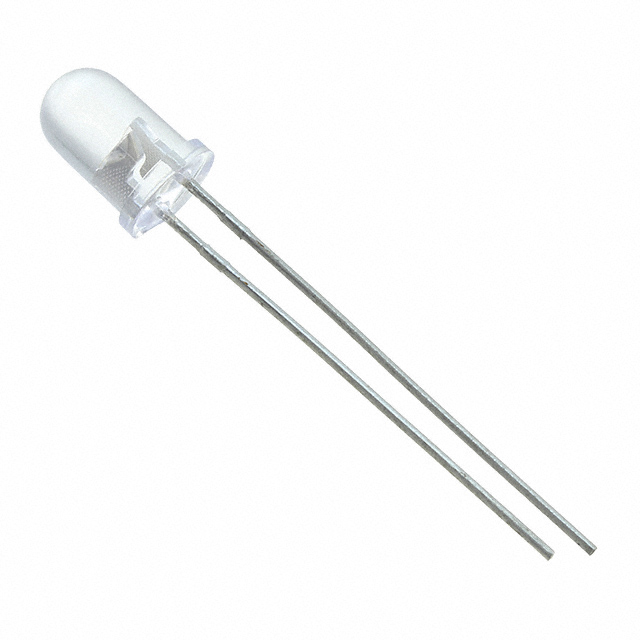

LED RED CLEAR T-1 3/4 T/H

Part	Voltage - Forward (Vf) (Typ)	Lens Style	Mounting Type	Lens Transparency	Millicandela Rating	Wavelength - Dominant	Height (Max) [Max] [z]	Wavelength - Peak	Supplier Device Package	Color	Viewing Angle	Current - Test	Size / Dimension [diameter]	Configuration	Lens Color	Package / Case	Lens Size	Lens Size
Kingbright WP7143SRC/D	1.85 V	Round with Domed Top	Through Hole	Clear	600 mcd	640 nm	8.6 mm	655 nm	T-1 3/4	Red	30 °	20 mA	5 mm	Standard	Colorless	Radial	5 mm	T-1 3/4

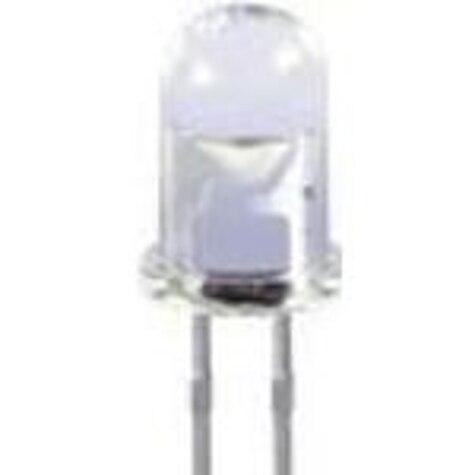

Kingbright WP7143SGC	2.2 V	Round with Domed Top	Through Hole	Clear	300 mcd	568 nm	8.6 mm	565 nm	T-1 3/4	Green	30 °	20 mA	5 mm	Standard	Colorless	Radial	5 mm	T-1 3/4
Kingbright WP7143SURC/E	1.9 V	Round with Domed Top	Through Hole	Clear	1000 mcd	630 nm	8.6 mm	645 nm	T-1 3/4	Red	30 °	20 mA	5 mm	Standard	Colorless	Radial	5 mm	T-1 3/4
