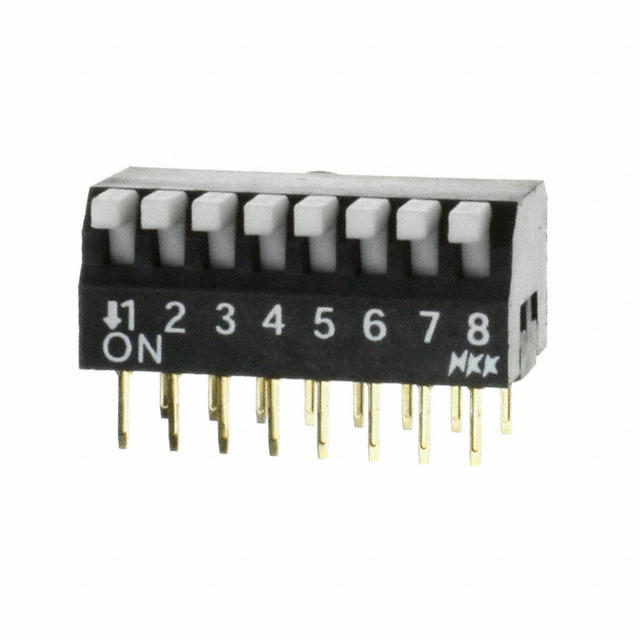

JS0308PP Series
Manufacturer: NKK Switches
Beta
⌘K
DIP / SIP SWITCH, ULTRA MINIATURE, 8 CIRCUITS, PIANO KEY, THROUGH HOLE, SPST, 24 V, 25 MA
| Part | Body Material | Electrical Life | Mechanical Life | Length | Length | Termination Style | Mounting Type | Actuator Type | Current Rating (Amps) | Number of Positions | Washable | Contact Finish | Height Above Board [z] | Height Above Board [z] | Circuit | Contact Material | Pitch | Pitch | Actuator Level | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | Polybutylene Terephthalate (PBT) Glass Filled | 2000 Steps | 2000 Cycles | 0.846 in | 21.49 mm | PC Pin | Right Angle Through Hole | Piano | 25 mA | 8 | Gold | 0.362 in | 9.2 mm | SPST | Phosphor Bronze | 2.54 mm | 0.1 " | Raised | 24 VDC | -25 °C | 70 °C | |
 NKK Switches | Polybutylene Terephthalate (PBT) Glass Filled | 2000 Steps | 2000 Cycles | 0.846 in | 21.49 mm | PC Pin | Right Angle Through Hole | Piano | 25 mA | 8 | Gold | 0.362 in | 9.2 mm | SPST | Phosphor Bronze | 2.54 mm | 0.1 " | Raised | 24 VDC | -25 °C | 70 °C |
