ZWS150 Series

Catalog

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 150 W, 24 V, 6.3 A

Part	Features	Type	Current - Output 1	Mounting Type	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Voltage - Isolation	Applications	Voltage - Output 1	Number of Outputs	Efficiency	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Input [Max]	Voltage - Input [Min]
TDK Corporation ZWS150BAF-24/CO2	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	Open Frame Conformal Coated	6.3 A	Chassis Mount	CE	70 °C	-10 °C	150 W	3000 V	ITE (Commercial)	24 V	1	88 %	6.3 in	160 mm	37 mm	1.46 in	2.95 "	75 mm	265 VAC	85 VAC

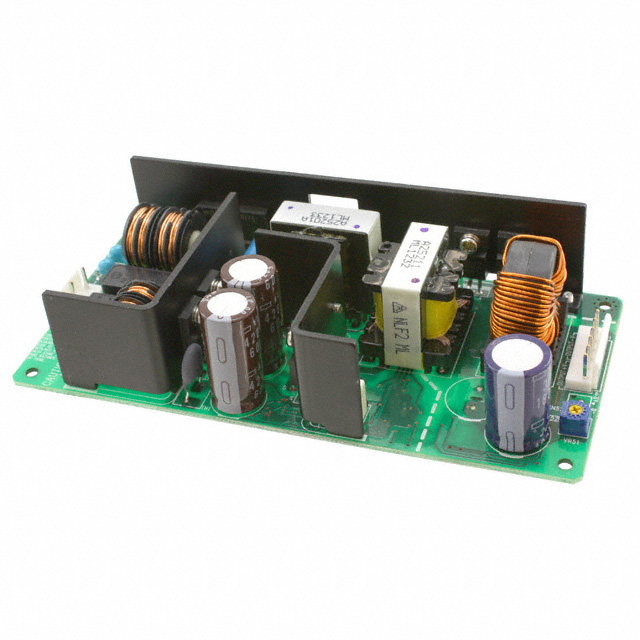

TDK Corporation ZWS150BP-24	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	Open Frame	6.3 A	Chassis Mount	CE	70 °C	-10 °C	150 W	3000 V	ITE (Commercial)	24 V	1	87 %	6.3 in	160 mm	37 mm	1.46 in	2.95 "	75 mm	265 VAC	85 VAC
TDK Corporation ZWS150BP-24/L	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	Open Frame	6.3 A	Chassis Mount	CE	70 °C	-10 °C	150 W	3000 V	ITE (Commercial)	24 V	1	87 %	6.3 in	160 mm	37 mm	1.46 in	2.95 "	75 mm	265 VAC	85 VAC
TDK Corporation ZWS150BAF-48/A	Adjustable Output PFC Universal Input	Enclosed	3.2 A	Chassis Mount	CE	70 °C	-10 °C	150 W	3000 V	ITE (Commercial)	48 V	1	89 %	6.3 in	160 mm	37 mm	1.46 in	2.95 "	75 mm	265 VAC	85 VAC
TDK Corporation ZWS150BAF-5/L	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	Open Frame	30 A	Chassis Mount	CE	70 °C	-10 °C	150 W	3000 V	ITE (Commercial)	5 V	1	85 %	6.3 in	160 mm	37 mm	1.46 in	2.95 "	75 mm	265 VAC	85 VAC
TDK Corporation ZWS150BAF-48/R	Adjustable Output DC Input Capable Load Sharing PFC Remote On/Off Universal Input	Open Frame	3.2 A	Chassis Mount	CE	70 °C	-10 °C	150 W	3000 V	ITE (Commercial)	48 V	1	89 %	6.3 in	160 mm	37 mm	1.46 in	2.95 "	75 mm	265 VAC	85 VAC
TDK Corporation ZWS150BAF-5/A	Adjustable Output PFC Universal Input	Enclosed	30 A	Chassis Mount	CE	70 °C	-10 °C	150 W	3000 V	ITE (Commercial)	5 V	1	85 %	6.3 in	160 mm	37 mm	1.46 in	2.95 "	75 mm	265 VAC	85 VAC
TDK Corporation ZWS150BAF-3/R	Adjustable Output DC Input Capable Load Sharing PFC Remote On/Off Universal Input	Open Frame	30 A	Chassis Mount	CE	70 °C	-10 °C	150 W	3000 V	ITE (Commercial)	3.3 V	1		6.3 in	160 mm	37 mm	1.46 in	2.95 "	75 mm	265 VAC	85 VAC
TDK Corporation ZWS150BP-48	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	Open Frame	3.2 A	Chassis Mount	CE	70 °C	-10 °C	150 W	3000 V	ITE (Commercial)	48 V	1	87 %	6.3 in	160 mm	37 mm	1.46 in	2.95 "	75 mm	265 VAC	85 VAC
TDK Corporation ZWS150BAF-12/CO2	Adjustable Output DC Input Capable Load Sharing PFC Universal Input	Open Frame Conformal Coated	12.5 A	Chassis Mount	CE	70 °C	-10 °C	150 W	3000 V	ITE (Commercial)	12 V	1	85 %	6.3 in	160 mm	37 mm	1.46 in	2.95 "	75 mm	265 VAC	85 VAC
