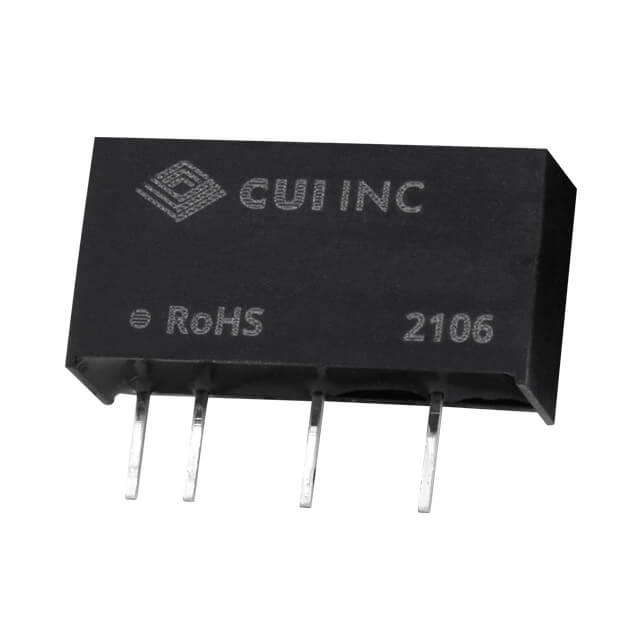

PDME1 Series
Manufacturer: CUI Inc.
Beta
⌘K
DC DC CONVERTER 3.3V 1W
| Part | Number of Outputs | Type | Mounting Type | Voltage - Output 1 | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Isolation | Voltage - Input (Max) [Max] | Applications | Package / Case | Efficiency | Approval Agency | Voltage - Input (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Features | Standard Number | Current - Output (Max) [Max] | Current - Output (Max) | Current - Output (Max) | Voltage - Output 2 | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 1 | Isolated Module | Through Hole | 3.3 V | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 1.5 kV | 5.5 V | ITE (Commercial) | 7-SIP Module 4 Leads | 74 % | CB Scheme EN IEC UL | 4.5 V | 105 C | -40 °C | SCP | 55024 55032 Class A 62368-1 | 303 mA | ||||
CUI Inc. | 1 | Isolated Module | Through Hole | 12 V | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 1.5 kV | 5.5 V | ITE (Commercial) | 7-SIP Module 4 Leads | 83 % | CB Scheme EN IEC UL | 4.5 V | 105 C | -40 °C | SCP | 55024 55032 Class A 62368-1 | 84 mA | ||||
CUI Inc. | 2 | Isolated Module | Through Hole | 5 V | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 1.5 kV | 5.5 V | ITE (Commercial) | 7-SIP Module 5 Leads | CB Scheme EN IEC UL | 4.5 V | 105 C | -40 °C | SCP | 55024 55032 Class A 62368-1 | 100 mA | 100 mA | -5 V | |||
CUI Inc. | 2 | Isolated Module | Through Hole | 12 V | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 1.5 kV | 5.5 V | ITE (Commercial) | 7-SIP Module 5 Leads | 83 % | CB Scheme EN IEC UL | 4.5 V | 105 C | -40 °C | SCP | 55024 55032 Class A 62368-1 | -12 V | 42 mA |
