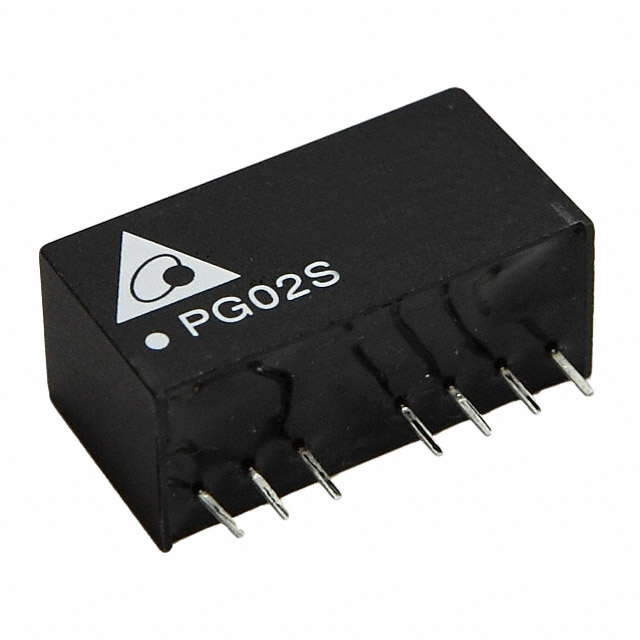

PG02S Series

Catalog

MODULE DC-DC 48VIN 1-OUT 5V 0.4A 2W 7-PIN SIP MODULE

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Type	Features	Voltage - Isolation	Voltage - Output 1	Power (Watts)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Control Features	Current - Output (Max) [Max]	Package / Case	Efficiency	Applications	Number of Outputs
Delta Electronics PG02S4805A	Through Hole	85 °C	-40 C	75 V	Isolated Module	Remote On/Off SCP UVLO	1000 V	5 V	2 W	21.8 mm	0.86 "	9.1 mm	0.44 in	11.2 mm	0.36 in	36 V	Active Low Enable	400 mA	8-DIP Module 7 Leads	73 %	Medical	1
Delta Electronics PG02S4803A	Through Hole	85 °C	-40 C	75 V	Isolated Module	Remote On/Off SCP UVLO	1000 V	3.3 V	2 W	21.8 mm	0.86 "	9.1 mm	0.44 in	11.2 mm	0.36 in	36 V	Active Low Enable	500 mA	8-DIP Module 7 Leads	71 %	Medical	1
Delta Electronics PG02S1205A	Through Hole	85 °C	-40 C	18 V	Isolated Module	Remote On/Off SCP UVLO	1000 V	5 V	2 W	21.8 mm	0.86 "	9.1 mm	0.44 in	11.2 mm	0.36 in	9 V	Active Low Enable	400 mA	8-SIP Module 7 Leads	77 %	Medical	1
Delta Electronics PG02S1203A	Through Hole	85 °C	-40 C	18 V	Isolated Module	Remote On/Off SCP UVLO	1000 V	3.3 V	2 W	21.8 mm	0.86 "	9.1 mm	0.44 in	11.2 mm	0.36 in	9 V	Active Low Enable	500 mA	8-DIP Module 7 Leads	73 %	Medical	1
Delta Electronics PG02S2412A	Through Hole	85 °C	-40 C	36 V	Isolated Module	Remote On/Off SCP UVLO	1000 V	12 V	2 W	21.8 mm	0.86 "	9.1 mm	0.44 in	11.2 mm	0.36 in	18 V	Active Low Enable	167 mA	8-DIP Module 7 Leads	81 %	Medical	1
Delta Electronics PG02S0512A	Through Hole	85 °C	-40 C	9 V	Isolated Module	Remote On/Off SCP UVLO	1000 V	12 V	2 W	21.8 mm	0.86 "	9.1 mm	0.44 in	11.2 mm	0.36 in	4.5 V	Active Low Enable	167 mA	8-DIP Module 7 Leads	75 %	Medical	1
