LCAS Series
Manufacturer: Panduit Corp
Beta
⌘K

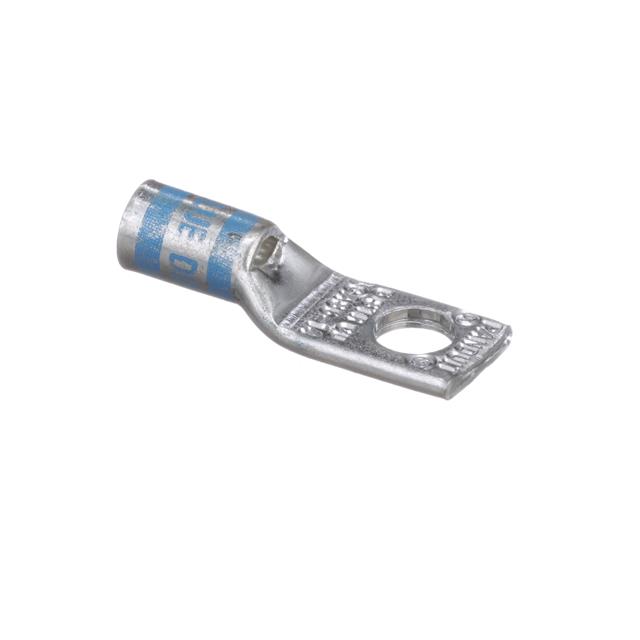

LUG TERMINAL, LCAS SERIES, CRIMP, 6 AWG, COMPRESSION LUG, M6
| Part | Contact Finish | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Diameter - Ring ID | Diameter - Ring ID | Contact Material | Diameter - Barrel OD [diameter] | Diameter - Barrel OD [diameter] | Insulation | Wire Gauge | Stud/Tab Size | Color | Mounting Type | Length - Overall [x] | Length - Overall [x] | Width - Outer Edges [x] | Width - Outer Edges [x] | Terminal Type | Terminal Style | Tab Thickness | Tab Thickness | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | Electro-Tin | 0.22 in | 5.59 mm | 0.27 in | 6.86 mm | Copper | 0.31 in | 7.87 mm | Non-Insulated | 6 AWG | 0.25 Stud | Blue | Free Hanging (In-Line) | 1.28 in | 32.51 mm | 12.19 mm | 0.48 " | Rectangular Tongue | Single Stud Hole | 0.08 " | 2.03 mm | Barrel Crimp |
