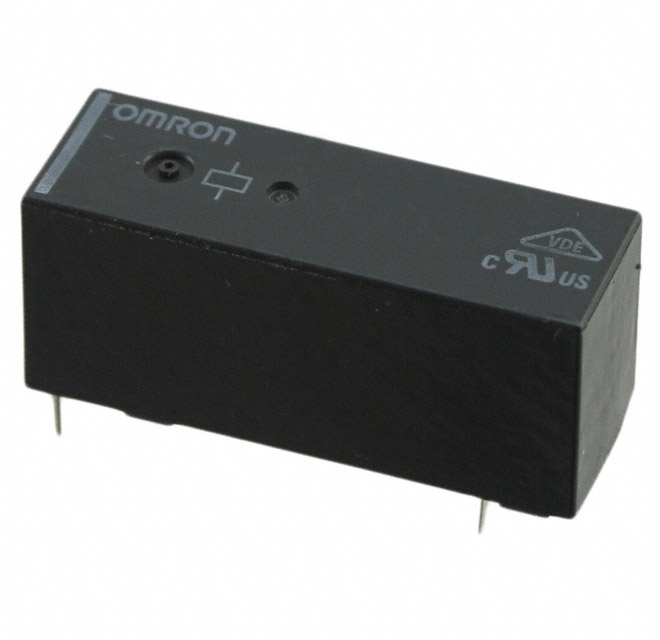

G6RL-1-S Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPDT 8A 24V
| Part | Coil Type | Coil Voltage | Seal Rating | Release Time | Coil Current | Approval Agency | Operate Time | Switching Voltage | Load - Max Switching | Must Release Voltage | Must Operate Voltage | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Relay Type | Coil Resistance | Contact Rating (Current) | Contact Form | Termination Style | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Non Latching | 24 VDC | Sealed - Flux Protection | 5 ms | 12.6 mA | cURus VDE | 10 ms | 250 VAC | 2000 VA | 2.4 VDC | 19.2 VDC | Silver Tin Indium (AgSnIn) | 85 °C | -40 °C | General Purpose | 1.9 kOhms | 8 A | SPDT (1 Form C) | PC Pin | Through Hole |
Omron Electronics Inc-EMC Div | Non Latching | 5 VDC | Sealed - Flux Protection | 5 ms | 60.2 mA | cURus VDE | 10 ms | 250 VAC | 2000 VA | 0.5 VDC | 4 VDC | Silver Tin Indium (AgSnIn) | 85 °C | -40 °C | General Purpose | 83 Ohms | 8 A | SPDT (1 Form C) | PC Pin | Through Hole |
Omron Electronics Inc-EMC Div | Non Latching | 12 VDC | Sealed - Flux Protection | 5 ms | 25.2 mA | cURus VDE | 10 ms | 250 VAC | 2000 VA | 1.2 VDC | 9.6 VDC | Silver Tin Indium (AgSnIn) | 85 °C | -40 °C | General Purpose | 476 Ohms | 8 A | SPDT (1 Form C) | PC Pin | Through Hole |
