ISRA Series

Catalog

ISRA PULSE TRANSFORMER SMD 0.5A

Part	Weight	Weight	Turns Ratio - Primary:Secondary	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	ET (Volt-Time)	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Transformer Type	Weight [diameter]	Weight [diameter]	Height - Seated (Max)	Weight [custom]	Weight [custom]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
SCHURTER Inc. ISRA-0239-D502	0.352 oz	9.97 g	1:1	2.2 mH	14 mm	0.551 in	100 °C	-25 °C	400 VµS	Surface Mount	0.894 in	22.3 mm	0.878 "	22.7 mm	SCR and Triac Trigger (Encapsulated)

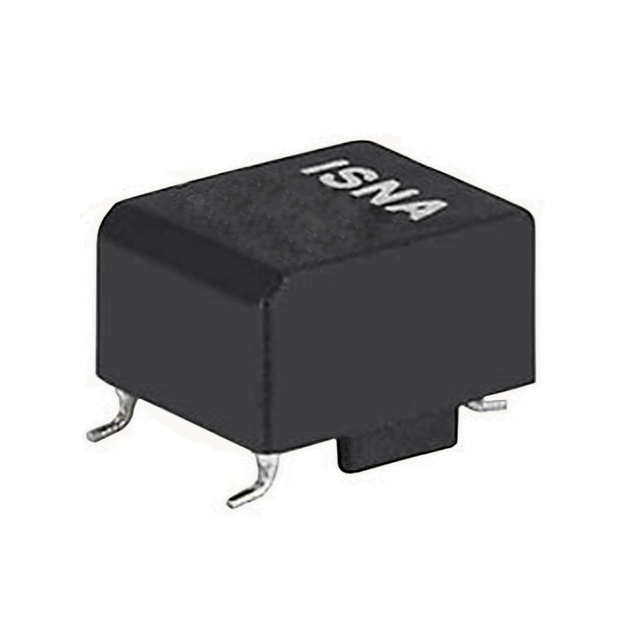

SCHURTER Inc. ISRA-0249-D104			1:1	3.5 mH		0.532 "	100 °C	-25 °C	300 VµS	Surface Mount	0.717 in	17.8 mm	0.701 in	18.2 mm	SCR and Triac Trigger (Encapsulated)	0.32 oz	9.12 g	13.5 mm
SCHURTER Inc. ISRA-0235-D103			1:1	2.8 mH			100 °C	-25 °C		Surface Mount	0.598 in	13 mm	0.512 "	15.2 mm	Isolation and Data Interface (Encapsulated)				0.28 oz	7.98 g	11 mm	0.433 in
