GEC05S Series

Catalog

CONN HEADER SMD R/A 5POS 2.54MM

Part	Number of Positions Loaded	Contact Length - Mating [x]	Contact Length - Mating [x]	Style	Fastening Type	Mounting Type	Current Rating (Amps)	Number of Rows	Shrouding	Insulation Height	Insulation Height	Insulation Material	Material Flammability Rating	Contact Shape	Contact Type	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Length - Mating

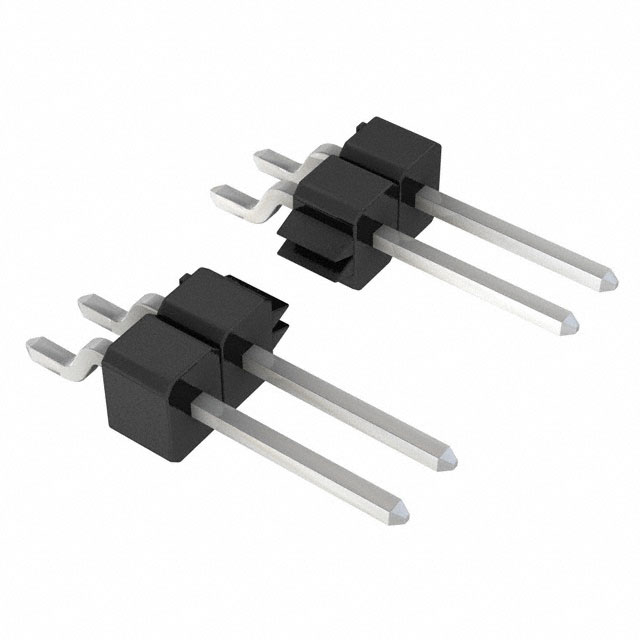

Sullins Connector Solutions GEC05SGSN-M89	All	0.318 "	8.08 mm	Board to Board Cable	Push-Pull	Surface Mount Right Angle	3 A	1	Unshrouded	3.56 mm	0.14 in	Nylon 9T Polyamide (PA9T)	UL94 V-0	Square	Male Pin	Phosphor Bronze	2.54 µm	100 µin	2.54 çm	100 çin	Tin	Solder	-65 ░C	150 °C	Breakaway Header	Black	0.1 in	2.54 mm
Sullins Connector Solutions GEC05SABN-M30	All	0.23 in		Board to Board Cable	Push-Pull	Surface Mount	3 A	1	Unshrouded	2.54 mm	0.1 in	Nylon 9T Polyamide (PA9T)	UL94 V-0	Square	Male Pin	Phosphor Bronze	2.54 µm	100 µin	2.54 çm	100 çin	Tin	Solder	-65 ░C	150 °C	Breakaway Header	Black	0.1 in	2.54 mm	5.84 mm

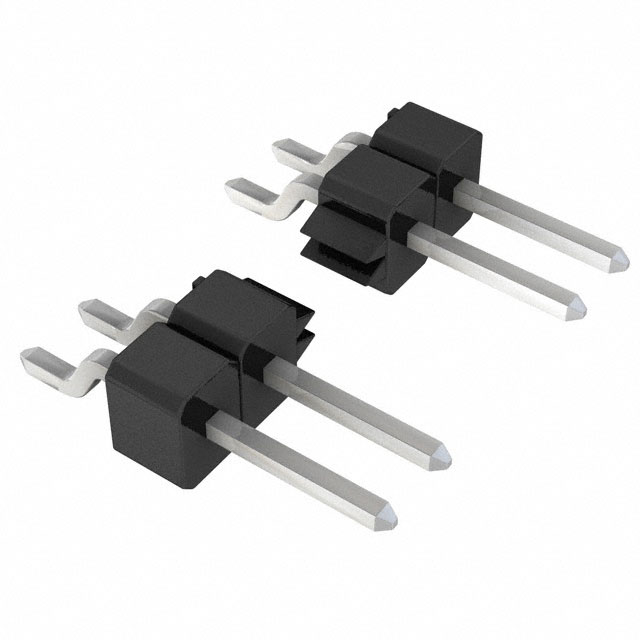

Sullins Connector Solutions GEC05SBSN-M89	All	0.23 in		Board to Board Cable	Push-Pull	Surface Mount Right Angle	3 A	1	Unshrouded	3.56 mm	0.14 in	Nylon 9T Polyamide (PA9T)	UL94 V-0	Square	Male Pin	Phosphor Bronze	2.54 µm	100 µin	2.54 çm	100 çin	Tin	Solder	-65 ░C	150 °C	Breakaway Header	Black	0.1 in	2.54 mm	5.84 mm
