9035-1513 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

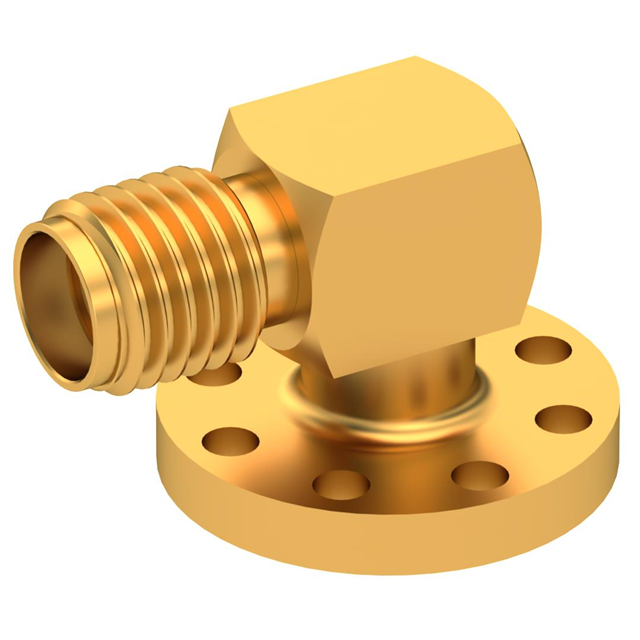

SMA / RIGHT ANGLE JACK RECEPTACL
| Part | Center Contact Plating | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Finish | Body Material | Frequency - Max [Max] | Impedance | Contact Termination | Connector Type | Fastening Type | Mounting Type | Connector Style | Shield Termination | Housing Color | Center Contact Material | Mounting Feature | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | 500 | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Stainless Steel | 18 GHz | 50 Ohms | Solder | Female Socket Jack | Threaded | Right Angle Surface Mount | SMA | Solder | Gold | Beryllium Copper | Flange | 1 |
 Radiall USA, Inc. | Gold | 500 | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Stainless Steel | 18 GHz | 50 Ohms | Solder | Female Socket Jack | Threaded | Right Angle Surface Mount | SMA | Solder | Gold | Beryllium Copper | Flange | 1 |
 Radiall USA, Inc. | Gold | 500 | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Stainless Steel | 18 GHz | 50 Ohms | Solder | Female Socket Jack | Threaded | Right Angle Surface Mount | SMA | Screw | Gold | Beryllium Copper | Flange | 1 |
