M2024TJ Series

Catalog

SWITCH ROCKER SP3T 6A 125V

Part	Mechanical Life	Electrical Life	Approval Agency	Mounting Type	Circuit	Voltage Rating - DC	Current Rating (Amps)	Termination Style	Actuator Marking	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - AC	Switch Function	Features	Color - Actuator/Cap	Illumination Voltage (Nominal)	Illumination Type, Color

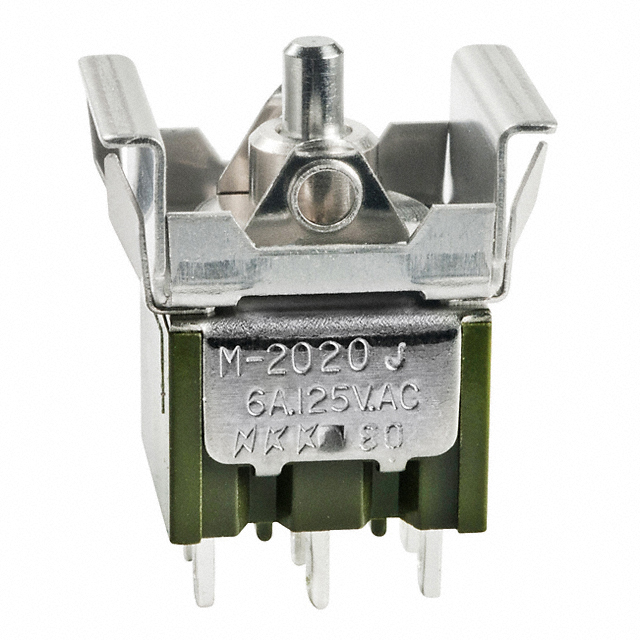

NKK Switches M2024TJW01-FH-1H	50000 Cycles	25000 Steps	CSA UL	Panel Mount Snap-In	SP3T	30 V	3 A 6 A	Solder Lug	No Marking	Concave	85 °C	-30 ░C	15.9 mm	13.1 mm	125 V	On-On-On	Jumper needed to achieve triple throw
NKK Switches M2024TJW03-FA-1A	50000 Cycles	25000 Steps	CSA UL	Panel Mount Snap-In	SP3T	30 V	3 A 6 A	PC Pin	No Marking	Concave	85 °C	-30 ░C	15.9 mm	13.1 mm	125 V	On-On-On	Jumper needed to achieve triple throw	Black
NKK Switches M2024TJW01-GA-1A	50000 Cycles	25000 Steps	CSA UL	Panel Mount Snap-In	SP3T	30 V	3 A 6 A	Solder Lug	No Marking	Paddle	85 °C	-30 ░C	15.9 mm	13.1 mm	125 V	On-On-On	Jumper needed to achieve triple throw	Black
NKK Switches M2024TJW01	50000 Cycles	25000 Steps	CSA UL	Panel Mount Snap-In	SP3T	30 V	3 A 6 A	Solder Lug	Varies by Cap	Actuator Arm Cap Required	85 °C	-30 ░C	15.9 mm	13.1 mm	125 V	On-On-On	Jumper needed to achieve triple throw
NKK Switches M2024TJW01-GB-1A	50000 Cycles	25000 Steps	CSA UL	Panel Mount Snap-In	SP3T	30 V	3 A 6 A	Solder Lug	No Marking	Paddle	85 °C	-30 ░C	15.9 mm	13.1 mm	125 V	On-On-On	Jumper needed to achieve triple throw	White
NKK Switches M2024TJW02	50000 Cycles	25000 Steps	CSA UL	Panel Mount Snap-In	SP3T	30 V	3 A 6 A	Quick Connect - 0.062" (1.5mm)	Varies by Cap	Actuator Arm Cap Required	85 °C	-30 ░C	15.9 mm	13.1 mm	125 V	On-On-On	Jumper needed to achieve triple throw
NKK Switches M2024TJW03	50000 Cycles	25000 Steps	CSA UL	Panel Mount Snap-In	SP3T	30 V	3 A 6 A	PC Pin	Varies by Cap	Actuator Arm Cap Required	85 °C	-30 ░C	15.9 mm	13.1 mm	125 V	On-On-On	Jumper needed to achieve triple throw
NKK Switches M2024TJG01	50000 Cycles	50000 Cycles	CSA UL	Panel Mount Snap-In	SP3T	28 V	0.4 VA	Solder Lug	Varies by Cap	Actuator Arm Cap Required	85 °C	-30 ░C	15.9 mm	13.1 mm	28 V	On-On-On	Jumper needed to achieve triple throw
NKK Switches M2024TJW03-GB-2A-C	50000 Cycles	25000 Steps	CSA UL	Panel Mount Snap-In	SP3T	30 V	3 A 6 A	PC Pin	No Marking	Paddle - Illuminated	85 °C	-30 ░C	15.9 mm	13.1 mm	125 V	On-On-On	Jumper needed to achieve triple throw	White	2.8 VDC	LED Red
NKK Switches M2024TJW03-GA-1A	50000 Cycles	25000 Steps	CSA UL	Panel Mount Snap-In	SP3T	30 V	3 A 6 A	PC Pin	No Marking	Paddle	85 °C	-30 ░C	15.9 mm	13.1 mm	125 V	On-On-On	Jumper needed to achieve triple throw	Black
