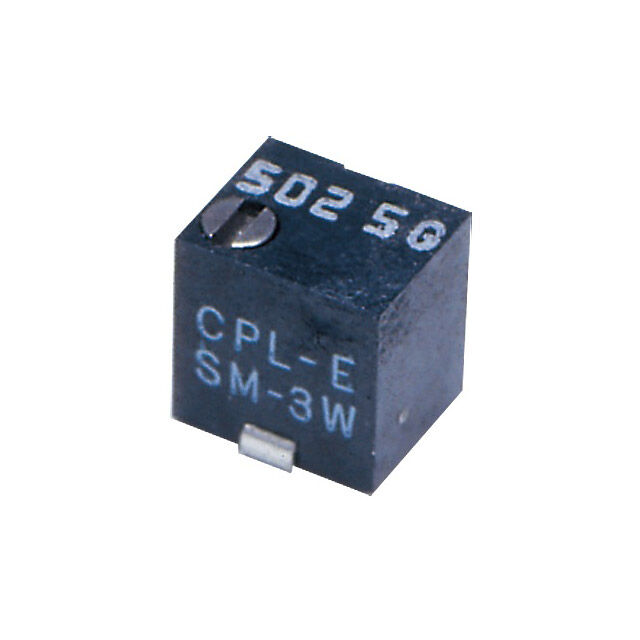

SM-3TA Series

Manufacturer: Nidec Components Corporation

Catalog

TRIMMER 5KOHM 0.125W J LEAD SIDE

Part	Tolerance	Termination Style	Adjustment Type	Resistive Material	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Turns	Temperature Coefficient	Resistance	Power (Watts)	Power (Watts)
Nidec Components Corporation SM-3TA502	20 %	J Lead	Side Adjustment	Cermet	Surface Mount	0.154 in	3.9 mm	3.9 mm	0.154 in	11	100 ppm/°C	5 kOhms	0.125 W	0.125 W
Nidec Components Corporation SM-3TA500	20 %	J Lead	Side Adjustment	Cermet	Surface Mount	0.154 in	3.9 mm	3.9 mm	0.154 in	11	100 ppm/°C	50 Ohms	0.125 W	0.125 W
Nidec Components Corporation SM-3TA205	20 %	J Lead	Side Adjustment	Cermet	Surface Mount	0.154 in	3.9 mm	3.9 mm	0.154 in	11	100 ppm/°C	2 MOhms	0.125 W	0.125 W
Nidec Components Corporation SM-3TA103	20 %	J Lead	Side Adjustment	Cermet	Surface Mount	0.154 in	3.9 mm	3.9 mm	0.154 in	11	100 ppm/°C	10000 Ohms	0.125 W	0.125 W
Nidec Components Corporation SM-3TA203	20 %	J Lead	Side Adjustment	Cermet	Surface Mount	0.154 in	3.9 mm	3.9 mm	0.154 in	11	100 ppm/°C	20 kOhms	0.125 W	0.125 W
Nidec Components Corporation SM-3TA104	20 %	J Lead	Side Adjustment	Cermet	Surface Mount	0.154 in	3.9 mm	3.9 mm	0.154 in	11	100 ppm/°C	100 kOhms	0.125 W	0.125 W
Nidec Components Corporation SM-3TA105	20 %	J Lead	Side Adjustment	Cermet	Surface Mount	0.154 in	3.9 mm	3.9 mm	0.154 in	11	100 ppm/°C	1 MOhms	0.125 W	0.125 W
Nidec Components Corporation SM-3TA202	20 %	J Lead	Side Adjustment	Cermet	Surface Mount	0.154 in	3.9 mm	3.9 mm	0.154 in	11	100 ppm/°C	2 kOhms	0.125 W	0.125 W
Nidec Components Corporation SM-3TA102	20 %	J Lead	Side Adjustment	Cermet	Surface Mount	0.154 in	3.9 mm	3.9 mm	0.154 in	11	100 ppm/°C	1000 Ohms	0.125 W	0.125 W
Nidec Components Corporation SM-3TA204	20 %	J Lead	Side Adjustment	Cermet	Surface Mount	0.154 in	3.9 mm	3.9 mm	0.154 in	11	100 ppm/°C	200000 Ohms	0.125 W	0.125 W
