EDZ1710 Series

Catalog

TERM BLOCK PLUG 14POS 3.81MM

Part	Housing Material	Wire Strip Length	Torque - Screw	Torque - Screw	Contact Material	Pitch	Pitch	Positions Per Level	Mounting Type	Type	Termination Style	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Positions	Voltage - UL	Operating Temperature [Min]	Operating Temperature [Max]	Color	Number of Levels	Wire Gauge or Range - mm²	Wire Gauge or Range - mm˛	Positions Per Level [custom]

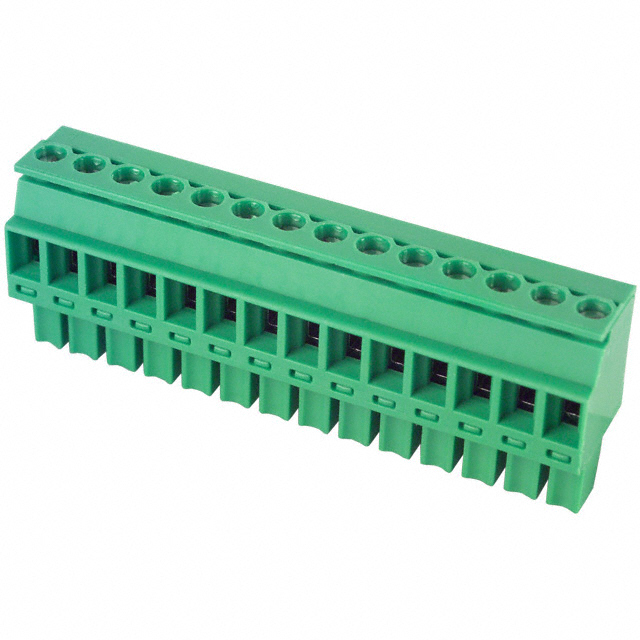

On Shore Technology Inc. EDZ1710/14	Polyamide (PA) Nylon	7 mm	3.5 Lb-In	0.4 Nm	Copper Tin Alloy	3.81 mm	0.15 in	14	Free Hanging (In-Line)	Plug Female Sockets	Screw	28 AWG	16 AWG	14	300 V	-30 ░C	105 ░C	Green	1	1.5 mm²

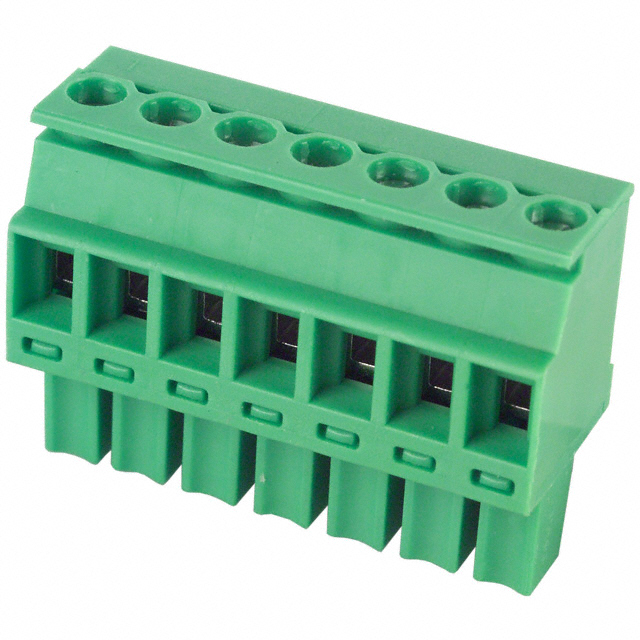

On Shore Technology Inc. EDZ1710/7	Polyamide (PA) Nylon	7 mm	3.5 Lb-In	0.4 Nm	Copper Tin Alloy	3.81 mm	0.15 in		Free Hanging (In-Line)	Plug Female Sockets	Screw	28 AWG	16 AWG	7	300 V	-30 ░C	105 ░C	Green	1	1.5 mm²	1.5 mm˛	7
On Shore Technology Inc. EDZ1710/18	Polyamide (PA) Nylon	7 mm	3.5 Lb-In	0.4 Nm	Copper Tin Alloy	3.81 mm	0.15 in	18	Free Hanging (In-Line)	Plug Female Sockets	Screw	28 AWG	16 AWG	18	300 V	-30 ░C	105 ░C	Green	1	1.5 mm²

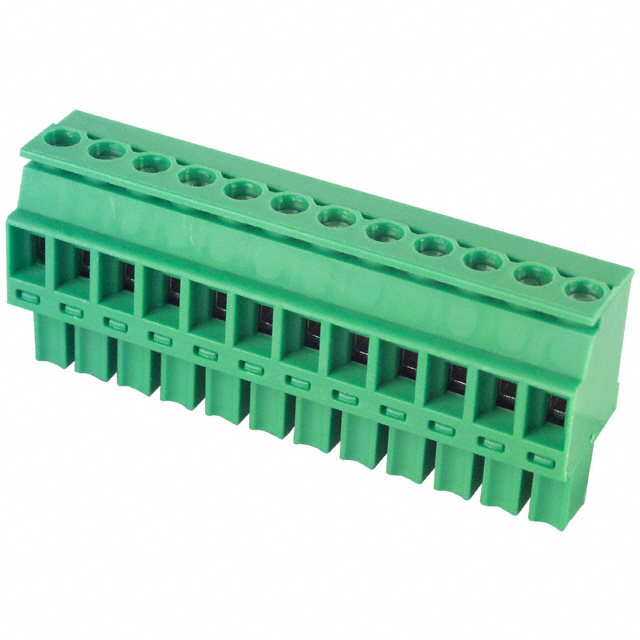

On Shore Technology Inc. EDZ1710/12	Polyamide (PA) Nylon	7 mm	3.5 Lb-In	0.4 Nm	Copper Tin Alloy	3.81 mm	0.15 in	12	Free Hanging (In-Line)	Plug Female Sockets	Screw	28 AWG	16 AWG	12	300 V	-30 ░C	105 ░C	Green	1	1.5 mm²	1.5 mm˛

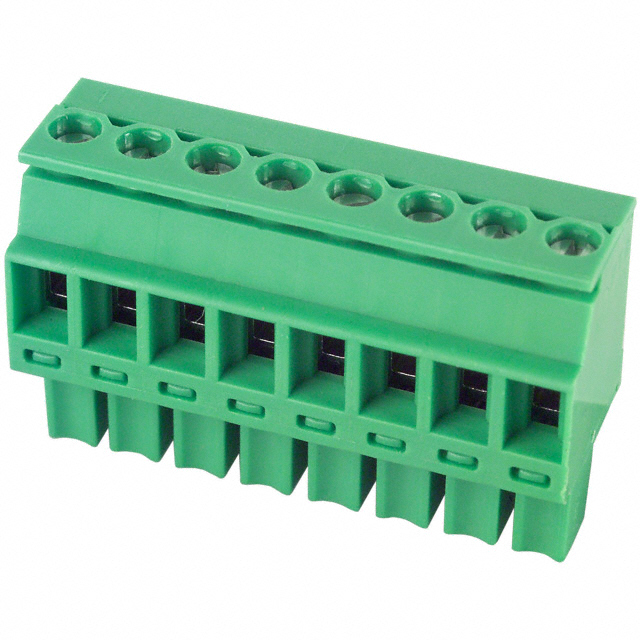

On Shore Technology Inc. EDZ1710/8	Polyamide (PA) Nylon	7 mm	3.5 Lb-In	0.4 Nm	Copper Tin Alloy	3.81 mm	0.15 in	8	Free Hanging (In-Line)	Plug Female Sockets	Screw	28 AWG	16 AWG	8	300 V	-30 ░C	105 ░C	Green	1	1.5 mm²	1.5 mm˛

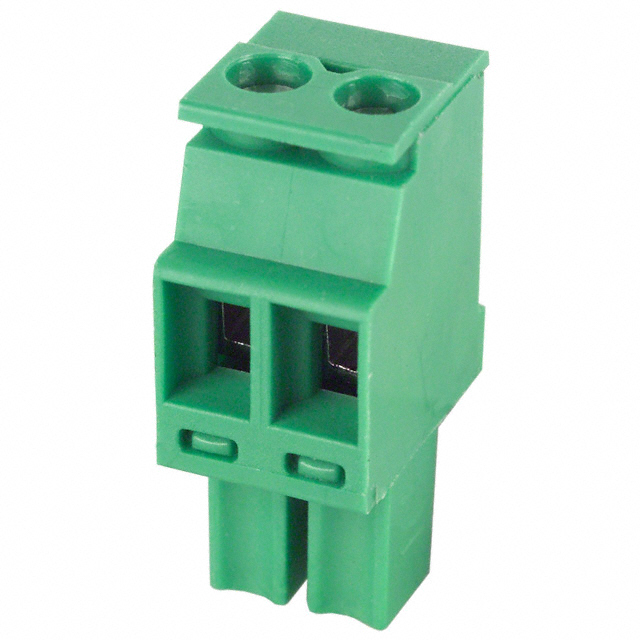

On Shore Technology Inc. EDZ1710/2	Polyamide (PA) Nylon	7 mm	3.5 Lb-In	0.4 Nm	Copper Tin Alloy	3.81 mm	0.15 in	2	Free Hanging (In-Line)	Plug Female Sockets	Screw	28 AWG	16 AWG	2	300 V	-30 ░C	105 ░C	Green	1	1.5 mm²	1.5 mm˛
On Shore Technology Inc. EDZ1710/20	Polyamide (PA) Nylon	7 mm	3.5 Lb-In	0.4 Nm	Copper Tin Alloy	3.81 mm	0.15 in	20	Free Hanging (In-Line)	Plug Female Sockets	Screw	28 AWG	16 AWG	20	300 V	-30 ░C	105 ░C	Green	1	1.5 mm²
On Shore Technology Inc. EDZ1710/16	Polyamide (PA) Nylon	7 mm	3.5 Lb-In	0.4 Nm	Copper Tin Alloy	3.81 mm	0.15 in	16	Free Hanging (In-Line)	Plug Female Sockets	Screw	28 AWG	16 AWG	16	300 V	-30 ░C	105 ░C	Green	1	1.5 mm²	1.5 mm˛
