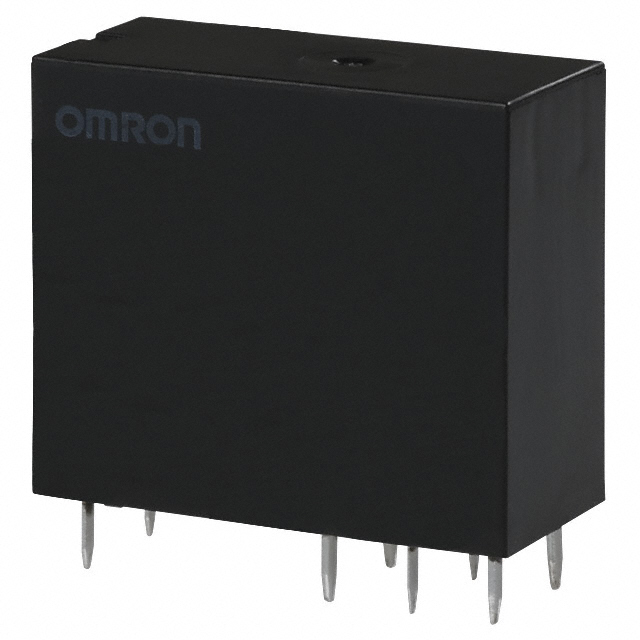

G2R24 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE DPDT 4A 24V
| Part | Load - Max Switching | Must Release Voltage | Must Operate Voltage | Release Time | Coil Type | Mounting Type | Contact Form | Seal Rating | Coil Voltage | Contact Rating (Current) | Operate Time | Relay Type | Termination Style | Switching Voltage | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Coil Current | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 500 W 1520 VA | 3.6 VDC | 16.8 VDC | 5 ms | Non Latching | Through Hole | DPDT (2 Form C) | Sealed - Fully | 24 VDC | 4 A | 15 ms | General Purpose | PC Pin | 125 VDC 380 VAC | CSA TUV UR VDE | -40 °C | 70 °C | 21.8 mA | Gold (Au) Silver (Ag) |
