78049 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

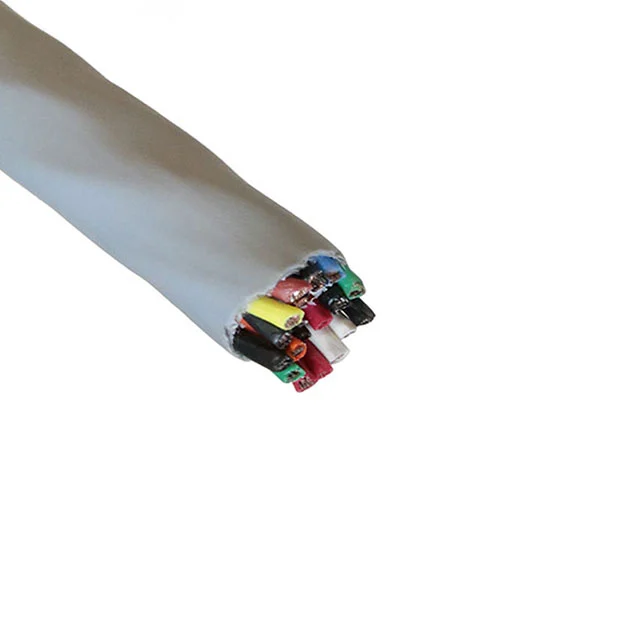

MULTI-PAIR 18COND 20AWG SLATE 1'
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Features | Conductor Material | Jacket (Insulation) Material | Number of Conductors | Wire Gauge | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Conductor Insulation | Voltage | Ratings | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 80 °C | -40 C | Biological Compatibility Rip Cord | Copper Tinned | Polyphenylene Ether Modified (mPPE) | 18 | 20 AWG | Slate | 19 | 32 AWG | Multi-Pair | 300 mm | 1 ' | 0.356 " | 9.04 mm | 0.381 mm | 0.015 in | Polyphenylene Ether Modified (mPPE) | 300 VDC | ISO 10993 UL Style 21460 | ||
ALPHA WIRE | 80 °C | -40 C | Biological Compatibility Rip Cord | Copper Tinned | Polyphenylene Ether Modified (mPPE) | 18 | 20 AWG | Slate | 19 | 32 AWG | Multi-Pair | 30.5 m | 100 ft | 0.356 " | 9.04 mm | 0.381 mm | 0.015 in | Polyphenylene Ether Modified (mPPE) | 300 VDC | ISO 10993 UL Style 21460 | ||
ALPHA WIRE | 80 °C | -40 C | Biological Compatibility Rip Cord | Copper Tinned | Polyphenylene Ether Modified (mPPE) | 18 | 20 AWG | Slate | 19 | 32 AWG | Multi-Pair | 0.356 " | 9.04 mm | 0.381 mm | 0.015 in | Polyphenylene Ether Modified (mPPE) | 300 VDC | ISO 10993 UL Style 21460 | 304.8 m | 1000 ft |
