A6S-2102 Series

Catalog

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Number of Positions	Pitch	Pitch	Length	Length	Termination Style	Voltage Rating	Mounting Type	Contact Finish	Features	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Level	Circuit	Actuator Type	Height Above Board [z]	Height Above Board [z]	Mechanical Life	Electrical Life	Washable	Current Rating (Amps)

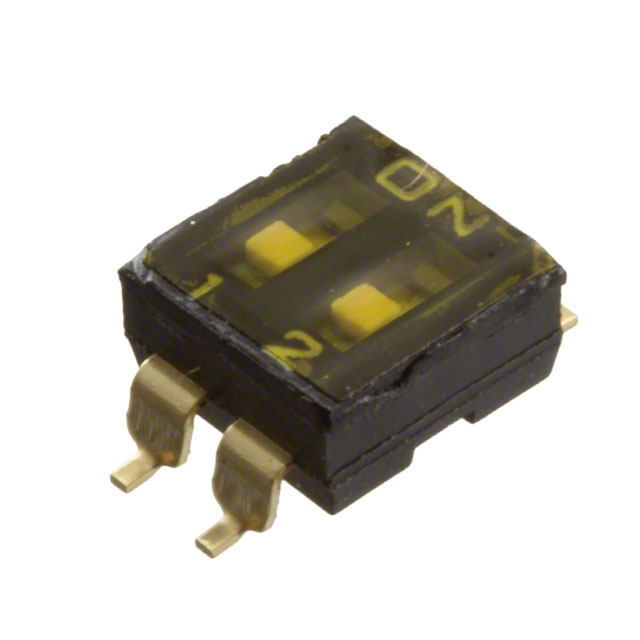

Omron Electronics Inc-EMC Div A6S-2102-PH(VNM)	2	2.54 mm	0.1 "	6.02 mm	0.237 in	Gull Wing	24 VDC	Surface Mount	Gold	Tape Seal	-20 ░C	70 °C	Flush Recessed	SPST	Slide (Standard)	3.7 mm	0.146 in	1000 Cycles	1000 Cycles		25 mA

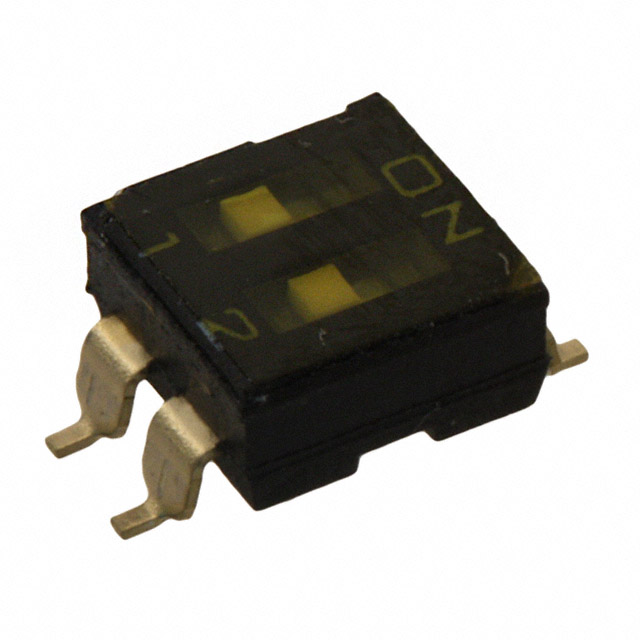

Omron Electronics Inc-EMC Div A6S-2102-H(VNM)	2	2.54 mm	0.1 "	6.02 mm	0.237 in	Gull Wing	24 VDC	Surface Mount	Gold	Tape Seal	-20 ░C	70 °C	Flush Recessed	SPST	Slide (Standard)	3.7 mm	0.146 in	1000 Cycles	1000 Cycles		25 mA
