630-M50 Series
Manufacturer: EDAC Inc.
Beta
⌘K
RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Dielectric Material | Material Flammability Rating | Connector Type | Mounting Type | Contact Finish | Features | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Style | Backset Spacing | Backset Spacing | Flange Feature | Contact Type | Contact Finish Thickness | Number of Positions | Current Rating (Amps) | Number of Rows [custom] | Termination | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

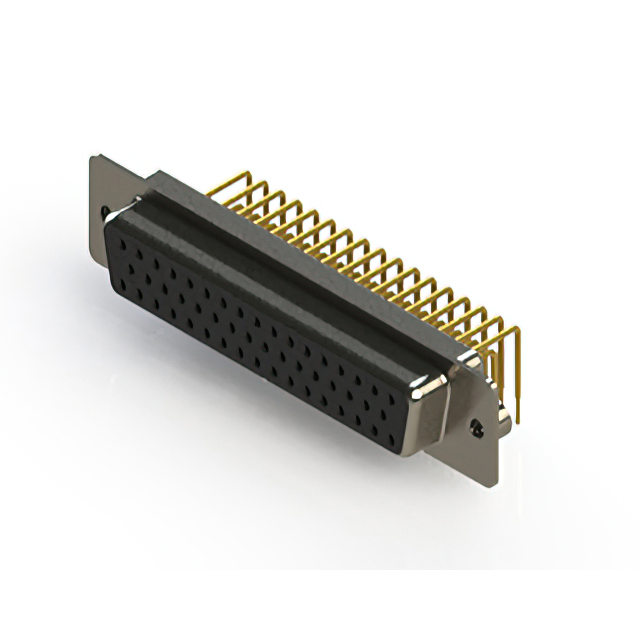

 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | Polyamide (PA6T) Nylon 6T | UL94 V-0 | Receptacle Female Sockets | Right Angle Through Hole | Gold | Shielded | 5 | D DD | D-Sub | 9.4 mm | 0.37 in | Housing/Shell (Unthreaded) | Signal | Flash | 50 | 5 A | 3 | Solder | ||||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | Polyamide (PA6T) Nylon 6T | UL94 V-0 | Receptacle Female Sockets | Right Angle Through Hole | Gold | Shielded | 5 | D DD | D-Sub | 9.4 mm | 0.37 in | Housing/Shell (Unthreaded) | Signal | 50 | 5 A | 3 | Solder | Nickel Plated Steel | 30 Áin | 0.76 Ám | ||

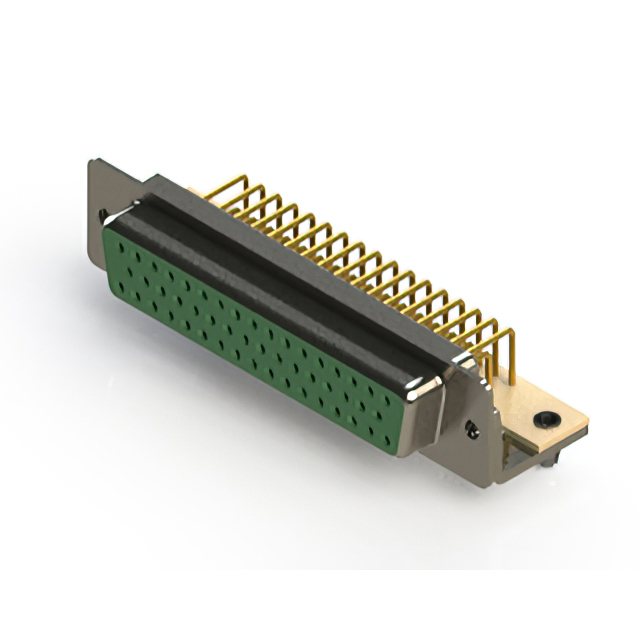

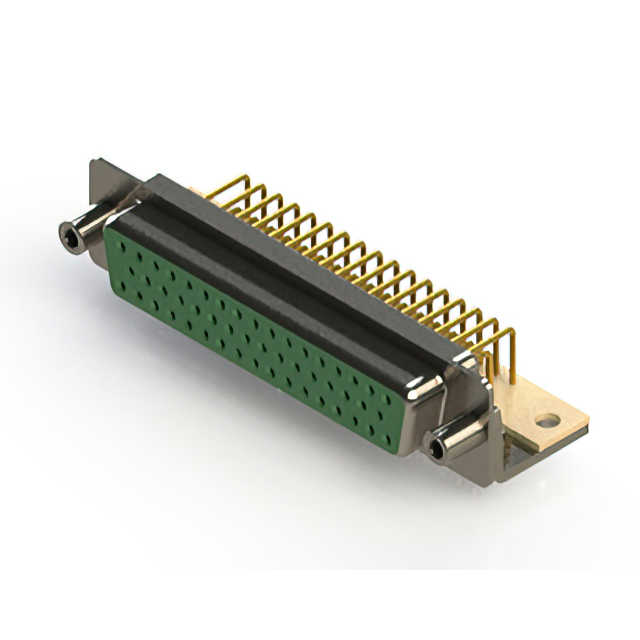

 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Green | Polyamide (PA6T) Nylon 6T | UL94 V-0 | Receptacle Female Sockets | Right Angle Through Hole | Gold | Mounting Brackets Shielded | 5 | D DD | D-Sub | 9.4 mm | 0.37 in | 4-40 | Signal | 50 | 5 A | 3 | Solder | 15 µin | 0.38 µm | |||

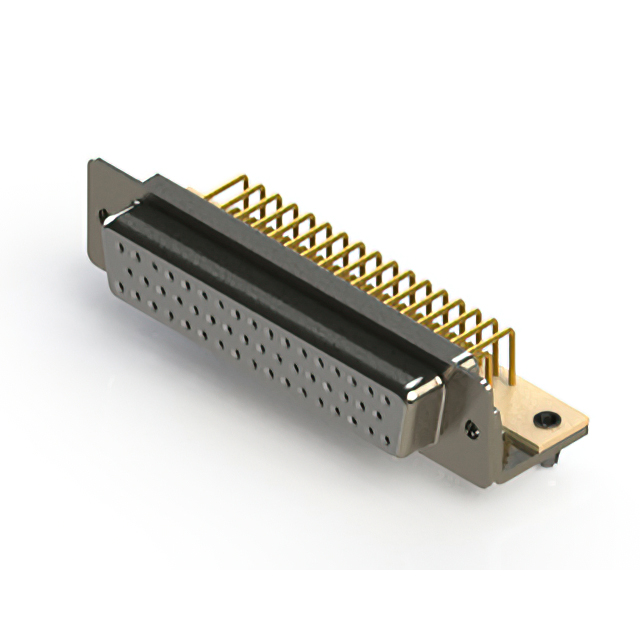

 EDAC Inc. | Copper Alloy | -55 C | 125 °C | White | Polyamide (PA6T) Nylon 6T | UL94 V-0 | Receptacle Female Sockets | Right Angle Through Hole | Gold | Board Lock Mounting Brackets Shielded | 5 | D DD | D-Sub | 9.4 mm | 0.37 in | Housing/Shell | Signal | 50 | 5 A | 3 | Solder | Nickel Plated Steel | 30 Áin | 0.76 Ám | 4-40 | |

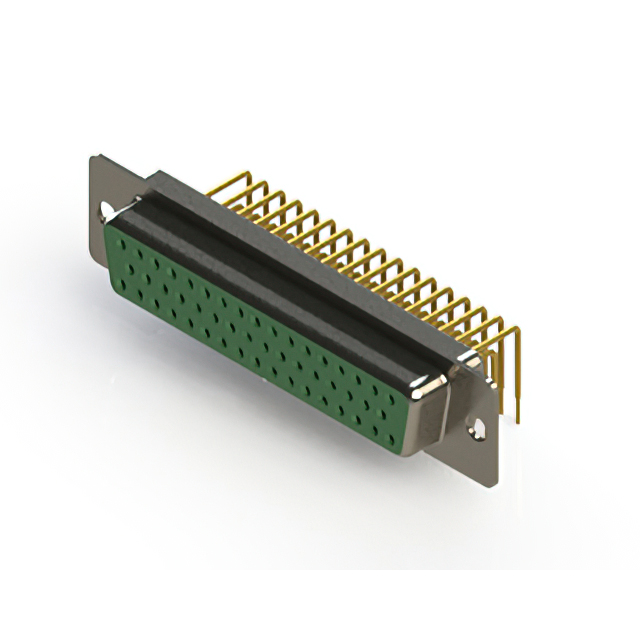

 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Green | Polyamide (PA6T) Nylon 6T | UL94 V-0 | Receptacle Female Sockets | Right Angle Through Hole | Gold | Shielded | 5 | D DD | D-Sub | 9.4 mm | 0.37 in | Housing/Shell (Unthreaded) | Signal | Flash | 50 | 5 A | 3 | Solder | ||||

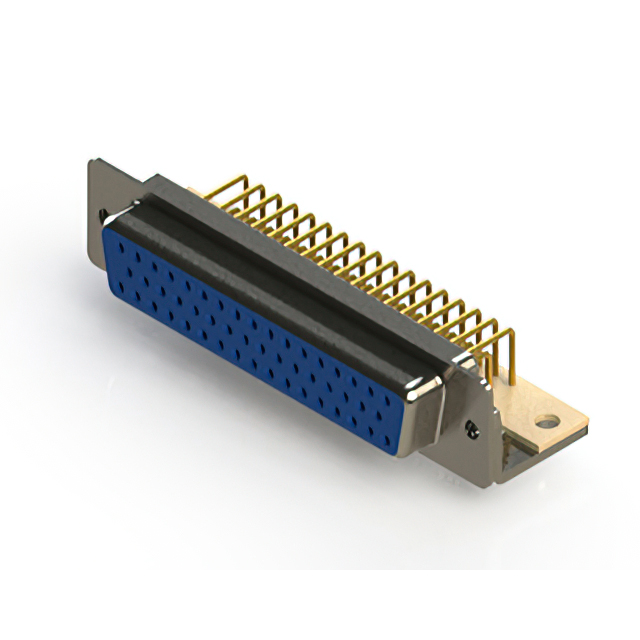

 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Blue | Polyamide (PA6T) Nylon 6T | UL94 V-0 | Receptacle Female Sockets | Right Angle Through Hole | Gold | Mounting Brackets Shielded | 5 | D DD | D-Sub | 9.4 mm | 0.37 in | 4-40 | Signal | 50 | 5 A | 3 | Solder | 30 Áin | 0.76 Ám | |||

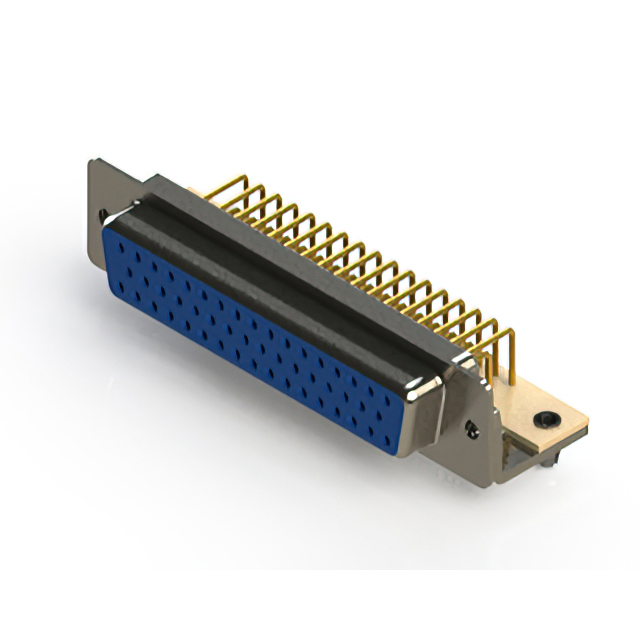

 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Blue | Polyamide (PA6T) Nylon 6T | UL94 V-0 | Receptacle Female Sockets | Right Angle Through Hole | Gold | Board Lock Mounting Brackets Shielded | 5 | D DD | D-Sub | 9.4 mm | 0.37 in | Housing/Shell | Signal | Flash | 50 | 5 A | 3 | Solder | Nickel Plated Steel | 4-40 | ||

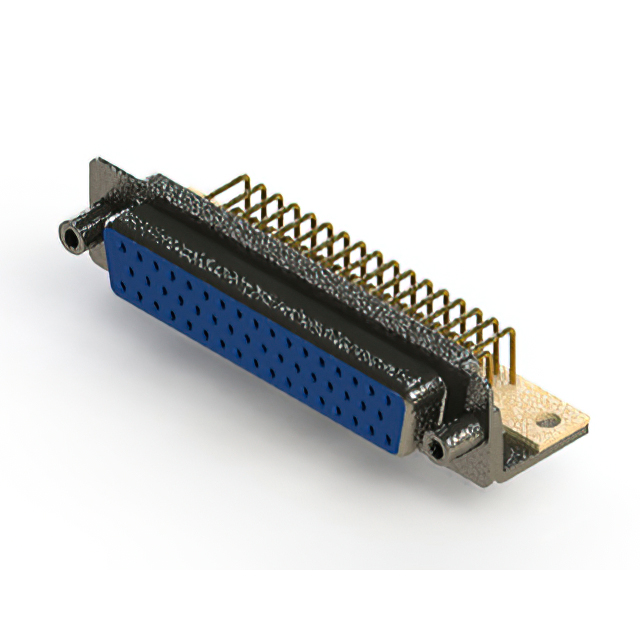

 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Blue | Polyamide (PA6T) Nylon 6T | UL94 V-0 | Receptacle Female Sockets | Right Angle Through Hole | Gold | Mounting Brackets Shielded | 5 | D DD | D-Sub | 9.4 mm | 0.37 in | Housing/Shell | Signal | 50 | 5 A | 3 | Solder | 15 µin | 0.38 µm | 4-40 | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | White | Polyamide (PA6T) Nylon 6T | UL94 V-0 | Receptacle Female Sockets | Right Angle Through Hole | Gold | Shielded | 5 | D DD | D-Sub | 9.4 mm | 0.37 in | Housing/Shell (Unthreaded) | Signal | Flash | 50 | 5 A | 3 | Solder | ||||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Green | Polyamide (PA6T) Nylon 6T | UL94 V-0 | Receptacle Female Sockets | Right Angle Through Hole | Gold | Shielded | 5 | D DD | D-Sub | 9.4 mm | 0.37 in | Housing/Shell (Unthreaded) | Signal | 50 | 5 A | 3 | Solder | Nickel Plated Steel | 15 µin | 0.38 µm |
