HAP02 Series
Manufacturer: Hasco Relays
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

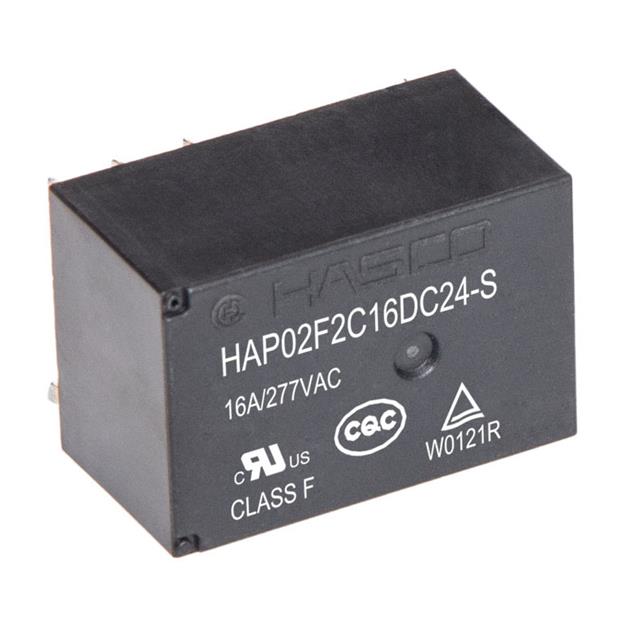

RELAY DPDT 16A 24V
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Coil Type | Contact Form | Coil Insulation | Must Release Voltage | Contact Rating (Current) | Operate Time | Contact Material | Must Operate Voltage | Termination Style | Switching Voltage | Coil Current | Seal Rating | Coil Voltage | Release Time | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hasco Relays | -40 °C | 105 °C | Non Latching | 2 2 Form C C DPDT Form | Class F | 2.4 V | 16 A | 10 ms | Silver Alloy | 18 VDC | PC Pin | 277 VAC | 33.3 mA | Fully Sealed | 24 VDC | 5 ms | Through Hole |
