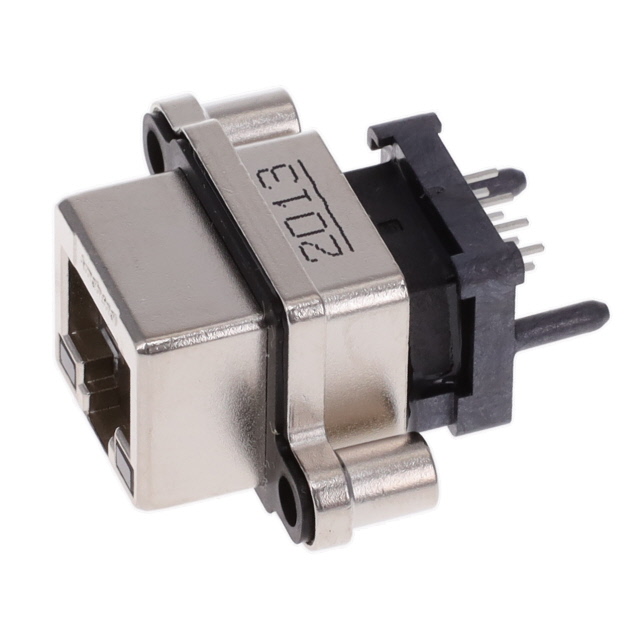

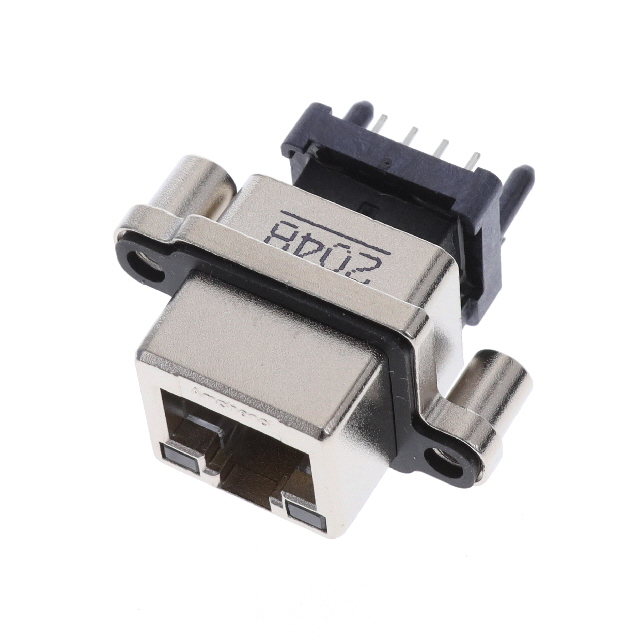

MRJ548 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K
CONN MOD JACK 8P8C VERT UNSHLD
| Part | Contact Finish Thickness | Contact Finish Thickness | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Features | Connector Type | Ingress Protection | Termination | Shielding | Contact Finish | Tab Direction | Number of Rows | Number of Positions/Contacts | Contact Material | Number of Ports | Orientation | LED Color | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | 50 µin | 1.27 µm | Polycarbonate (PC) | -40 C | 105 ░C | Board Guide | Jack | IP67 - Dust Tight Waterproof | Solder | Unshielded | Gold | User Selectable | 1 | 8p8c (RJ45 Ethernet) | Phosphor Bronze | 1 | Vertical | Green - Yellow | Flange (2 Hole) Panel Mount Through Hole |
Amphenol ICC (Commercial Products) | 50 µin | 1.27 µm | Polycarbonate (PC) | -40 C | 105 ░C | Board Guide | Jack | IP67 - Dust Tight Waterproof | Solder | Unshielded | Gold | User Selectable | 1 | 8p8c (RJ45 Ethernet) | Phosphor Bronze | 1 | Vertical | Does Not Contain LED | Flange (2 Hole) Panel Mount Through Hole |
 Amphenol ICC (Commercial Products) | 50 µin | 1.27 µm | Polycarbonate (PC) | -40 C | 105 ░C | Board Guide | Jack | IP67 - Dust Tight Waterproof | Solder | Unshielded | Gold | User Selectable | 1 | 8p8c (RJ45 Ethernet) | Phosphor Bronze | 1 | Vertical | Does Not Contain LED | Flange (2 Hole) Panel Mount Through Hole |
 Amphenol ICC (Commercial Products) | 50 µin | 1.27 µm | Polycarbonate (PC) | -40 C | 105 ░C | Board Guide | Jack | IP67 - Dust Tight Waterproof | Solder | Unshielded | Gold | User Selectable | 1 | 8p8c (RJ45 Ethernet) | Phosphor Bronze | 1 | Vertical | Does Not Contain LED | Flange (2 Hole) Panel Mount Through Hole |
 Amphenol ICC (Commercial Products) | 50 µin | 1.27 µm | Polycarbonate (PC) | -40 C | 105 ░C | Board Guide | Jack | IP67 - Dust Tight Waterproof | Solder | Unshielded | Gold | User Selectable | 1 | 8p8c (RJ45 Ethernet) | Phosphor Bronze | 1 | Vertical | Yellow - Green | Flange (2 Hole) Panel Mount Through Hole |
Amphenol ICC (Commercial Products) | 50 µin | 1.27 µm | Polycarbonate (PC) | -40 C | 105 ░C | Board Guide | Jack | IP67 - Dust Tight Waterproof | Solder | Unshielded | Gold | User Selectable | 1 | 8p8c (RJ45 Ethernet) | Phosphor Bronze | 1 | Vertical | Does Not Contain LED | Flange (2 Hole) Panel Mount Through Hole |
Amphenol ICC (Commercial Products) | 50 µin | 1.27 µm | Polycarbonate (PC) | -40 C | 105 ░C | Board Guide | Jack | IP67 - Dust Tight Waterproof | Solder | Unshielded | Gold | User Selectable | 1 | 8p8c (RJ45 Ethernet) | Phosphor Bronze | 1 | Vertical | Green - Green | Flange (2 Hole) Panel Mount Through Hole |
