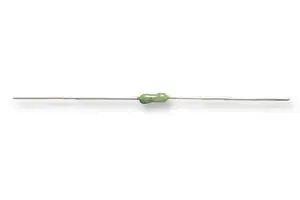

FUSE 125V PICO II FA RoHS 5A
| Part | Response Time | Approval Agency | Fuse Type | Melting I²t | Voltage Rating - AC | Mounting Type | Package / Case | Breaking Capacity @ Rated Voltage | Current Rating (Amps) | Voltage Rating - DC | Operating Temperature [Min] | Operating Temperature [Max] | DC Cold Resistance | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | Fast Blow | CCC CSA cURus PSE TUV | Board Mount | 4.14 | 125 V | Through Hole | Axial | 50 A 300 A | 5 A | 125 VDC | -55 °C | 125 °C | 0.0158 Ohms | 0.11 in | 0.28 in | 7.11 mm | 2.8 mm |
Key Features
• Very fast-acting
• Small size
• Wide current rating range (62 mA to 15 A)
• RoHS compliant
• Halogen-free available
• Wide operating temperature range
• Low temperature rerating
Description
AI
The PICO® II Very Fast-Acting Fuse is designed to meet an extensive array of performance characteristics in a space-saving subminiature package.
