FHLBBB Series

Catalog

SWITCH PB SPST 2A 48V

Part	Mechanical Life	Electrical Life	Ingress Protection	Current Rating (Amps)	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Actuator Type	Illumination Type, Color	Color - Actuator/Cap	Voltage Rating - DC	Termination Style	Panel Cutout Dimensions [diameter]	Type	Mounting Type	Circuit	Actuator Marking

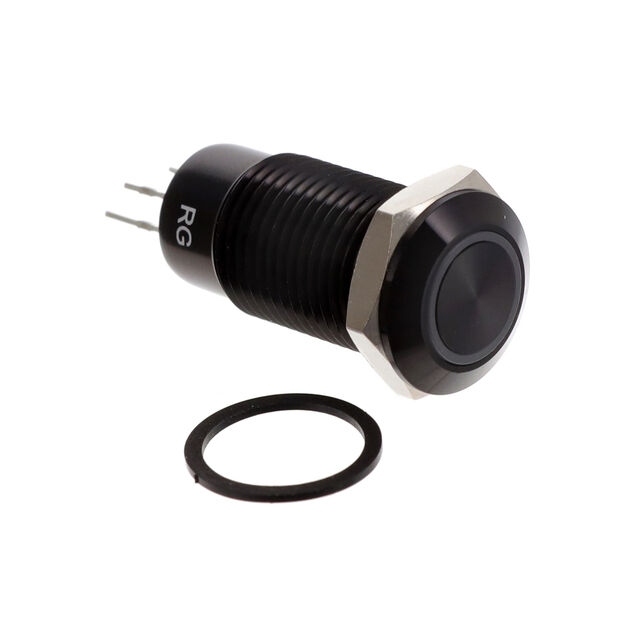

CIT Relay and Switch FHLBBBRGN	100000 Cycles	50000 Cycles	IP60 IP67 - Dust Tight Waterproof	2 A	On-Off	55 °C	-25 °C	2.1 VDC 3.3 VDC	Button Flush Round	Green/Red LED	Black	48 V	Solder Lug	12 mm	Anti-Vandal Illuminated	Panel Mount Front	SPST	No Marking
CIT Relay and Switch FHLBBBBN	100000 Cycles	50000 Cycles	IP60 IP67 - Dust Tight Waterproof	2 A	On-Off	55 °C	-25 °C	3.3 VDC	Button Flush Round	Blue LED	Black	48 V	Solder Lug	12 mm	Anti-Vandal Illuminated	Panel Mount Front	SPST	No Marking
