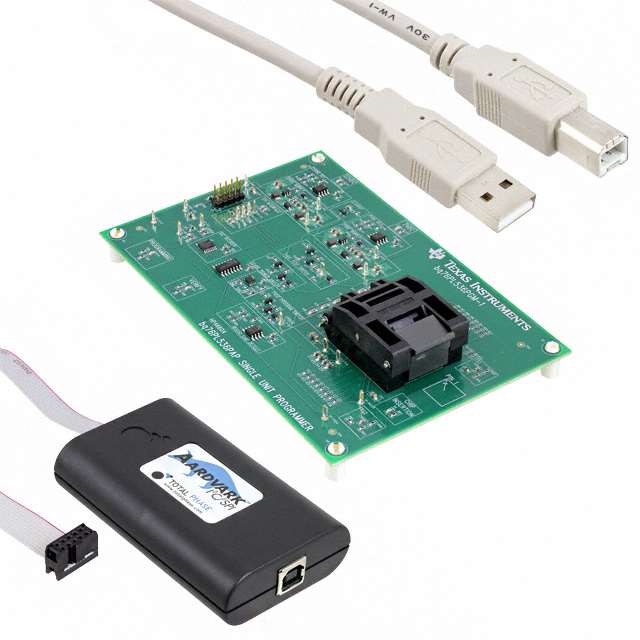

BQ76PL536A-Q1 Series
3 to 6 series cell lithium-ion battery monitor and secondary protection for automotive battery packs
Manufacturer: Texas Instruments
Catalog
3 to 6 series cell lithium-ion battery monitor and secondary protection for automotive battery packs
Key Features
• Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 2: –40°C to +105°C Ambient Operating Temperature RangeDevice HBM Classification Level 2Device CDM Classification Level C4B3-to-6 Series Cell Support, All ChemistriesHot-PluggableHigh-Speed Serial Peripheral Interface (SPI) for Data CommunicationsStackable Vertical InterfaceIsolation Components Not Required Between DevicesHigh-Accuracy Analog-to-Digital Converter (ADC):±1 mV Typical Accuracy14-Bit Resolution, 6-µs Conversion TimeNine ADC InputsDedicated Pins for Synchronizing MeasurementsConfiguration Data Stored in Error Check/Correct (ECC)-One-Time-Programmable (OTP) RegistersBuilt-In Comparators (Secondary Protector) for:Overvoltage and Undervoltage ProtectionOvertemperature ProtectionProgrammable Thresholds and Delay TimesDedicated Fault SignalsCell Balancing Control Outputs With Safety TimeoutBalance Current Set by External ComponentsSupply Voltage Range from 7.2 V to 27 V Continuous and 36-V PeakLow Power:Typical 12-µA Sleep, 45-µA IdleIntegrated Precision 5-V, 3-mA LDOQualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 2: –40°C to +105°C Ambient Operating Temperature RangeDevice HBM Classification Level 2Device CDM Classification Level C4B3-to-6 Series Cell Support, All ChemistriesHot-PluggableHigh-Speed Serial Peripheral Interface (SPI) for Data CommunicationsStackable Vertical InterfaceIsolation Components Not Required Between DevicesHigh-Accuracy Analog-to-Digital Converter (ADC):±1 mV Typical Accuracy14-Bit Resolution, 6-µs Conversion TimeNine ADC InputsDedicated Pins for Synchronizing MeasurementsConfiguration Data Stored in Error Check/Correct (ECC)-One-Time-Programmable (OTP) RegistersBuilt-In Comparators (Secondary Protector) for:Overvoltage and Undervoltage ProtectionOvertemperature ProtectionProgrammable Thresholds and Delay TimesDedicated Fault SignalsCell Balancing Control Outputs With Safety TimeoutBalance Current Set by External ComponentsSupply Voltage Range from 7.2 V to 27 V Continuous and 36-V PeakLow Power:Typical 12-µA Sleep, 45-µA IdleIntegrated Precision 5-V, 3-mA LDO
Description
AI
The bq76PL536-Q1 is a stackable three to six series cell lithium-ion battery pack protector and analog front end (AFE) that incorporates a precision analog-to-digital converter (ADC); independent cell voltage and temperature protection; cell balancing, and a precision 5-V regulator to power user circuitry.
The bq76PL536-Q1 integrates a voltage translation and precision analog-to-digital converter system to measure battery cell voltages with high accuracy and speed.
The bq76PL536-Q1 provides full protection (secondary protection) for overvoltage, undervoltage, and overtemperature conditions. When safety thresholds are exceeded, the bq76PL536-Q1 sets the FAULT output. No external components are needed to configure or enable the protection features.
Cell voltage and temperature protection functions are independent of the ADC system. Programmable protection thresholds and detection delay times are stored in Error Check/Correct (ECC) OTP EPROM, which increases the flexibility and reliability of the battery management system.
The bq76PL536-Q1 is intended to be used with a host controller to maximize the functionality of the battery management system. However, the protection functions do not require a host controller.
The bq76PL536Q1 can be stacked vertically to monitor up to 192 cells without additional isolation components between ICs. A high-speed serial peripheral interface (SPI) bus operates between each bq76PL536-Q1 to provide reliable communications through a high-voltage battery cell stack.
The bq76PL536-Q1 is a stackable three to six series cell lithium-ion battery pack protector and analog front end (AFE) that incorporates a precision analog-to-digital converter (ADC); independent cell voltage and temperature protection; cell balancing, and a precision 5-V regulator to power user circuitry.
The bq76PL536-Q1 integrates a voltage translation and precision analog-to-digital converter system to measure battery cell voltages with high accuracy and speed.
The bq76PL536-Q1 provides full protection (secondary protection) for overvoltage, undervoltage, and overtemperature conditions. When safety thresholds are exceeded, the bq76PL536-Q1 sets the FAULT output. No external components are needed to configure or enable the protection features.
Cell voltage and temperature protection functions are independent of the ADC system. Programmable protection thresholds and detection delay times are stored in Error Check/Correct (ECC) OTP EPROM, which increases the flexibility and reliability of the battery management system.
The bq76PL536-Q1 is intended to be used with a host controller to maximize the functionality of the battery management system. However, the protection functions do not require a host controller.
The bq76PL536Q1 can be stacked vertically to monitor up to 192 cells without additional isolation components between ICs. A high-speed serial peripheral interface (SPI) bus operates between each bq76PL536-Q1 to provide reliable communications through a high-voltage battery cell stack.
