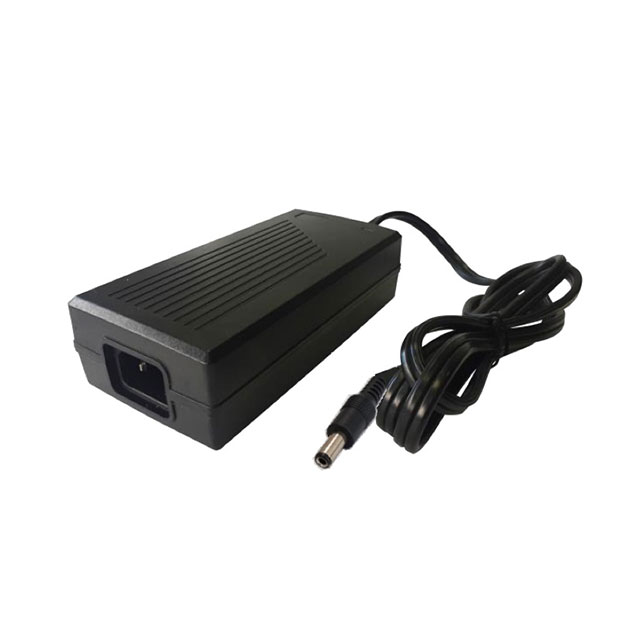

EDP65 Series

Catalog

AC/DC DESKTOP ADAPTER 15V 65W

Part	Approval Agency	Region Utilized	Cord Length	Cord Length	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output (Max) [Max]	Standard Number	Efficiency	Polarization	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Input Connector	Form	No Load Power Consumption	Output Connector [diameter]	Output Connector [x]	Output Connector	Voltage - Output	Applications	Power (Watts)	Input Type
Astrodyne TDI EDP65-15-MB2-100	CB CE cURus FCC UL	International	32 in	812.8 mm	264 VAC	90 VAC	4.3 A	60601-1	Level VI	Positive Center	-25 °C	70 °C	65.8 mm	2.59 in	37.1 mm	135.6 mm	5.34 in	1.46 in	IEC 320-C18	Desktop (Class II)	210 mW	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	15 V	Medical	65 W	Cord (Sold Separately)
Astrodyne TDI EDP65-36-MB2-100	CB CE cURus FCC UL	International	48 in	1.22 m	264 VAC	90 VAC	1.8 A	60601-1	Level VI	Positive Center	-25 °C	70 °C	65.8 mm	2.59 in	37.1 mm	135.6 mm	5.34 in	1.46 in	IEC 320-C18	Desktop (Class II)	210 mW	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	36 V	Medical	65 W	Cord (Sold Separately)
Astrodyne TDI EDP65-24-MB2-100	CB CE cURus FCC UL	International	48 in	1.22 m	264 VAC	90 VAC	2.7 A	60601-1	Level VI	Positive Center	-25 °C	70 °C	65.8 mm	2.59 in	37.1 mm	135.6 mm	5.34 in	1.46 in	IEC 320-C18	Desktop (Class II)	210 mW	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	24 V	Medical	65 W	Cord (Sold Separately)
Astrodyne TDI EDP65-24-MB1-100	CB CE cURus FCC UL	International	48 in	1.22 m	264 VAC	90 VAC	2.7 A	60601-1	Level VI	Positive Center	-25 °C	70 °C	65.8 mm	2.59 in	37.1 mm	135.6 mm	5.34 in	1.46 in	IEC 320-C14	Desktop (Class I)	210 mW	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	24 V	Medical	65 W	Cord (Sold Separately)
Astrodyne TDI EDP65-48-MB2-100	CB CE cURus FCC UL	International	48 in	1.22 m	264 VAC	90 VAC	1.3 A	60601-1	Level VI	Positive Center	-25 °C	70 °C	65.8 mm	2.59 in	37.1 mm	135.6 mm	5.34 in	1.46 in	IEC 320-C18	Desktop (Class II)	210 mW	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	48 V	Medical	62 W	Cord (Sold Separately)
Astrodyne TDI EDP65-18-MB1-100	CB CE cURus FCC UL	International	48 in	1.22 m	264 VAC	90 VAC	3.6 A	60601-1	Level VI	Positive Center	-25 °C	70 °C	65.8 mm	2.59 in	37.1 mm	135.6 mm	5.34 in	1.46 in	IEC 320-C14	Desktop (Class I)	210 mW	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	18 V	Medical	65 W	Cord (Sold Separately)
Astrodyne TDI EDP65-12-MB2-100	CB CE cURus FCC UL	International	32 in	812.8 mm	264 VAC	90 VAC	5.4 A	60601-1	Level VI	Positive Center	-25 °C	70 °C	65.8 mm	2.59 in	37.1 mm	135.6 mm	5.34 in	1.46 in	IEC 320-C18	Desktop (Class II)	210 mW	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	12 V	Medical	65 W	Cord (Sold Separately)
Astrodyne TDI EDP65-19-MB2-100	CB CE cURus FCC UL	International	48 in	1.22 m	264 VAC	90 VAC	3.4 A	60601-1	Level VI	Positive Center	-25 °C	70 °C	65.8 mm	2.59 in	37.1 mm	135.6 mm	5.34 in	1.46 in	IEC 320-C18	Desktop (Class II)	210 mW	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	19 V	Medical	65 W	Cord (Sold Separately)
Astrodyne TDI EDP65-18-MB2-100	CB CE cURus FCC UL	International	48 in	1.22 m	264 VAC	90 VAC	3.6 A	60601-1	Level VI	Positive Center	-25 °C	70 °C	65.8 mm	2.59 in	37.1 mm	135.6 mm	5.34 in	1.46 in	IEC 320-C18	Desktop (Class II)	210 mW	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	18 V	Medical	65 W	Cord (Sold Separately)
Astrodyne TDI EDP65-12-MB1-100	CB CE cURus FCC UL	International	32 in	812.8 mm	264 VAC	90 VAC	5.4 A	60601-1	Level VI	Positive Center	-25 °C	70 °C	65.8 mm	2.59 in	37.1 mm	135.6 mm	5.34 in	1.46 in	IEC 320-C14	Desktop (Class I)	210 mW	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	12 V	Medical	65 W	Cord (Sold Separately)
