MPU-32-01-01 Series

MOTOR PROTECTION UNIT 1A TIA-485

Catalog

MOTOR PROTECTION UNIT 1A TIA-485

Part	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Function	Mounting Type
LITTELFUSE MPU-32-01-01	60 °C	-40 C	Screw Terminal	265 VAC 275 VDC	65 VAC 80 VDC	Multiple	Panel Mount

Catalog

MOTOR PROTECTION UNIT 1A TIA-485

Description

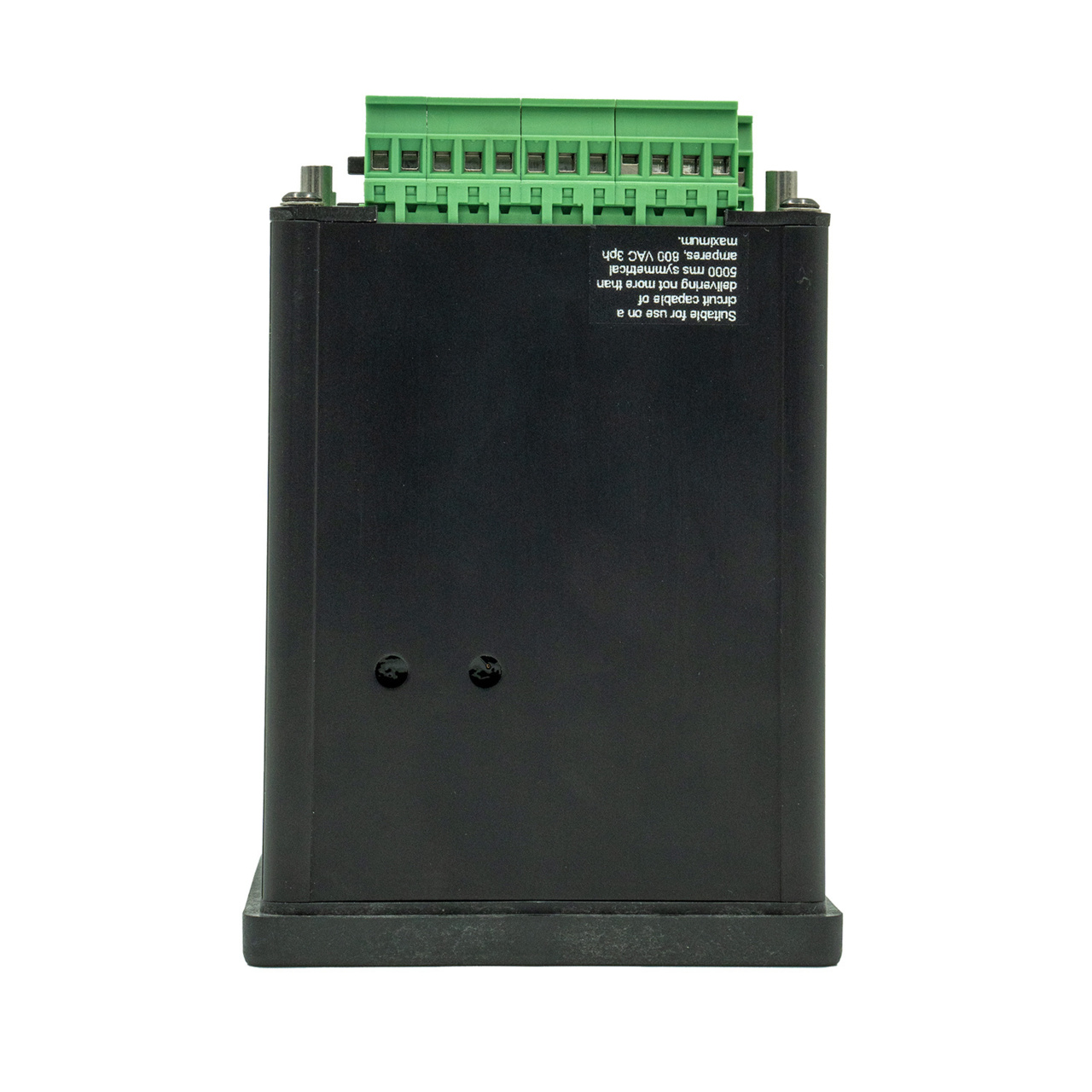

The MPU-32-01-01 is a motor protection unit with a supply voltage between 65–265 V ac and 80–275 V dc. This unit provides current and temperature-based protection with communication via RS/TIA-232-RS/TIA-485.
