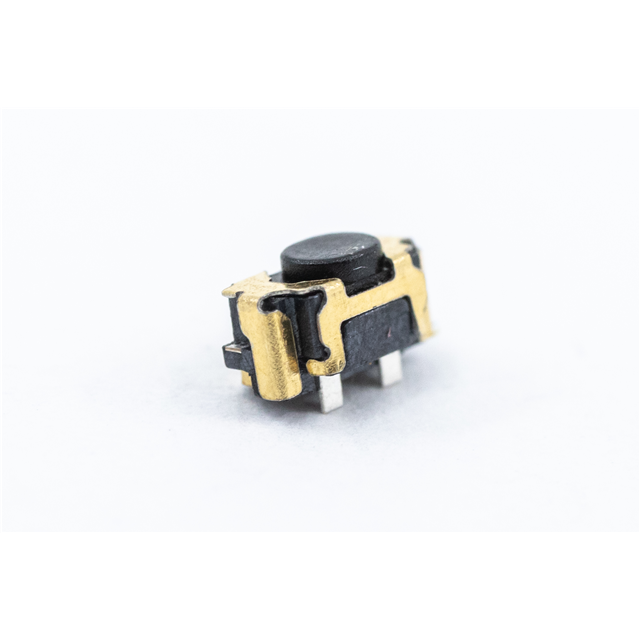

TL4115 Series
Manufacturer: E-Switch
Beta
⌘K
TACTILE SWITCHES LOW TRAVEL TACTILE SWITCH ACUATION FORCE 220GF
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Contact Rating @ Voltage | Circuit | Actuator Type | Actuator Orientation | Actuator Height off PCB, Vertical [z] | Operating Force | Mounting Type | Outline [y] | Outline [x] | Switch Function | Illumination | Mechanical Life | Switch Travel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 85 °C | -30 ░C | SMD (SMT) Tab | 0.05 A 12 VDC | SPST-NO | Standard | Top Actuated | 2.6 mm | 220 gf | Surface Mount | 2.2 mm | 4.5 mm | On-Mom | Non-Illuminated | ||
 E-Switch | 85 °C | -30 ░C | SMD (SMT) Tab | 0.05 A 12 VDC | SPST-NO | Standard | Top Actuated | 2.6 mm | 160 gf | Surface Mount | 2.2 mm | 4.5 mm | On-Mom | Non-Illuminated | 600000 Cycles | 0.15 mm |
