315-052 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 52POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Pitch	Pitch	Contact Material	Mounting Type	Number of Rows [custom]	Number of Positions	Read Out	Gender	Contact Type	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Contact Finish	Features	Number of Positions/Bay/Row	Color	Card Thickness [Max]	Card Thickness [Min]	Termination
EDAC Inc. 315-052-556-202	2	Polyester Thermoplastic	3.96 mm	0.156 in	Copper Alloy	Board Edge Straddle Mount	2	52	Dual	Female	Semi Bellows	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	0.25 Ám	10 Áin	-40 C	105 ░C	Non Specified - Dual Edge	Gold	Card Extender	26	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder
EDAC Inc. 315-052-555-201	2	Polyester Thermoplastic	3.96 mm	0.156 in	Copper Alloy	Board Edge Straddle Mount	2	52	Dual	Female	Semi Bellows				0.25 Ám	10 Áin	-40 C	105 ░C	Non Specified - Dual Edge	Gold	Card Extender	26	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder
EDAC Inc. 315-052-555-202	2	Polyester Thermoplastic	3.96 mm	0.156 in	Copper Alloy	Board Edge Straddle Mount	2	52	Dual	Female	Semi Bellows	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	0.25 Ám	10 Áin	-40 C	105 ░C	Non Specified - Dual Edge	Gold	Card Extender	26	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder
EDAC Inc. 315-052-520-204	2	Polyester Thermoplastic	3.96 mm	0.156 in	Copper Alloy	Panel Mount Through Hole	2	52	Dual	Female	Semi Bellows	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "	0.25 Ám	10 Áin	-40 C	105 ░C	Non Specified - Dual Edge	Gold		26	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder
EDAC Inc. 315-052-521-278	2	Polyester Thermoplastic	3.96 mm	0.156 in	Copper Alloy	Panel Mount Through Hole	2	52	Dual	Female	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening			0.25 Ám	10 Áin	-40 C	105 ░C	Non Specified - Dual Edge	Gold		26	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder
EDAC Inc. 315-052-555-278	2	Polyester Thermoplastic	3.96 mm	0.156 in	Copper Alloy	Board Edge Straddle Mount	2	52	Dual	Female	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening			0.25 Ám	10 Áin	-40 C	105 ░C	Non Specified - Dual Edge	Gold	Card Extender Card Guides	26	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder
EDAC Inc. 315-052-556-207	2	Polyester Thermoplastic	3.96 mm	0.156 in	Copper Alloy	Board Edge Straddle Mount	2	52	Dual	Female	Semi Bellows	Flush Mount M3 Threaded Insert Top Opening			0.25 Ám	10 Áin	-40 C	105 ░C	Non Specified - Dual Edge	Gold	Card Extender	26	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder
EDAC Inc. 315-052-521-258	2	Polyester Thermoplastic	3.96 mm	0.156 in	Copper Alloy	Panel Mount Through Hole	2	52	Dual	Female	Semi Bellows	4-40 Flush Mount Threaded Insert Top Opening			0.25 Ám	10 Áin	-40 C	105 ░C	Non Specified - Dual Edge	Gold		26	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder

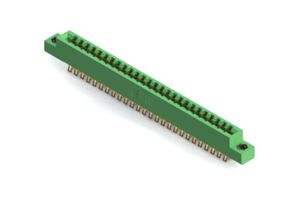

EDAC Inc. 315-052-555-207	2	Polyester Thermoplastic	3.96 mm	0.156 in	Copper Alloy	Board Edge Straddle Mount	2	52	Dual	Female	Semi Bellows	Flush Mount M3 Threaded Insert Top Opening			0.25 Ám	10 Áin	-40 C	105 ░C	Non Specified - Dual Edge	Gold	Card Extender	26	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder
EDAC Inc. 315-052-500-201	2	Polyester Thermoplastic	3.96 mm	0.156 in	Copper Alloy	Free Hanging (In-Line)	2	52	Dual	Female	Semi Bellows				0.25 Ám	10 Áin	-40 C	105 ░C	Non Specified - Dual Edge	Gold		26	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	Solder Eyelet(s)
