ELYI-K72 Series
Manufacturer: Everlight Electronics Co Ltd
Beta
⌘K

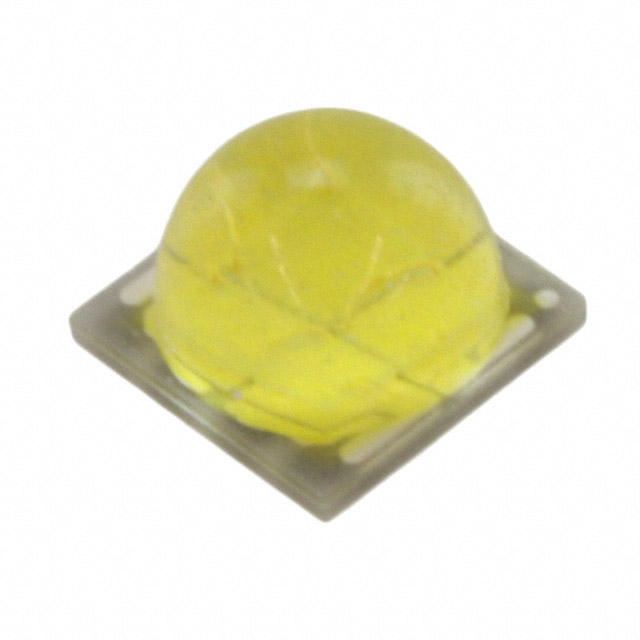

LED YI COOL WHT 6500K 70CRI 8SMD
| Part | Thermal Resistance of Package | Flux @ 25°C, Current - Test [Max] | Flux @ 25°C, Current - Test [Min] | CCT (K) [Min] | CCT (K) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Color | Viewing Angle | Package / Case | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Current - Max [Max] | CRI (Color Rendering Index) | Lumens/Watt @ Current - Test | Mounting Type | Flux @ 85°C, Current - Test | Voltage - Forward (Vf) (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Everlight Electronics Co Ltd | 6 °C/W | 400 lm | 375 lm | 6020 K | 7050 K | 0.236 " | 6 mm | 0.236 in | 6 mm | Cool White | 105 ° | 2424 (6060 Metric) | 4.43 mm | 0.174 in | 1 A | 70 | 77 lm/W | Surface Mount | 356 lm | 7 V |
