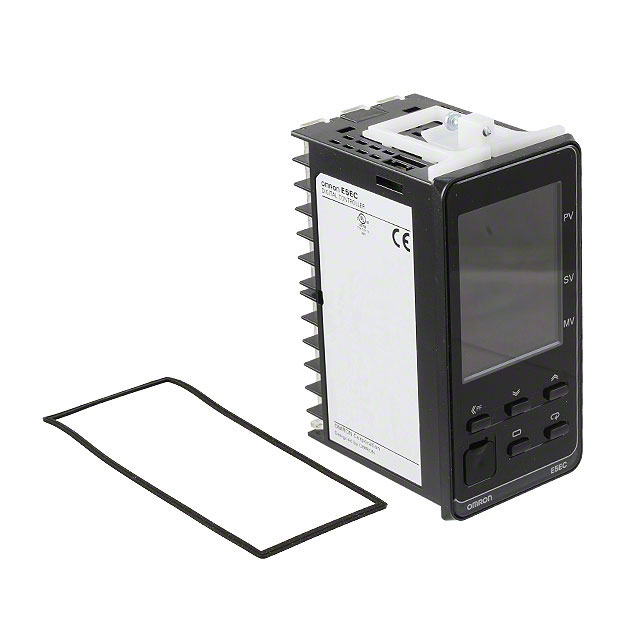

E5EC-CQ Series

Manufacturer: Omron Automation and Safety

Catalog

CONTROL TEMP/PROCESS 100-240V

Part	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Input Range [Min]	Input Range [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Termination Style	Number of Characters Per Row [custom]	Number of Characters Per Row [custom]	Number of Characters Per Row [custom]	Type	Ingress Protection	Display Type	Output Type	Mounting Type	Control Method	Display Characters - Height	Display Characters - Height	Features	Communications
Omron Automation and Safety E5EC-CQ4A5M-000	210.01 g	0.463 lb	55 °C	-10 °C	45 mm	92 mm	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	240 VAC	100 VAC	Screw Terminal	4	4	4	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	IP66 - Dust Tight Water Resistant	Backlight Tri Color Characters	Analog Relay (4) Voltage (External SSR)	Panel Mount	On/Off Proportional (PID)	0.307 in 0.433 " 0.71 in	7.8 mm 11 mm 18 mm
Omron Automation and Safety E5EC-CQ4A5M-009	210.01 g	0.463 lb	55 °C	-10 °C	45 mm	92 mm	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	240 VAC	100 VAC	Screw Terminal	4	4	4	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	IP66 - Dust Tight Water Resistant	Backlight Tri Color Characters	Analog Relay (4) Voltage (External SSR)	Panel Mount	On/Off Proportional (PID)	0.307 in 0.433 " 0.71 in	7.8 mm 11 mm 18 mm	Event Input Heater Fault Detection	RS-485 (CompoWay/F Modbus)
Omron Automation and Safety E5EC-CQ4A5M-010	210.01 g	0.463 lb	55 °C	-10 °C	45 mm	92 mm	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	240 VAC	100 VAC	Screw Terminal	4	4	4	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	IP66 - Dust Tight Water Resistant	Backlight Tri Color Characters	Analog Relay (4) Voltage (External SSR)	Panel Mount	On/Off Proportional (PID)	0.307 in 0.433 " 0.71 in	7.8 mm 11 mm 18 mm	Event Input Heater Fault Detection
Omron Automation and Safety E5EC-CQ4A5M-011	210.01 g	0.463 lb	55 °C	-10 °C	45 mm	92 mm	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	240 VAC	100 VAC	Screw Terminal	4	4	4	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	IP66 - Dust Tight Water Resistant	Backlight Tri Color Characters	Analog Relay (4) Voltage (External SSR)	Panel Mount	On/Off Proportional (PID)	0.307 in 0.433 " 0.71 in	7.8 mm 11 mm 18 mm	Event Input Heater Fault Detection
