MDT420 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

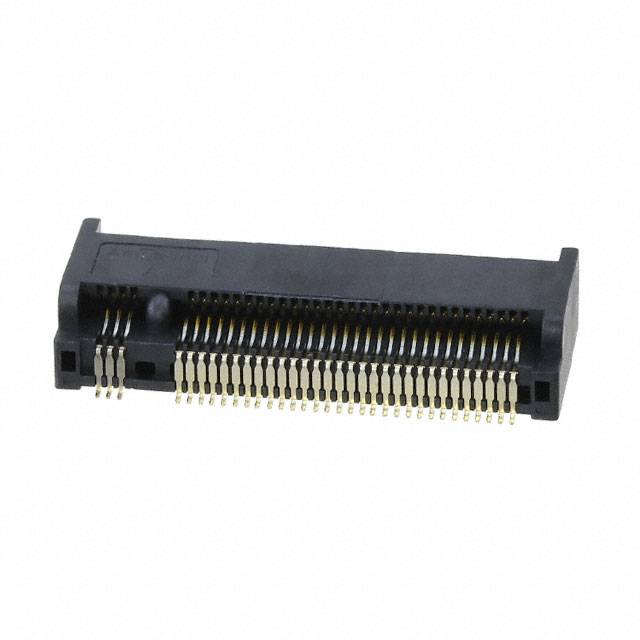

CONN M.2 FMALE 67POS 0.020 GOLD
| Part | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Color | Mounting Type | Read Out | Number of Positions | Termination | Pitch | Pitch | Contact Finish | Gender | Contact Finish Thickness | Contact Finish Thickness | Card Type | Number of Rows [custom] | Contact Material | Features | Contact Finish Thickness | Card Thickness | Card Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Liquid Crystal Polymer (LCP) | 80 °C | -40 C | Black | Right Angle Surface Mount | Dual | 67 | Solder | 0.02 " | 0.5 mm | Gold | Female | 30 Áin | 0.76 Ám | M.2 (NGFF) Mini Card | 2 | Copper Alloy | Board Lock Keyed A | |||
Amphenol ICC (FCI) | Liquid Crystal Polymer (LCP) | 80 °C | -40 C | Black | Right Angle Surface Mount | Dual | 67 | Solder | 0.02 " | 0.5 mm | Gold | Female | 15 µin | 0.38 µm | M.2 (NGFF) Mini Card | 2 | Copper Alloy | Board Lock Keyed A | |||
Amphenol ICC (FCI) | Liquid Crystal Polymer (LCP) | 80 °C | -40 C | Black | Right Angle Surface Mount | Dual | 67 | Solder | 0.02 " | 0.5 mm | Gold | Female | M.2 (NGFF) Mini Card | 2 | Copper Alloy | Board Lock Keyed B | Flash | ||||

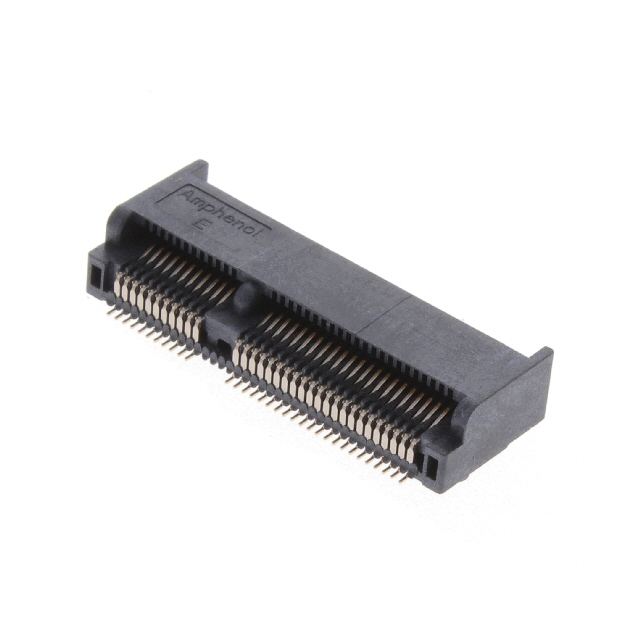

Amphenol ICC (FCI) | Liquid Crystal Polymer (LCP) | 80 °C | -40 C | Black | Right Angle Surface Mount | Dual | 67 | Solder | 0.02 " | 0.5 mm | Gold | Female | 30 Áin | 0.76 Ám | M.2 (NGFF) Mini Card | 2 | Copper Alloy | Board Lock Keyed E | |||
 Amphenol ICC (FCI) | Liquid Crystal Polymer (LCP) | 80 °C | -40 C | Black | Right Angle Surface Mount | Dual | 67 | Solder | 0.02 " | 0.5 mm | Gold | Female | 30 Áin | 0.76 Ám | M.2 (NGFF) Mini Card | 2 | Copper Alloy | Board Guide Solder Retention | 0.031 in | 0.79 mm | |
Amphenol ICC (FCI) | Liquid Crystal Polymer (LCP) | 80 °C | -40 C | Black | Right Angle Surface Mount | Dual | 67 | Solder | 0.02 " | 0.5 mm | Gold | Female | M.2 (NGFF) Mini Card | 2 | Copper Alloy | Board Lock Keyed A | Flash | ||||
Amphenol ICC (FCI) | Liquid Crystal Polymer (LCP) | 80 °C | -40 C | Black | Right Angle Surface Mount | Dual | 67 | Solder | 0.02 " | 0.5 mm | Gold | Female | 15 µin | 0.38 µm | M.2 (NGFF) Mini Card | 2 | Copper Alloy | Board Lock Keyed B | |||
 Amphenol ICC (FCI) | Liquid Crystal Polymer (LCP) | 80 °C | -40 C | Black | Right Angle Surface Mount | Dual | 67 | Solder | 0.02 " | 0.5 mm | Gold | Female | M.2 (NGFF) Mini Card | 2 | Copper Alloy | Board Lock Keyed E | Flash | ||||

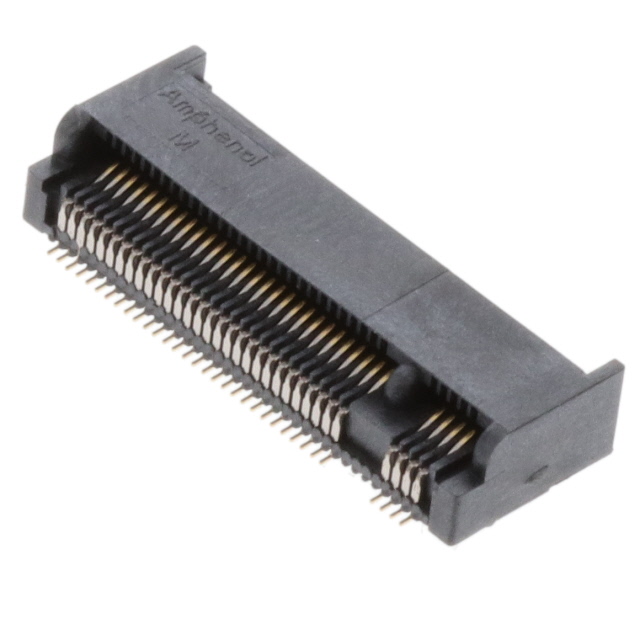

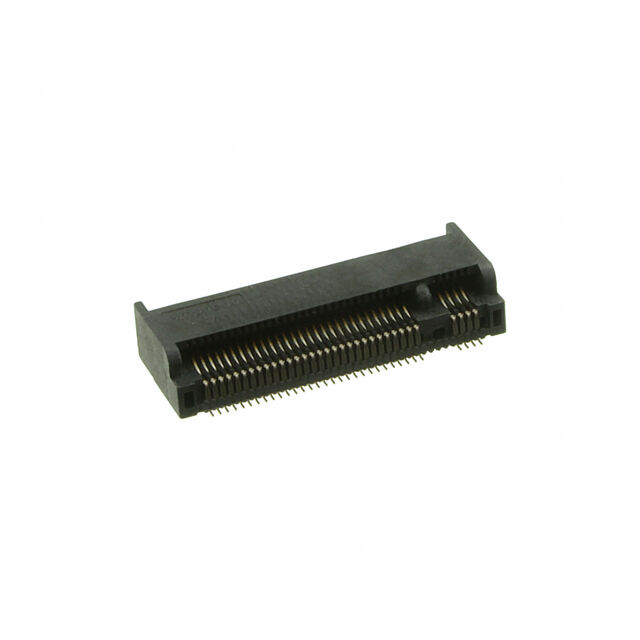

Amphenol ICC (FCI) | Liquid Crystal Polymer (LCP) | 80 °C | -40 C | Black | Right Angle Surface Mount | Dual | 67 | Solder | 0.02 " | 0.5 mm | Gold | Female | M.2 (NGFF) Mini Card | 2 | Copper Alloy | Board Lock Keyed M | Flash | ||||
 Amphenol ICC (FCI) | Liquid Crystal Polymer (LCP) | 80 °C | -40 C | Black | Right Angle Surface Mount | Dual | 67 | Solder | 0.02 " | 0.5 mm | Gold | Female | 30 Áin | 0.76 Ám | M.2 (NGFF) Mini Card | 2 | Copper Alloy | Board Lock Keyed M |
